Muscle Rack CR3618 Assembly Instructions

Assembly Instructions for CR3618 & CR4824 Assembly Instructions for CR3618 & CR4824

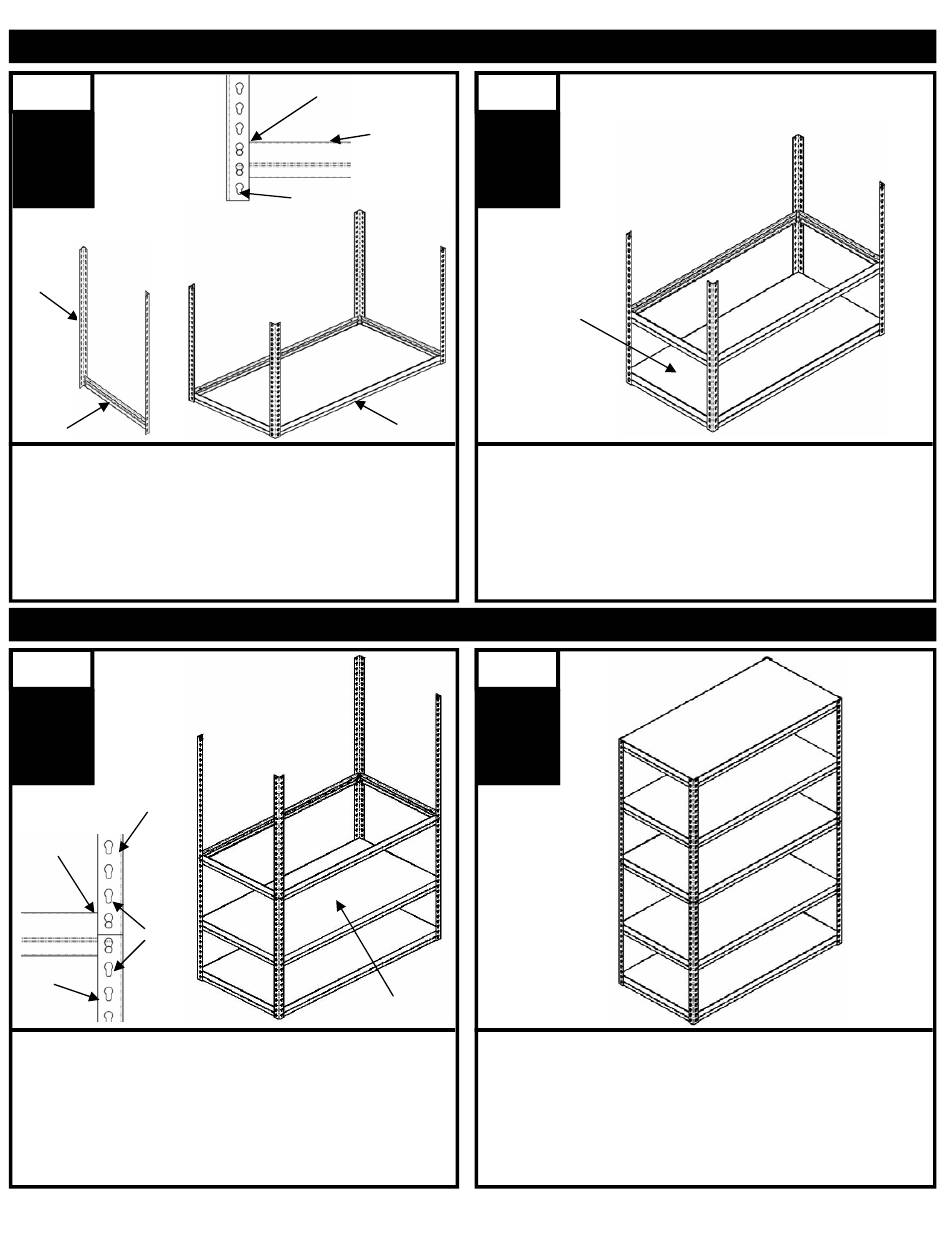

Assembly Instructions for CR3618 & CR4824
Figure B
Step
Note:
1
Post are
directional.
The slot
must point
down.
Figure A
Post
Brace
Assemble two (2) post with one (1) brace. Skipping one slot
from the bottom of the post (see figure A), place the rivets
into post with the slot pointing down, and with the shelf ledge
of the brace facing up (see figure B). Tap lightly to seat riv-
ets. Repeat with two (2) post and one (1) brace. Assemble
the two (2) post units with two (2) beams (see figure C). Skip
one hole from the bottom of post, tap lightly to seat rivets.
IMPORTANT NOTE : Make sure all rivets are fully seated into the post slots. IMPORTANT NOTE : Make sure all rivets are fully seated into the post slots.
IMPORTANT NOTE : Make sure all rivets are fully seated into the post slots.
Step
Note:
Post are directional. The slot
must point down.
3
Top
Figure D
Post
Tap Lightly
Slot
Down
Bottom
Post
Add a woodboard shelf to the previously built level, then
assemble the top post to the bottom post by using two (2)
beams and two (2) braces. One (1) rivet from each beam
and brace must be placed in the top hole of the bottom
post, and the bottom hole of the top post (see figure D).
After all beams and braces are in place, tap lightly to
properly seat the rivets.
Tap Lightly
Shelf Ledge
Post Slot Points Down
Figure C
Figure C
Beam
Woodboard Shelf
Step
2
Woodboard Shelf
Start by adding a woodboard shelf to the level previously
built, then continue working by adding the second level
using two (2) beams and two (2) braces in the post slots
of your desired location. Again place the rivets of the
beams and braces into the post slots with the shelf
ledge facing up and tap lightly to seat the rivets.
Step
4
Add a woodboard shelf to the previously built level, then
continue by adding the fourth and fifth level to the unit
using two (2) beams and two (2) braces per level. Tap
lightly to properly seat the rivets and add the final wood-
board shelves to the unit.
