Muscle Rack UR301260PB5P-SV Quick Start Manual

IMPORTANT SAFETY INFORMATION
Read through this entire manual for important guidelines and instructions prior to assembly. Failure to follow these guidelines and
instructions can result in property damage or serious personal injuries.
This unit should be placed on a level surface. Failure to do so can result in poor product performance or create a possible safety haz-
ard. DO NOT CLIMB, STAND or USE THIS UNIT AS A LADDER. TO PREVENT TIPPING, ALWAYS SECURE TO A WALL WITH SUITABLE FAS-
TENERS, NOT INCLUDED. DO NOT USE THIS UNIT TO STORE AQUARIUMS. CAUTION: CONTAINS SMALL PARTS, KEEP CHILDREN AWAY
DURING INSTALLATION. USE TWO OR MORE PEOPLE TO ASSEMBLE AND MOVE THE UNIT TO AVOID INJURY. Do not use this unit for
anything other than the manufacturer's intended purpose. Use care when working with metal parts, wear gloves for protection. Pe-
riodically inspect the unit to ensure brace/beam rivets are properly seated into post slots. Keep this manual for future reference.
Do not exceed the maximum weight capacity of 800 lbs (363 kg) for each shelf, not to exceed 4,000 lbs (1,814 kg) for the entire
shelving unit. Evenly distribute weight loads across entire shelf surface. Always store larger, heavier items on the bottom levels and
small lighter items on the upper levels.
PARTS
(B) Brace
(A) Post
Description Qty
(A) Post 8
(B) Brace 10
(C) Beam 10
(D) Wood Shelf 5
(E) Post Joint 4
(F) Post Cap 8
GENERAL INSTRUCTIONS
Assembly is done with the rivets of the beams and braces fitting into the slots of the post. A rubber mallet may be used on the
beams and braces to seat the rivets properly. A hammer can also be used, providing one uses a cloth or a block of wood between
the hammer head and the parts to prevent damage. Tap gently and be sure the rivets are straight and fully engaged.
Should you have any comments, damage, missing parts, or problems with assembly of this unit contact us:
Chat: www.edsal.com/chat or www.edsal.com/contact
Email: support@edsal.com
Phone: 773-475-3131
To obtain replacement parts please provide: Model Number, Part Number & Description,

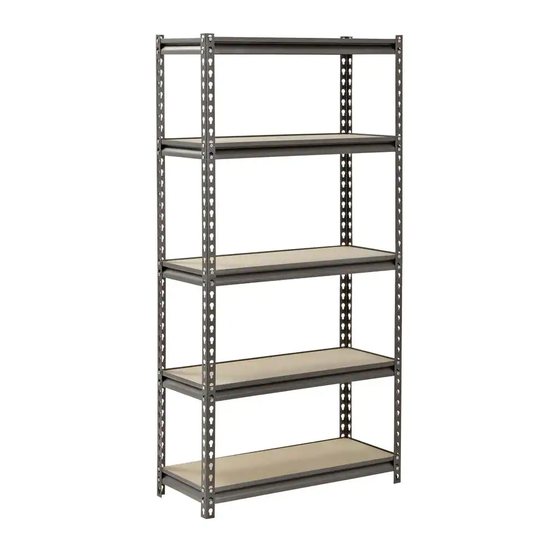

5-SHELF Boltless Steel Shelving
Model UR301260PB5P-SV
(30w x 12d x 60h)
Part Number
URPS30-SV
URBR12-SV
URBM30-SV
RPB31230
MPC0409-SV
RL-PC-B1.4
Location Purchased, and Date Purchased
with particleboard shelves
(C) Beam
PARTS LIST
Model UR361872PB5P-SV
(36w x 18d x 72h)
Part Number
URPS36-SV
URBR18-SV
URBM36-SV
RPB31836
MPC0409-SV
RL-PC-B1.4
(D) Wood Shelf
(E) Post Joint
Model UR481872PB5P-SV
(48w x 18d x 72h)
Part Number
URPS36-SV
URBR18-SV
URBM48-SV
RPB31848
MPC0409-SV
RL-PC-B1.4
Edsal Manufacturing Co. LLC
US Patents & Patents Pending
MODELS:
UR301260PB5P-SV
UR361872PB5P-SV
UR481872PB5P-SV
UR482472PB5P-SV
(F) Post Cap
Model UR482472PB5P-SV
(48w x 24d x 72h)
Part Number
URPS36-SV
URBR24-SV
URBM48-SV
RPB32448
MPC0409-SV
RL-PC-B1.4
Chicago, IL 60609
Rev: C063020
