Muscle Rack CR3618 Manual

Muscle Rack CR3618 Manual

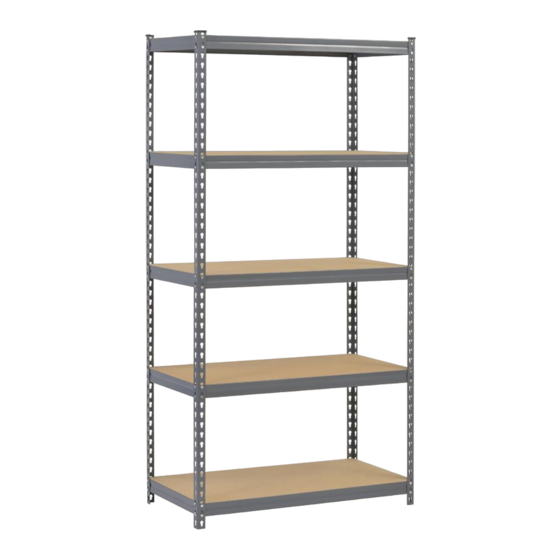

Heavy duty steel shelving

Advertisement

CR3618 5 Shelf
CR3618 5 Shelf
CR3618 5 Shelf
Description
Qty.
A - Beams
10
B - Braces
10
C - Post
8
D - Wood Shelf
5

Safety Instructions

Safety Instructions
Safety Instructions
These units should be placed on a level surface. Failure to do so can result in poor product performance or create a
possible safety hazard. This unit should be securely anchored to a wall or floor with suitable fasteners, which are not
included. Do not use this unit for anything other than the manufactures intended purpose. DO NOT STAND ON ANY
PART OF THE UNIT, OR USE IT AS A LADDER. Evenly distribute the weight on each level and always keep the
heavier loads on the bottom. Use care when working with metal parts.

General Instructions

General Instructions
General Instructions
Assembly is done with the rivets of the beams and braces fitting into the slots of the post. A rubber mallet may be used
on the beams and braces to seat the rivets properly. A hammer can also be used, providing one uses a cloth or a block
of wood between the hammer head and the parts to prevent damage. Tap gently and be sure the rivets are straight and
fully engaged.
Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel
free to contact our Muscle Rack manufacturing facility at, (773) 475-3137 and request customer service.
We can also be reached on the internet at the following email address : service@edsal.com.
To obtain replacement parts, please provide the following information :
- Model # - Color - Part # & Description
Heavy Duty
Steel Shelving
B - Braces
-
-
72"h x 18"d x 36"w
72"h x 18"d x 36"w
-
72"h x 18"d x 36"w
Part Number
Part Size
CBE3503 G/B
35 3/4"
CBE1703 G/B
17 3/4"
UPT3602S G/B
36"
RPB21836
35 29/32"
- Location Purchased
A - Beams
D - Wood Shelf
CR4824 5 Shelf
CR4824 5 Shelf
CR4824 5 Shelf
Description
A - Beams
B - Braces
C - Post
D - Wood Shelf
- Date Purchased
MODEL NUMBER
CR3618 - CR4824
CR3618-BLK - CR4824-BLK
-
-
72"h x 24"d x 48"w
72"h x 24"d x 48"w
-
72"h x 24"d x 48"w
Qty.
Part Number
10
CBE4703 G/B
10
CBE2303 G/B
8
UPT3602S G/B
5
RPB22448 G/B
Consumer Products Division
Edsal Manufacturing Company
4400 South Packers Avenue
Chicago, IL 60609
REV 1.2-A
C - Post
Part Size
47 3/4"
24 3/4"
36"
47 29/32"
www.edsal.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR3618 and is the answer not in the manual?

Questions and answers

Summary of Contents for Muscle Rack CR3618

  • Page 1 Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel free to contact our Muscle Rack manufacturing facility at, (773) 475-3137 and request customer service. Consumer Products Division We can also be reached on the internet at the following email address : service@edsal.com.
  • Page 2 Assembly Instructions for CR3618 & CR4824 Assembly Instructions for CR3618 & CR4824 Assembly Instructions for CR3618 & CR4824 Step Step Figure B Figure B Figure B Figure B Tap Lightly Note: Shelf Ledge Post are directional. The slot must point Post Slot Points Down down.
