Technical Support and E-Warranty Certificate
www.vevor.com/support

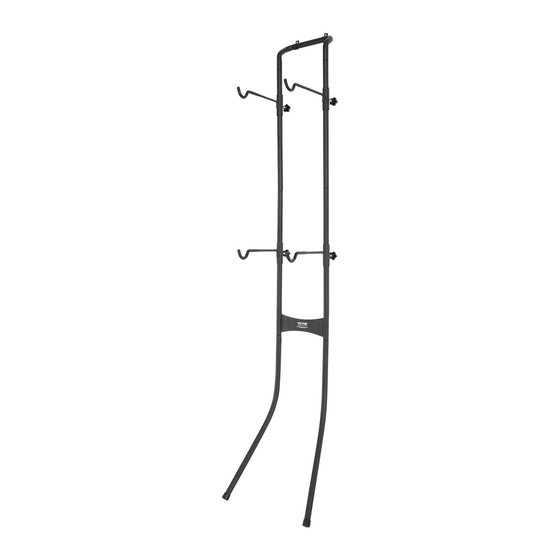

BIKE RACK
MODEL:RC-1836
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR RC-1836
Summary of Contents for VEVOR RC-1836
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support BIKE RACK MODEL:RC-1836 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Safety Notices
Safety Notices Risk of injury! • Thoroughly read the assembly and operating instructions prior to assembly and follow the individual steps as described in the assembly instructions. ★ WARNING! Do not exceed the maximum load capacity! Injuries or product damages may result. ★... - Page 4 ★ IMPORTANT: No liability is accepted for incorrect use of this product. ● Do not exceed a max load of 45 lbs. x 2Bikes ● Ensure that the storage rack is level before hanging the bicycle. ● Load heaviest bikes at bottom hanger first. ●...
- Page 5 Assembly A. Logo Plate 1pcs B. Leg 2pcs C. Vertical Upright 4pcs D. Top Bar 1pcs E. Bike Arm Assembly 4pcs F. Parts Bag： Wall Anchor 2pcs ST5.4 x 50mm Long Drywall Screw 2pcs Drywall Anchor 2pcs M6 x 12mm Philips Head Screw 8pcs Club Handle 4pcs...
- Page 6 STEP 2: For this step you’ll need 2 uprights (Part C), 2 Philips head screws, and the assembled parts A/B you just created from steps above. We will now attach an upright to each side of the logo plate. These will attach like the legs above did.
- Page 7 STEP 3: For this step you’ll need the above assembly you just created, and 2 Bike Arm Assemblies (part E) At this time, you’ll want to slide a Bike Arm Assembly (Part E) onto each Upright tube. Lightly tighten each arm just to hold it in place for now.
- Page 8 STEP 5: For this step you’ll need the above assembly and the other two Bike Arm Assemblies (Part E) Slide a Bike Arm Assembly (Part E) onto each Upright tube. Lightly tighten each arm just to hold it in place for now. STEP 6: For this step you’ll need the two assemblies we’ve created, and the last two Philips head screws.
- Page 9 STEP 7: Set Bike Storage Rack against Wall and Adjust Bike Arms as needed to store your bike(s) in your desired positions. STEP 8 (Optional): If you’d like to permanently mount your Bike Storage Rack, use the Long Dry Wall Screws, Wall Anchor Brackets, and Dry Wall Anchors (if necessary).
- Page 10 Address：Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
