Kolpin 97300 Mounting Instructions

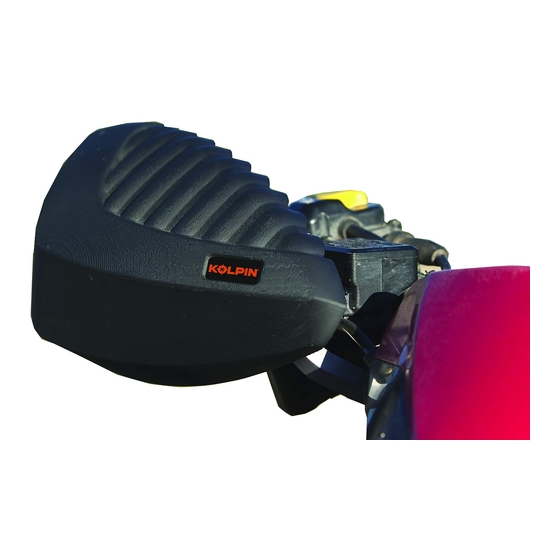

Kolpin Hand Guard Mounting Instructions-97300
Parts list:
NO. Description
1 L.H. Hand Guard
2 R.H. Hand Guard
3 Mounting Bar (left)
4 Mounting Bar (right)
5 Mounting Strap
6 Spacer Block
7 Hex Bolt
8 Hex Nut
9 Star Washer
10 Screw
11 Hex Bolt
Mounting:
1. Align the Right Mounting Bar to the handle bars on the riser portion of the right side. Using the
Mounting Strap, 1" Hex bolt, and Screw, fasten the Mounting Bar to the handle bars. (In some
cases cutting the vinyl sleeve and removing it may be necessary) Align the Screw through the
Mounting Strap and into the threaded hole on the Mounting Bar and tighten. Align the 1" Hex
bolt through the Mounting Strap and the Mounting Bar and install the lock nut. Snug but do not
tighten at this time.
(3)
(11)
(10)

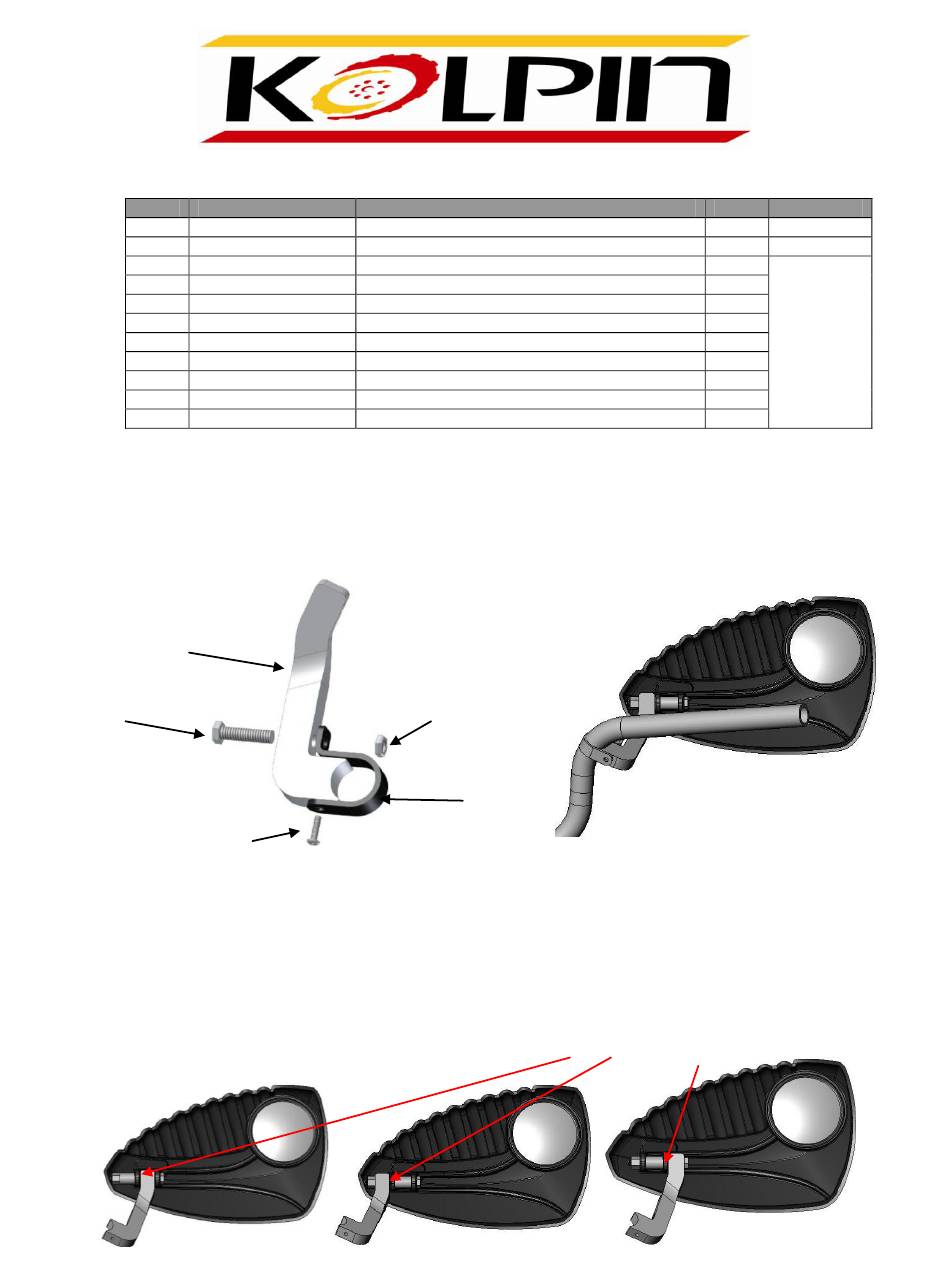

2. Position the Right Hand Guard in front of the Mounting Bar so that the holes on the posts align
with the hole on the Mounting Bar. Refer to the drawing below for the three options for mounting
the Hand Guard to the Mounting Bar. Using the 2.25" Hex bolt, Spacer Block, Lock Washer and
Hex Nut, fasten the Hand Guard to the Mounting Bar in your desired position by inserting the bolt
from the mirror side of the hand guard. You MUST use the star washer between the aluminum
mounting bar and the plastic mounting surface! The star washer must contact the plastic surface
AND the mounting bracket in order to prevent the hand guard from pivoting on the mount. DO
not over tighten the mounting bolt and nut or you can damage the plastic mounting boss on the
handguard!.
Rev.4
Material/Specification
Molded
Molded
Aluminum
Aluminum
Steel
Plastic
1/4" - 20 Hex Head, 2.25" L, Zinc-Plated Steel
1/4" - 20 Nylock Nut
1/4" Steel
#10 - 32 Pan Head, 0.5" L, Zinc-Platted Steel
1/4" - 20 Hex Head, 1.25" L, Zinc-Platted Steel
(8)
(5)
QTY.
1
1
1
1
2
2
2
4
2
2
2
(9)Star Washer
Spare P/N
87030
87031
77302
