Assembly and Installation on Polaris Sportsman 570 & Sportsman ETX
M2
M1

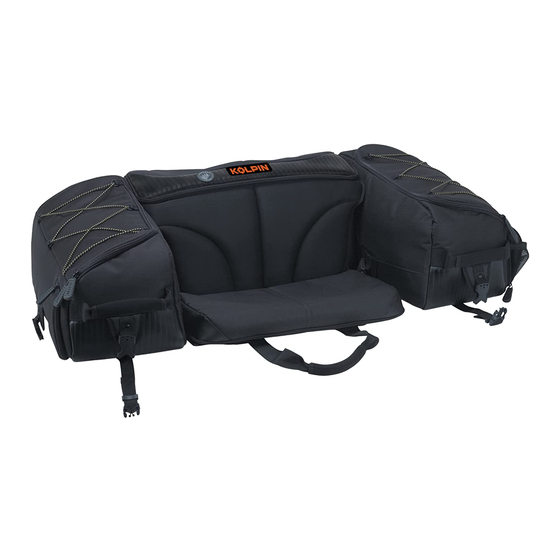

Kolpin Matrix Seat Bag:
M3
M4
L1
Towards front
of ATV
Assembly Steps:
1. For the left side, first
locate the five velcro
straps; one on the side
bag (labeled in picture as
L1), four on the middle
bag (labeled in picture as
M1, M2, M3, M4)
Notes:
• Direction is indicated
when sitting on ATV
facing towards the front.
• Blue masking tape is used
to identify straps for
assembly and installation.
The bag will not come
with labeled straps.
1
Advertisement
Related Manuals for Kolpin Matrix Seat Bag
Summary of Contents for Kolpin Matrix Seat Bag
- Page 1 Kolpin Matrix Seat Bag: Assembly and Installation on Polaris Sportsman 570 & Sportsman ETX Assembly Steps: 1. For the left side, first locate the five velcro straps; one on the side bag (labeled in picture as L1), four on the middle...
- Page 2 Assembly (cont’d): 2. Attach the side bag velcro strap thru the loop on the middle bag as shown in the picture (labeled L1)
- Page 3 Assembly (cont’d): 3. Attach the middle bag velcro straps that are located underneath the backrest pad (labeled M1, M2 in the picture) thru the loops on the side bag.
- Page 4 Assembly (cont’d): 4. Attach the middle bag velcro straps that are located on backside of bag (labeled M3, M4 in picture) thru the loops on the side bag.
- Page 5 Assembly (cont’d) 5. Repeat the same steps for the right side of the bag. Once assembled, the bag will then look as shown in picture. Towards front of ATV...
- Page 6 Installation steps: 1. Locate the buckle straps on the underside of bag (labeled as L1, L2, L3, L4, M1, M2, M3, M4, M5, M6, M7, R1, R2, R3, R4 in picture). These straps can be used to secure bag to vehicle rack.
- Page 7 Installation (cont’d): 2. Place bag on rear rack as shown in the picture to the right. Installation (cont’d): 3. Feed the left side bag strap thru the rack grab bar and buckle as shown in picture to the left. Slight adjustments of the straps will be needed.
- Page 8 Installation (cont’d): 4. Feed the two left side rear bag straps thru the rack grab bar and buckle as shown in the picture below. Installation (cont’d): 5. Feed the two right side rear bag straps thru the rack grab bar and buckle as shown in the picture above.
- Page 9 Installation (cont’d): 6. Feed the right side bag strap thru the rack grab bar and buckle as shown in picture to the right. Slight adjustments of the straps will be needed. Installation (cont’d): 7. Feed the front right bag strap thru the rack grab bar and buckle as shown in the left.
- Page 10 Installation (cont’d): 8. Feed the two middle bag straps that are under the seat pad thru the rack grab bar and buckle as shown in picture to the right. Slight adjustments of the straps will be needed. Installation (cont’d): 9. Feed the front left bag strap thru the rack grab bar and buckle as shown in the left.
- Page 11 10. The Matrix Seat Bag should now be secured to the vehicle rear rack with ten buckle straps. Slight strap adjustments will be needed to tighten bag fit to vehicle. Looking for ATV accessories & parts? Rely on Kolpin for quality and long-lasting products.
