Kumio ICE-2037Y Instruction Manual

2.2-quart ice cream maker with compressor
Hide thumbs

Advertisement

Table of Contents

2037

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICE-2037Y and is the answer not in the manual?

Questions and answers

Related Manuals for Kumio ICE-2037Y

Summary of Contents for Kumio ICE-2037Y

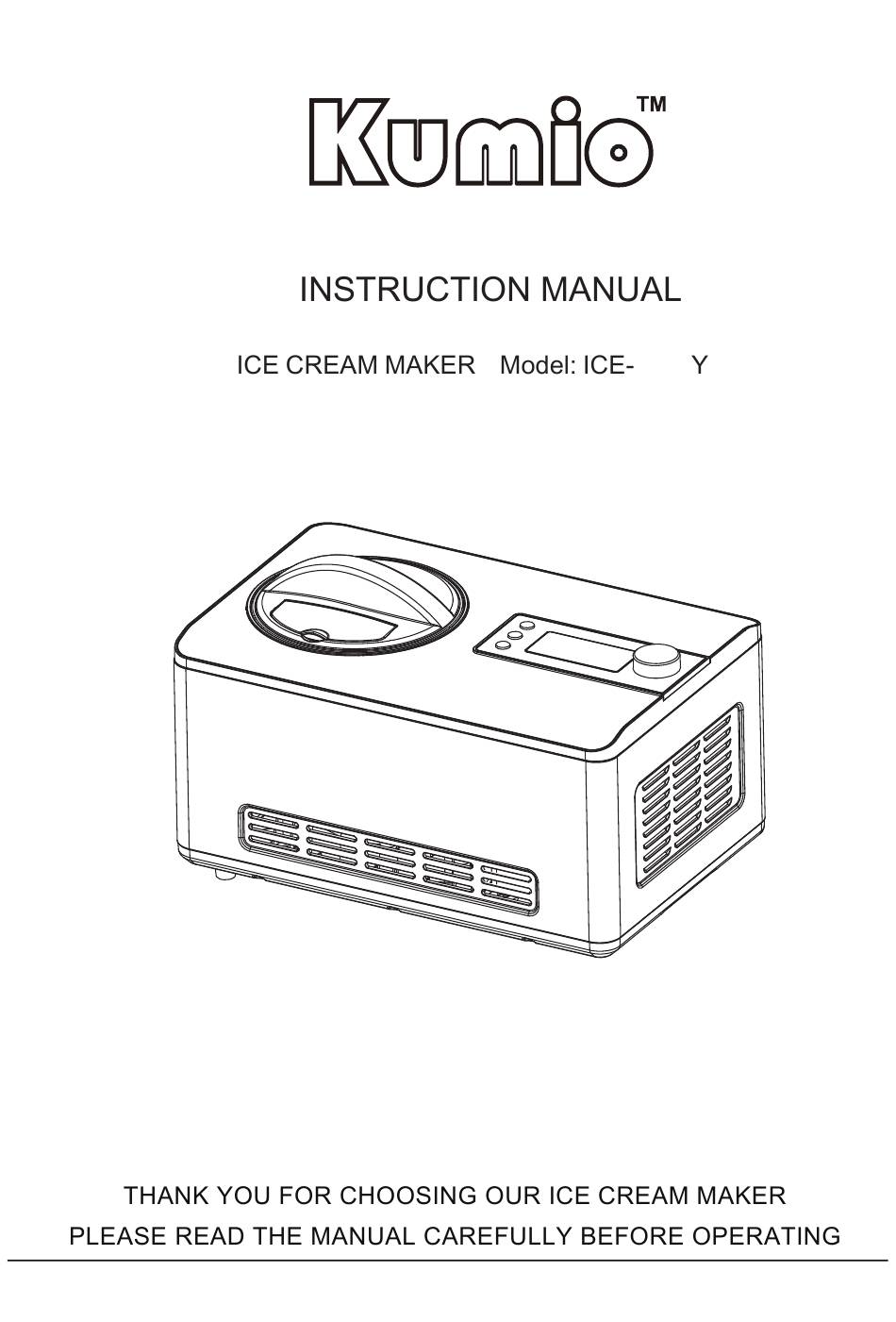

  • Page 1 2037...

  • Page 2: Important Notices

    IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Please read the instruction manual carefully before use. 2. Remove all packing material and carefully check your ice-cream maker to ensure it is in good condition and that the appliance, its power cord and the plug are not damaged.
  • Page 3 10. Any accessories not recommended by the manufacturer may not be used. 11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4 mixing motor, which can better protect the service life of the motor. 19. This product cannot be used outdoors. 20. Do not use chemical washing liquids and hard tools to clean the product. The bowl is not dishwasher safe, do not wash the evaporator directly under water.
  • Page 5 This symbol indicates the refrigerant R600a and the non-metallic materials of the appliance are flammable. It’s a warning symbol. Warning: Risk of fire / flammable materials. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

  • Page 6: Specifications

    SPECIFICATIONS Model: ICE2037Y Capacity: 2L Voltage: 120V/60Hz Anti-shock protection class: I Climate type: N Power consumption: 180W Max overall dimensions (L*W*H): 425X285X262mm Max packing dimensions (L*W*H): N.W: 1 G.W: 13. kg PRODUCT FEATURE 1. Microcomputer automatic control, simple and reliable operation and won’t cost you much trouble.
  • Page 7 .PRODUCT INSTRUCTION…… ……… ……… ….... 1) Structure Figure 1 Transparent small lid Mixing blade Removable bowl Metal cover 5. Upper cover 6. Metal housing 7. Air Vent 8. Baseplate Transparent lid...
  • Page 8 2) Function buttons Figure 2 POWER BUTTON MENU BUTTON START/PAUSE BUTTON HOW TO MAKE ICE CREAM NOTE: Please thoroughly clean all parts that will contact with ice cream before use, including: cooling bowl, removable bowl, mixing blade, transparent cover, refill lid and ice cream shovel, etc. Before cleaning, you must ensure that the power cord plug is disconnected from the outlet.
  • Page 9 Figure 3 Step 2. Then put the removable bowl into the ice cream machine and press it tightly (As shown in Figure 4). Figure 4 Step 3 In ICE CREAM mode, place the mixing blade into the removable bowl and keep the mixing blade bottom hole fitted well. In YOGURT mode, please remove the mixing blade.
  • Page 10 Step 4 Put the transparent lid onto the machine and lock it anticlockwise (As shown in Figure 5). Lock Figure 5 Step 5 Plug in power, and press the POWER button to make the machine electrified. Step 6 Press the MENU button to choose the working mode. Step 7 Turn the knob to set the working time.
  • Page 11 shown in Figure 6). You can add the favorite ingredients by opening the refill cover Figure 6 Step 10 After the operation is over, turn off the machine first, and then pull the removable bowl out.

  • Page 12: Operation

    OPERATION 1. Connect the power supply and plug the power cord into a suitable socket. The shape and voltage of the socket shall be the same as those indicated. Connect the AC 120V/60Hz power supply. 2. Select control buttons. 2.1 Buttons function description 2.1.1 POWER: ON-OFF button.
  • Page 13 3.2 After the mode is selected, the user can start to adjust the production time. 3.2.1 The default time of ICE CREAM mode is 60 minutes, and "60:00" is displayed. Turn the TIME knob to the right once to increase the time by 1 minute, and turn it continuously to increase the time rapidly, which can be changed to 60 minutes at most.
  • Page 14 changed to 5 minutes. After 5 minutes, when the knob is turned to the left, it still displays 05:00. The time cannot be reduced. 3.2.4 MIXING ONLY: The default time of the mode is 10 minutes, and "10:00" is displayed. Turning the TIME knob to the right once can increase the time by 1 minute.
  • Page 15 4.2 After the machine finishes single mixing, it will emit three short beeps to return to the power on state. 4.3 After the machine completes the ice cream mode, the time bar displays "00:00".The machine automatically enters the thermal insulation state, and the system starts timing. After 10 minutes, the compressor and fan motor start, and the time bar displays "COOL";...

  • Page 16: Electrical Diagram

    mixing motor control system resets and the mixing motor can continue to work as required. 7. COMPRESSOR SELF-PROTECTION FUNCTION When the ice cream or refrigeration mode is started, the compressor will be started directly. When the compressor is started continuously, it will be delayed for three minutes before it can be started again.

  • Page 17: Maintenance

    MAINTENANCE Caution: The plug must be removed before cleaning to avoid electric shock. a) Take out the mixing blade, wipe it with a dampened cloth. b) Take out the removable bowl, clean it with a dampened soft cloth. c) Wipe the transparent lid and refill lid with a dampened cloth. d) Remove the dirty on the body or other places with a dampened cloth, and do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid.

  • Page 18: After Sales Service

    The removable bowl Deformation caused cannot be placed in improper use of removable removable bowl the cooling bowl bowl When making ice cream Deformation caused beginning, improper use of removable mixing removable bowl bowl severely scratched or stuck AFTER SALES SERVICE One year warranty service is available from the date of purchase.
  • Page 19 self-disassembly. If the product is not under warranty, the maintenance fee will be waived and only the parts fee will be charged. Manufacturer reserves the right of final interpretation of the above commitments. PARTS Mixing blade User manual Instruction sheet Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the...
  • Page 20 YOGHOURT RECIPE MANUAL Make the materials according to any one of the below recipes. And distribute the material well. Recipe 1: merchant refrigerated fresh milk 1000ml + ferment or 50ml refrigerated pure yoghourt. Recipe 2: aseptic encapsulation pure milk 1000ml + ferment or 50ml refrigerated pure yoghourt.
  • Page 21 Suggestion: Consider using the active lactobacillus ferment as the ferment source prior to other fermentation source. You can use the merchant pure yoghourt or the pre-made pure yoghourt as the fermentation source if it is not convenient to buy the ferment. ICE CREAM RECIPE MANUAL BASIC ICE CREAM Make according to the following formula.
  • Page 22 320g heavy cream, well chilled 1.2 teaspoon pure vanilla extract Heat the whole milk until it is just bubbling around the edges (this may be done on the stovetop or in a microwave). In a blender or food processor fitted with the metal blade, pulse to process the sugar with the chocolate until the chocolate is very finely chopped.
  • Page 23 FRESH LEMON SORBET 470g granulated sugar 560g pure water 160g freshly squeezed lemon juice 0.5 tablespoon finely chopped lemon zest * Combine the granulated sugar and water in a medium saucepan and bring to a boil over medium-high heat. Reduce heat to low and simmer without stirring until the sugar dissolves, about 3 –...
  • Page 24 Limited two-year warranty This warranty is available to consumers only. You are a consumer if you own a kumio ice cream maker that was purchased at retail for personal, family or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners.
