Summary of Contents for Kumio ICE-1032Y

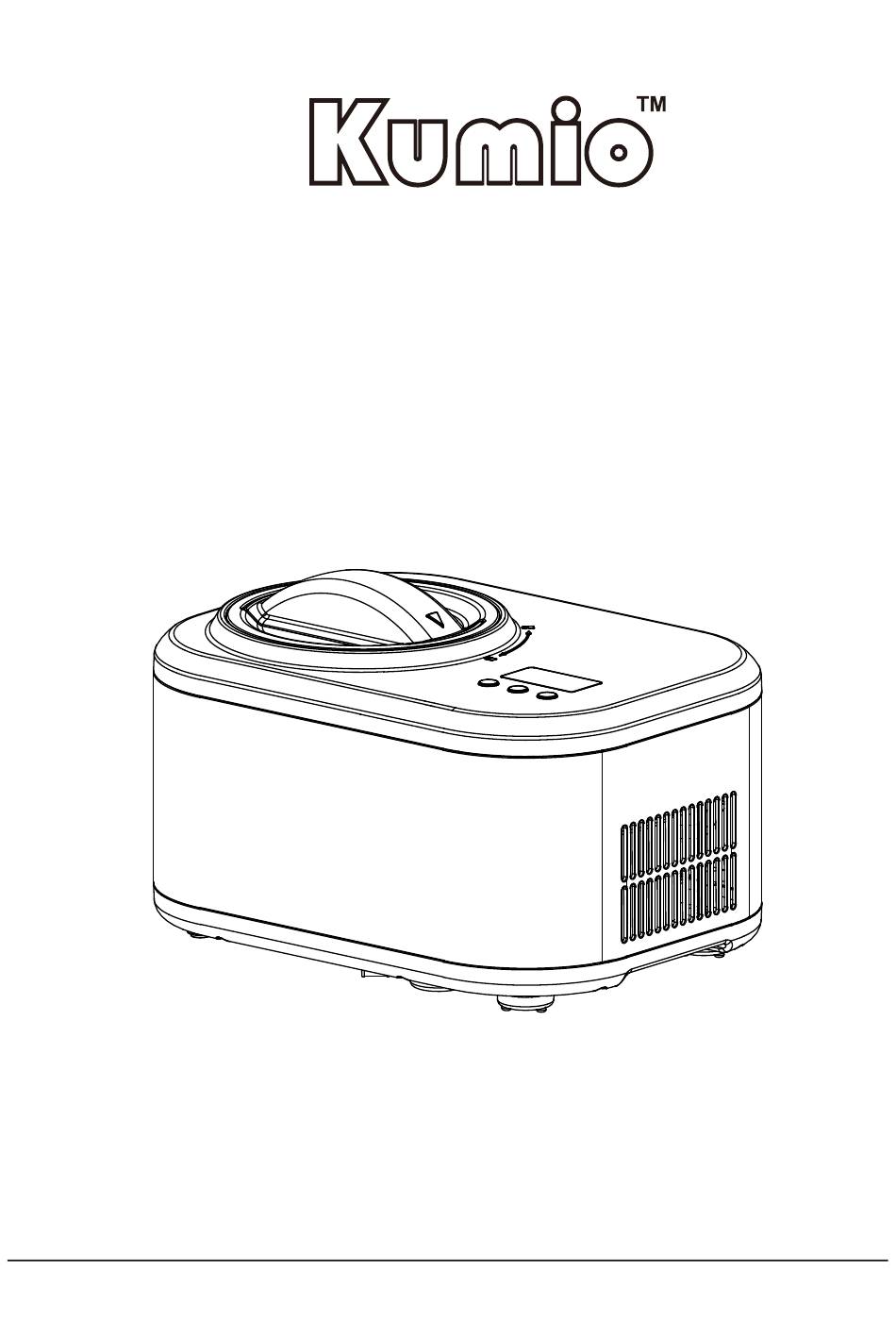

- Page 1 INSTRUCTION MANUAL ICE CREAM MAKER Model: ICE-1032Y THANK YOU FOR CHOOSING OUR ICE MAKER PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 3: Important Notices
Thank you for your purchase. To confirm correct operation and your safety, please read this manual carefully before use and retain it for future use. IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. - Page 4 7. DO NOT upend this product or incline it over a 45℃ angle. 8. To protect against risk of electric shock, do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid. 9. Unplug the appliance after using or before cleaning. 10.
- Page 5 17. Please keep the instruction manual. 18. Warning: DO NOT store explosive substances such as aerosol cans with a flammable propellant in this appliance. 19. This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; –...
- Page 6 This symbol indicates the refrigerant R134a and the non-metallic materials of the appliance are flammable. It’s a warning symbol. Warning: Risk of fire / flammable materials. Warning; Risk of fire / flammable materials. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
-
Page 7: Product Feature
Regarding the information pertaining to the use of the appliance, thanks to refer to the below paragraph of the manual. SPECIFICATIONS Model： ICE-1032Y Capacity：1L Voltage：AC 110-120V/60Hz Anti-shock protection class：I Climate type：N/SN Power consumption：100W Max overall dimensions：355(L) x 260(W) x 225.8(H)mm 13.98 x 10.24 x 8.89 Inches... - Page 8 1. Please read the instruction manual carefully before use. 2. Check if the voltage range used is the same as that marked on the nameplate, whether the power cord plug and the socket match, and ensure that the socket is well grounded. 3.
- Page 9 each time) to avoid damage to the compressor. 12. Metal foil or other conductive materials are not allowed to be inserted into the machine to prevent fire or short circuit. 13. When taking out the ice cream, do not knock the surface or edge of the container to avoid damage to the container.
- Page 10 21. When the ice cream machine is started without adding ice cream ingredients, there will be a slight sound of mixing blade scraping to the loading bowl, which is a normal phenomenon. 22. There are two round copper sheets at the motor assembly of the transparent cover installed on the upper cover.
- Page 11 .PRODUCT INSTRUCTION…… ………………… .... 1. Structure Transparent lid Mixing blade Loading bowl Top lid Housing Base - 10 -...
- Page 12 2. Control panel ON/OFF Mode Selection Start/Pause 3. MENU Single refrigeration mode Single mixing mode - 11 -...
-
Page 13: Operation
Ice Cream Mode Yogurt mode OPERATION 1. Connect the power supply and plug the power cord into a suitable socket. The shape and voltage of the socket shall be the same as those indicated. 2. Button control functions 1). Function description of buttons ①... - Page 14 ② START/PAUSE BUTTON When the machine is in the start-up state, the ice cream mode icon flashes. Press the START/PAUSE button, the ice cream mode icon will be on for a long time, the refrigeration icon will flash, the mixing icon will rotate, the display will start timing, and the machine will start working.
- Page 15 reaches the preset value, there will be 10 beeps to remind that the mixing is completed. After the completion, he machine will enter the standby mode, please select other modes or shut down. ② Single Refrigeration Mode The compressor and cooling fan are started to realize the refrigeration function.
- Page 16 ④ Yogurt Mode Select yogurt mode, factory setting is 8 hours, display "08H". Press START/ PAUSE button, compressor, mixing motor and cooling fan start, yogurt icon on the screen will be on for a long time, other icons will be off. After the machine completes the yogurt mode, the machine automatically enters the refrigeration mode, and the time bar shows COOL.
- Page 17 4. MOTOR SELF-PROTECTION FUNCTION When the ice cream becomes harder, the mixing motor might be blocked. Then the motor protection device makes the mixing motor stop working by detecting its temperature to ensure the life of the motor. 5. COMPRESSOR SELF-PROTECTION FUNCTION After the compressor stops from ice cream mode or single refrigeration mode, if the ice cream mode or single refrigeration mode is selected again, the compressor will have a protection time of about 3 minutes.
- Page 18 HOW TO MAKE ICE CREAM NOTE: Please thoroughly clean all parts that will contact with ice cream before use, including: cooling bowl, loading bowl, mixing fan blade, transparent lid, etc. Before cleaning, you must ensure that the power cord plug is disconnected from the outlet.
- Page 19 Step 2. Then put the loading bowl into the ice cream machine, both ends of the loading bowl handle shall be aligned with the groove of the upper cover. Installation position of loading bowl - 18 -...
- Page 20 Step 3. Install the transparent lid and motor components. Step 4. Install the mixing fan blade, transparent lid and motor components - 19 -...
- Page 21 Step 5. Put the components installed in step 4 into the ice cream machine, make sure that the center of the convex hull of the loading bowl and the motor components of the mixing fan blade are in the same straight line, lock the components clockwise, and make sure that the triangle mark on the components rotates to the "LOCK"...
- Page 22 Step 7. When the ice cream is finished, press the ON/OFF button and the machine will shut down. Step 8. Turn the transparent lid and motor components anticlockwise. In the process of spinning out, there will be a slight friction sound, which is normal. When the triangle mark is aligned with the unlocking mark, take out the components and then take out the loading bowl.
- Page 23 HOW TO MAKE YOGURT Material preparation: Add the raw materials into the container according to the following proportion and mix well. Formula 1: 600 ml cold storage fresh milk + starter or 50 ml cold storage pure yogurt. Formula 2: 600 ml sterile pure milk + starter or 50 ml cold storage pure yogurt, Formula 3: 600 ml milk (which is made from milk powder) + starter or 50 ml cold storage pure yogurt.
- Page 24 yogurt is used as fermentation source, the longest time is not more than 10 hours). Suggestion: the active lactic acid bacteria starter is preferred as the fermentation source, and the commercially available pure yogurt or the last self-made pure yogurt can also be used as the fermentation source when the starter is inconvenient to purchase.
- Page 25 flavor of yogurt is pure and the taste is excellent (as long as the machine is not shut down, the machine is always in the refrigeration mode). 2. The fermented yogurt can be directly put into the refrigerator together with the container for cold storage purification.
-
Page 26: Electrical Diagram
3. Full fat milk powder or fresh milk is suitable for developing children, and low-fat or skim milk powder or fresh milk should be used for overweight children or obese people to maintain their figure (milk added with fructose can accelerate fermentation, avoid using flavored milk). -
Page 27: Maintenance
MAINTENANCE Caution: The plug must be removed before cleaning to avoid electric shock. 1, Take out the mixing blade, wipe it with a dampened cloth 2, Take out the removable bowl, clean it with a dampened soft cloth 3, Wipe the transparent lid and refill lid with a dampened cloth 4, Remove the dirty on the body or other places with a dampened cloth, and do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid... - Page 28 The transparent lid The mixing fan blades not Put the mixing fan is lifted to the mixing in place, and pay attention in place and rotate fan blade, and it to the alignment of the the transparent cannot be stuck in convex hull at the bottom cover in place place...
-
Page 29: After Sales Service
AFTER SALES SERVICE One year warranty service is available from the date of purchase. The date of purchase of the invoice or after-sales service warranty card is subject to the warranty service. The problems you encounter when using our company's home automatic ice cream machine can be helped and resolved through the service email. - Page 30 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
