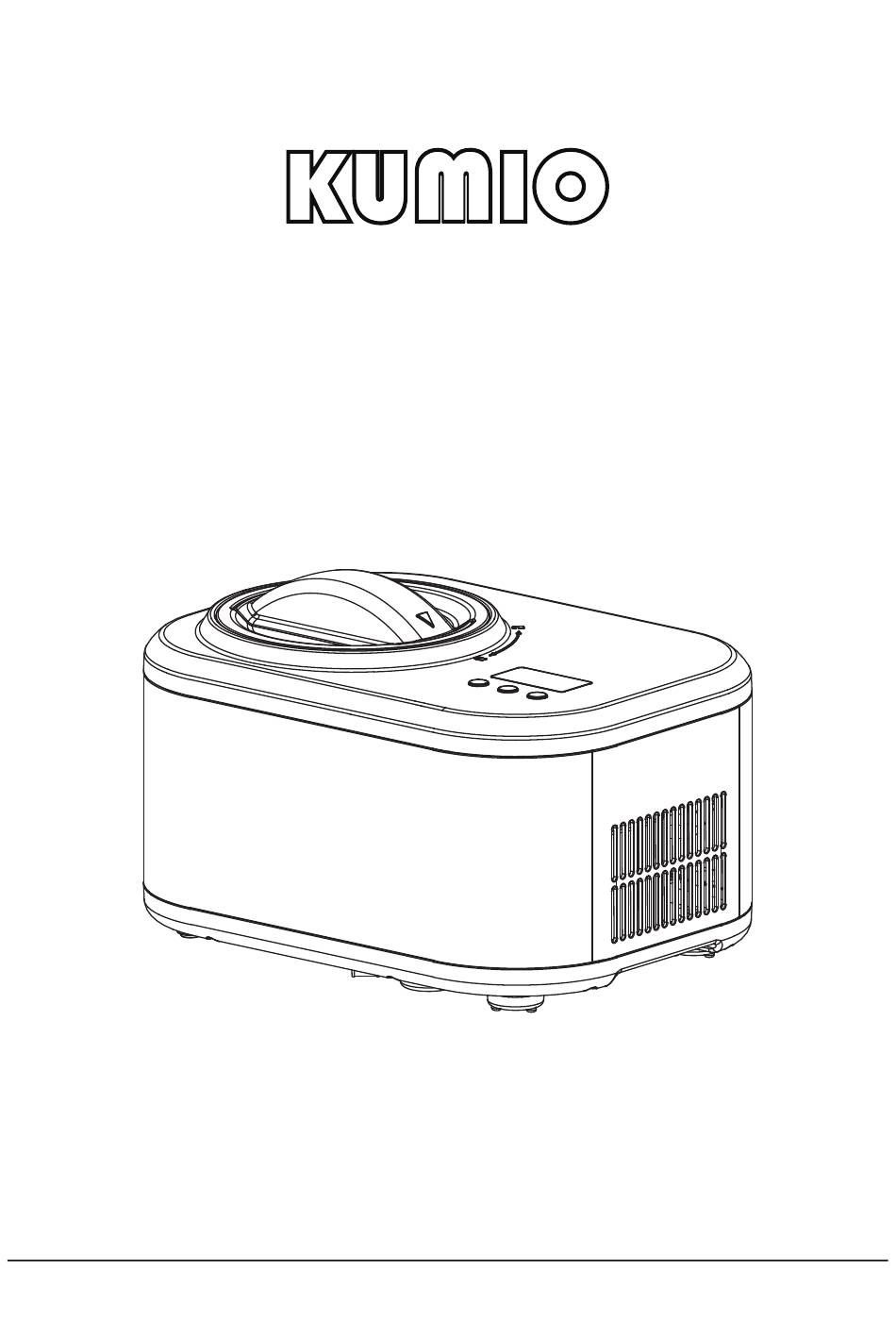

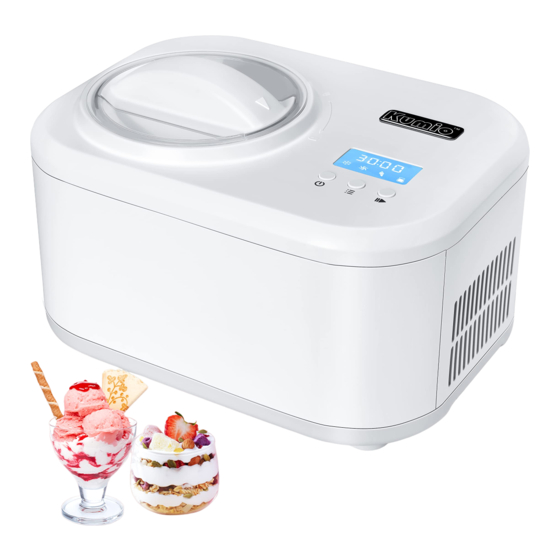

- Page 1 INSTRUCTION MANUAL ICE CREAM MAKER Model: ICE-1032Y THANK YOU FOR CHOOSING OUR ICE CREAM MAKER PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 2: Important Notices
IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Read all instructions before using. 2. Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the earthing of the socket is in good condition. - Page 3 cans with a flammable propellant in this appliance. –Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction –Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer –Warning: Do not damage the refrigerant circuit.
- Page 4 cord, plug and ventilation, immerse the appliance in water or any other liquid. 12. Unplug the appliance after using or before cleaning. 13. Keep the appliance 8cm from other objects to ensure the good heat releasing. 14. Do not use the accessories which are not recommended by Manufacturer.
-
Page 5: Specifications
copper 25. Please keep the instruction manual. SPECIFICATIONS Model: ICE1032Y Capacity: 1L Voltage: AC 220-240V/50Hz Anti-shock protection class: I Climate type: N/SN Power consumption: 100W（refrigeration） ，20W（ heating） Max overall dimensions: 355（L）X 260（W）X 227.5（H）mm Max Packing Dimensions: 398（L）X 300（W）X 256（H）mm N.W: 16.31lbs/7.4kg G.W: 18.3lbs/8.3kg PRODUCT FEATURE 1.Touch control, simple and reliable operation and won’t cost you... - Page 6 4. Upper mixing and low noise. 5. With a variety of quick freezing ice cream production methods. 6 .The parts are detachable, easy to clean, sanitary and safe. .PRODUCT INSTRUCTION…… ………………….... 1) Structure Motor Transparent lid Mixing blade Loading bowl Top lid Housing...
- Page 7 2) Control panel Power button Mode selection Start/Stop 3) MENU Single mixing mode Single refrigeration mode Ice cream mode Yogurt mode - 7 -...
-
Page 8: Operation
OPERATION 1. Connect the power supply and plug the power cord into a suitable socket. The shape and voltage of the socket shall be the same as those indicated. 2. Function description 1) Function description of buttons ①POW ER BUTTON Plug in the power supply, press the power button to turn on the machine, and press the power button again to shut down the machine. - Page 9 If there is no operation, the machine will return to the standby state. When the ice cream is finished, there will be 10 short beeps and it will enter the insulation function automatically, 60 minutes in total. Execute the cycle of turning off refrigeration for 10 minutes and starting refrigeration for 6 minutes, the display screen displays "COOL"...
- Page 10 standby state. After the 30 minute countdown is completed, there will be 10 beeps to remind that the mixing is completed, and the machine will enter the standby mode (The icons of each mode will be on for a long time, and the countdown will return to zero). ④...
- Page 11 4.2 In the ice cream mode and single mixing mode, if the motor components are not installed in place, the buzzer will give an alarm every 30s and sound 10 times, which will last for 10 times. If the motor components are not installed in place after that, the machine will enter the standby state.
- Page 12 Make according to the following formula. After mixing the formula mixture evenly, it can be made into ice cream within 60 minutes. Cream: 180g Powdered Milk: 120g Water: 200g Step 2. Then put the loading bowl into the ice cream machine, both ends of the loading bowl handle shall be aligned with the groove of the upper cover.
- Page 13 Step 3. Install the transparent lid and motor components. Step 4. Install the mixing fan blade, transparent lid and motor components Step 5. Put the components installed in step 4 into the ice cream machine, make sure that the center of the convex hull of the loading bowl and - 13 -...
- Page 14 the motor components of the mixing fan blade are in the same straight line, lock the components clockwise, and make sure that the triangle mark on the components rotates to the "LOCK" mark. Lock Step 6. Plug in the power supply, touch the POWER button for 1 second, the machine starts up, the ice cream mode indicator light is flashing red, touch the START/STOP button, the indicator light is on green, and start to make ice cream.
- Page 15 Step 7. When the ice cream is finished, touch the power button for 1 second, and the machine will shut down. Step 8. Turn the transparent lid and motor components anticlockwise. In the process of spinning out, there will be a slight friction sound, which is normal.
- Page 16 HOW TO MAKE YOGURT Material preparation: Add the raw materials into the container according to the following proportion and mix well. Formula 1: 600 ml cold storage fresh milk + starter or 50 ml cold storage pure yogurt. Formula 2: 600 ml sterile pure milk + starter or 50 ml cold storage pure yogurt, Formula 3: 600 ml milk (which is made from milk powder) + starter or 50 ml cold storage pure yogurt.
- Page 17 Fermentation steps: Plug in the power, press the power button, the machine starts, the default ice cream mode icon flashes, press the to select the yogurt function, press the START/STOP button, the yogurt mode icon will be on for a long time, and start to make yogurt. Retain freshness: Just fermented yoghurt can be eaten immediately, but the yoghurt has not reached the best taste at this time.
- Page 18 Flavour: Before eating yogurt, you can add fruit juice, fructose and honey according to your own taste. Tips: 1. If a large amount of gas and odor are produced after fermentation, it means that the water source or milk powder is polluted and should be discarded.
-
Page 19: Electrical Diagram
ELECTRICAL DIAGRAM DC 12V Fan Compressor control circuit DC 12V motor Motor control circuit control circuit Heating element Power Plug Compressor Fuse Temperature sensor Protector 220-240V/50Hz control board Buzzer circuit Reset circuit YELLOW/GREEN Oscillating circuit MAINTENANCE Caution: The plug must be removed before cleaning to avoid electric shock. -
Page 20: Common Problem
COMMON PROBLEM Exist problem Reason analysis Resolutions There are water drops between the refrigeration Wait 3-8 minutes Not easy to take out barrel and the loading before taking out loading bowl after the ice bowl that are not wiped cream cream is finished clean, resulting... - Page 21 designated personnel to disassemble the product by themselves. 3) No purchase invoice or purchase invoice does not match the product; 4) Damage caused by force majeure; 5) Exceeding the warranty period. ★ If you find any quality problems, please contact the service center or special maintenance service point for repair.
-
Page 22: Vanilla Ice Cream
ICE CREAM RECIPE MANUAL VANILLA ICE CREAM 160g whole milk 76g granulated sugar 120g heavy cream, well chilled 0.5 – 1.5 teaspoons pure vanilla extract, to taste In a medium bowl, use a hand mixer or a whisk to combine the milk and granulated sugar until the sugar is dissolved, about 1 –... - Page 23 granulated sugar, stir gently and allow to the strawberries to macerate in the juices for 2 hours. In a medium bowl, use a hand mixer or a whisk to combine the milk and granulated sugar until the sugar is dissolved. Stir in the heavy cream plus any accumulated juices from the strawberries and vanilla.
- Page 24 Limited two-year warranty This warranty is available to consumers only. You are a consumer if you own a kumio ice cream maker that was purchased at retail for personal, family or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners.
