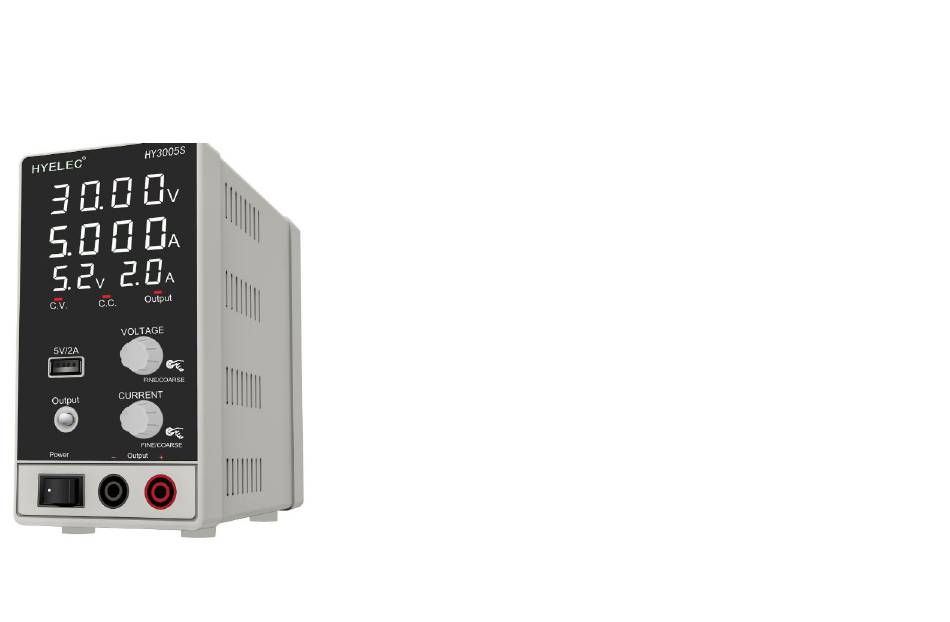

- Page 1 USER’S MANUAL DC REGULATED POWER SUPPLY...
-
Page 2: Brief Introduction
BRIEF INTRODUCTION: The HY3005S adjustable DC Power Supply equipped with advanced single-chip technology, combined with high-quality code potentiometer to achieve the high stability for both the output voltage and limiting current are continuously adjustable, meanwhile it has configured with 5V2A USB interface for powering terminal devices such as mobile phones and pads. -
Page 3: Technical Parameters
1 TECHNICAL PARAMETERS: 1．1 Input Voltage: 104～127V AC (60Hz) 1．2 Output Voltage：0-30V DC ，Output Current: 0-5A DC USB port output voltage：DC 5V/2A(MAX) 1．3 Line regulation： CV≤0.1%+3mV CC≤0.2%+5mA 1．4 Load regulation： CV≤0.1%+10mV CC≤0.5%+10mA 1．5 Ripple and noise：CV≤5mVr.m.s CC≤20mAr.m.s 1．6 Protection：Short circuit,Over temperature and Over load protection 1．7 Voltage indication accuracy：LED±0.5％＋5 digits 1．8 Current indication accuracy：LED±0.5％＋5 digis... - Page 4 2.1 Controls and indicators：...
- Page 5 AC Input Socket Output voltage value display Output current value display USB output voltage value display USB output current value display CV--constant voltage status indicator CC--constant current status indicator OUTPUT—output status indicator USB interface OUTPUT output switch button...
- Page 6 Power switch Output Terminal Negative（-）Black color. Output Terminal Positive（+）Red color Current set value adjustment knob, current fine and coarse adjustment switch button Voltage set value adjustment knob, voltage fine and coarse adjustment switch button...
-
Page 7: Operating Procedure
2.2 OPERATING PROCEDURE： Voltage Setting： Adjust knob to the required voltage（press this knob once, you ⑮ could switch to voltage coarse and fine adjustment） Current Setting： Adjust knob to the required voltage（press this knob once, you ⑭ could switch to current coarse and fine adjustment） Output Control：... -
Page 8: Lock Function
the load. Lock Function： press knob ⑭ and ⑮ in the same time for 3seconds and the display will flash for once, the voltage, current adjustment are locked,the output knob can be used normally, conversely, press knob ⑭ and ⑮ in the same time for 3seconds and the display will flash for once, the power supply will return to the normal adjustable status. - Page 9 ATTENTION: 3. 1 The power supply has perfect current limiting protection. In case of short circuit at the output end, the output current will be limited to the maximum current limiting point and will not increase again, but there is still great power consumption on the power tube at this time.
- Page 10 4.1 Power cord -------------------------------one piece 4.2 Instruction manual ----------------------one piece 4.3 Alligator Leads ----------------------one piece Hang Zhou Hua Yi (Heng Ao) Electronics Industry Co., Ltd. No.29 Xianxing Road Xianlin Street Yuhang Area Hang Zhou, China Tel：0086 571-88864116、88864626、88860910 E-mail:hyelec@vip.163.com Made In China...
