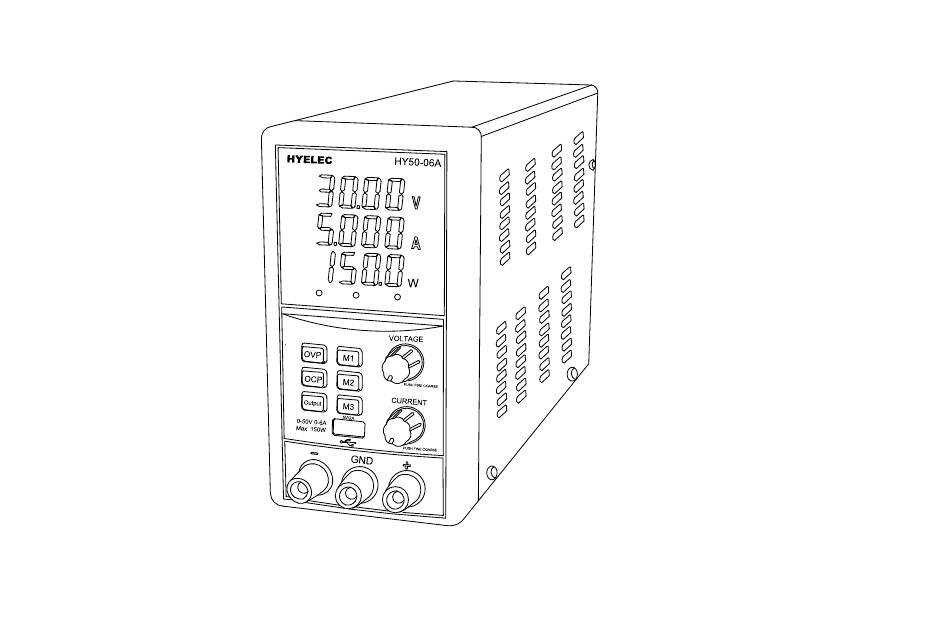

- Page 1 USER’S MANUAL DC REGULATED POWER SUPPLY...
-
Page 2: Brief Introduction
BRIEF INTRODUCTION: The HY50-06A adjustable DC Power Supply equipped with advanced single-chip technology, combined with high-quality code potentiometer to achieve high stability DC power supply and 5V2A USB interface with continuously adjustable output voltage, current limit and automatic conversion of voltage stabilization and current stabilization. -
Page 3: Technical Parameters
1 TECHNICAL PARAMETERS: REGULATED OUTPUT VOLTAGE: 0-50V REGULATED OUTPUT CURRENT 0-6A（Max output 150W） 1.1 Input voltage : 104~127V AC ( 60Hz) 1.2 Line regulation: CV≤ 0.1%+3mV CC≤0.2%+3mA 1.3 Load regulation:CV≤0.1%+3mV CC≤0.5%+10mA 1.4 Ripple and noise:CV≤5mVr.m.s CC≤20mAr.m.s 1.5 Protection:current limiting and short-circuit protection,OCP, OVP independent protection 1.6 Voltage indication accuracy: LED±0.5％＋5 digits 1.7 Current indication accuracy:LED±0.5％＋5 digits... - Page 4 2.1 Controls and indicators Click ⑯ / ⑱ knob for coarse and fine adjustment.
- Page 5 ① Power 1-0 switch. ② AC Input Socket with Fuse. ③ Concealed Fuse box. ④ Voltage Display ⑤ Current Display ⑥ Output Power Display ⑦ CV--constant voltage status indicator ⑧ CC--constant current status indicator ⑨ LOCK--lock status indicator ⑩ OVP setting button ⑪...
- Page 6 ⑬ Output Terminal Negative(-)Black color. ⑭ Housing GND Terminal( ) Green color ⑮ Output Terminal Positive（+）Red color ⑯ Current adjusting turning knob ⑰ USB output interface ⑱ Voltage adjusting turning knob...
-
Page 7: Operating Procedure
2.2 OPERATING PROCEDURE： Voltage Setting： adjust knob ⑱ to the required voltage. （ press the knob for coarse and fine adjustment.）Current Setting：adjust knob ⑯ to the required Current （ press the knob for coarse and fine adjustment） Output Control：After setting the current and voltage, press the button ⑫， connect output，the voltage display value is output voltage value at this time, the current display value will shows as the actual current value according to the load. - Page 8 Lock Function：press knob ⑯ & ⑱ in the same time for 3seconds, the lock indicator light up, the power supply current and voltage regulation are locked. If need the OUTPUT、OVP、OCP could be used as normal, then press knob ⑯ & ⑱ in the same time for 3seconds, lock indicator off, the power supply returns to the normal adjustable state.
- Page 9 OVP setting: Press the OVP button to turn the OVP function on or off. When the OVP function is turned on, the button indicator light will light up, otherwise it will turn off. Press and hold the OVP key for 3 seconds to enter the OVP value setting mode.
- Page 10 Maximum output power is 150W: set voltage * set current ≤ 150W. When adjusting the voltage, if the set voltage * set current ≥ 150W, the set current will automatically decrease and remain at the set voltage * set current ≤ 150W. When adjusting the current, if the set voltage * set current ≥...
- Page 11 3 ATTENTION: 3.1 The power supply has perfect current limiting protection. In case of short circuit at the output end, the output current will be limited to the maximum current limiting point and will not increase again, but there is still great power consumption on the power tube at this time.
- Page 12 4.1 Power cord -------------------------------one piece 4.2 Instruction manual ----------------------one piece 4.3 Alligator Leads ----------------------one piece Hang Zhou Hua Yi (Heng Ao) Electronics Industry Co., Ltd. No.29 Xianxing Road Xianlin Street Yuhang Area Hang Zhou, China Tel：0086 571-88864116、88864626、88860910 E-mail:hyelec@vip.163.com Made In China -11-...
