Delta R11000 Manual

R11000
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
3 3/8"
(86 mm)
3 3/8"
(86 mm)
RP75137 Available Extension Kit
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-R11000 Rev. F
2 3/4 +/-1/8"
(70 mm)
Finished Wall
2 3/4"
(70 mm)
Supply

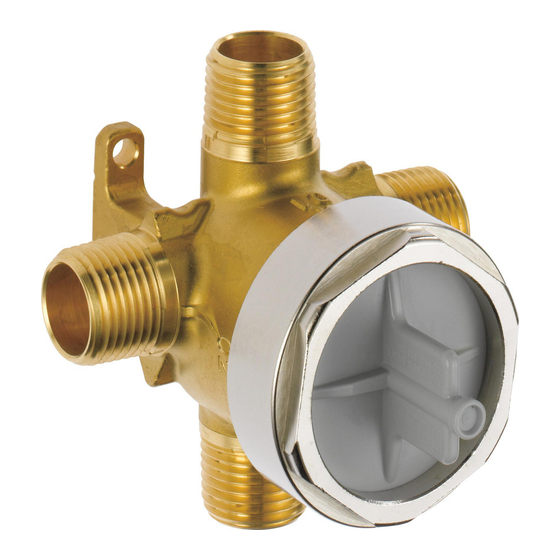

ROUGH VALVE
BODY
■ R11000 (Case Qty. 3)
■ 1/2" Rough-In
STANDARD SPECIFICATIONS
• diverter rough
Three port
• For use with (3) three or (6) six function diverter.
• Forged brass body
• Can be tested with air (200 psi) or water (300 psi)
using supplied test cap
• Refer to the installation instructions for more details
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
• 5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
• ASME A1 12.18.1 / CSA B125.1
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2018 Delta Faucet Company
