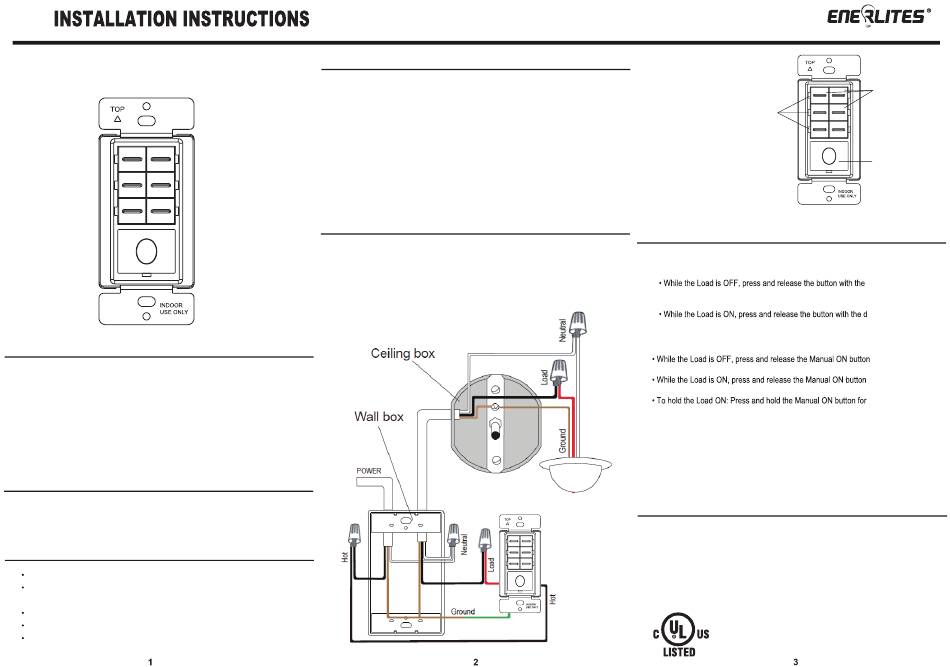

Enerlites HET06A-J Installation Instructions

Preset In-Wall Countdown Timer
1 Min 5 Min
10 Min 15 Min
20 Min 30 Min
SPECIFICATIONS
Voltage ...................................................................................120VAC, 60Hz
Load(Single Pole Circuit)
Tungsten................................................................................................800W
Resistive...................................................................................................6.4A
Fluorescent...........................................................................................800VA
Electronic Ballast..................................................................................800VA
Motor ................................................................................................... 1/4Hp
Time Delay.................................................................1,5,10,15,20,30minutes
Humidity..................................................................95% RH, non-condensing
Operation Temperature............................................................. 32° F--131° F
DESCRIPTION
The HET06A-J is a timer switch with 6 preset time buttons and 1 Manual
ON button. All Loads connect to this timer will automatically turn OFF when
the selected time expires. The 6 selectable times are 1 Min, 5 Mins, 10 Mins,
15 Mins, 20 Mins, 30 Mins.
FEATURES
Seven-button Preset Time Switch
Time Delay
1, 5, 10, 15, 20, 30 minutes
Replace a standard light or fan single pole switch
Work with most common lighting types
Ideal for closet, pantry, garage, laundry room, outdoor lighting and spa.
HET06A-J
WARNING
Turn the power off at the circuit breaker before installing
the Timer.
Read and understand these instructions before installing. It is recommended that
a qualified electrician performs this installation. Make sure to turn off the circuit
breaker or fuse(s) and make sure power is off before wiring the device.
"Caution: High Voltage-Disconnect power supply before servicing"
This device is intended for installation in accordance with the National Electric
Code and local regulations.
Use Copper wires ONLY.
WIRING DIRECTIONS
1. Connect the BLACK wire on the switch to the HOT wire.
2. Connect the RED wire on the switch to the LOAD wire.
3. Connect the GREEN wire on the switch to the GROUND wire.
SETTING/ OPERATING
Preset Buttons: The LED indicator will blink twice to confirm each button press.
There are 6 buttons with preset times of
30 Mins.
turn the Load on for that selected amount of time.
o When the time expires, the Load will automatically turn off.
restart the countdown with the newly selected time.
Manual ON Button: The LED indicator will blink twice to confirm each button press.
The Manual ON button is the large button located below the preset buttons.
ON with the last selected timer preset.
and turn the Load OFF.
Load will turn ON and stay ON. The timer WILL NOT turn the Load OFF.
o Press and release the Manual ON button to turn the Load OFF.
o Press and release the button with the desired time once to keep the Load
on for that selected amount of time.
LED Light: the LED indicator light next to each selected button blinks twice each
time it is pressed to mark the time selected.
WARRANTY INFORMATION
This device is warranted to be free of material and workmanship defects for 2 years from the date of
purchase. Original receipt or proof of purchase from an authorized retailer must be presented upon warranty
claim. ALL claims must be verified and approved by Enerlites, Inc. Warranties from other Enerlites products
1 Min 5 Min
may vary. This warranty is nontransferable and does not cover normal wear and tear or any malfunction,
10 Min 15 Min failure, or defect resulting from misuse, abuse, neglect, alteration, modification, or improper installation. To
the fullest extent permitted by the applicable state law, Enerlites shall not be liable to the purchaser or end
20 Min 30 Min
user customer of Enerlites products for direct, indirect, incidental, or consequential damages even if Enerlites
has been advised of the possibility of such damages. Enerlites' total liability under this or any other warranty,
express or implied, is limited to repair, replacement or refund. Repair, replacement or refund are the sole and
exclusive remedies for breach of warranty or any other legal theory.
Preset Timer
Buttons
1 Min 5 Min
LED
Indicators
10 Min 15 Min
20 Min 30 Min
Manual ON
Button
1 Min, 5 Mins, 10 Mins, 15 Mins, 20 Mins,
desired time once to
esired time once to
to turn the Load
to override the timer
8 seconds. The
