Enerlites HET01-C Installation Instructions

Enerlites HET01-C Installation Instructions

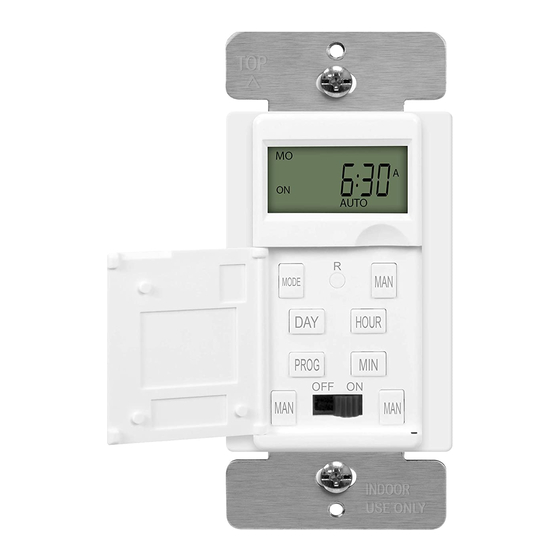

7-day digital in-wall timer

Advertisement

Quick Links

INSTALLATION INSTRUCTIONS

HET01-C/ HET01-3C
HET01-C
SPECIFICATIONS
Voltage ..................................................................................................... 120VAC, 60Hz
Resistive........................................................................................................15Amp, 1800W
Tungsten...........................................................................................................................1200W
Ballast..............................................................................................................................1200VA
Motor..............................................................................................................................1/2HP
DESCRIPTION
The 7-day digital timer is your solution to automated indoor and outdoor lighting. The Timer is
easy to program and is customizable for each day of the week. The HET01-C can replace a
standard single pole wall switch and the HET01-3C can replace a 3-way switch. The HET01
Timer can control incandescent lights, fluorescent lights, flood lights, stereos, or a heavy-duty
load.
FEATURES
• Easily switch between Automatic Timer and Manual Control by pressing the MODE button.
• Anytime in Automatic or Manual mode, the load can be switched ON/OFF manually by
pressing the MAN button or front cover plate when it is closed.
• The large and easy-to-read LCD screen displays the current day of week, time, Auto/Manual
mode, whether the Load is ON or OFF, and in programming, the program settings.
• The Timer can be programmed up to 18 ON and 18 OFF settings.
1
WARNING
7-day Digital In-Wall Timer
Turn the POWER OFF at the circuit breaker before
installing the Timer
Read and understand these instructions before installing. It is recommended that a qualified
electrician performs this installation. Make sure to turn off the circuit breaker or fuse(s) and
make sure power is off before wiring the device. This product is Listed to applicable UL
Standards and requirements by UL. This device is intended for installation in accordance with
the National Electric Code and local regulations. Use copper wires ONLY.
WIRING DIRECTIONS
1. Connect the BLACK wire from switch to the HOT wire.
2. Connect the WHITE wire from switch to the NEUTRAL wire.
3. Connect the RED wire from switch to the LOAD wire.
a. If using 3-way on the HET01-3C, Connect each RED wire to each TRAVELER
wire.
4. Connect the GREEN wire from switch to the GROUND wire or the green GROUND screw
HET01-3C
on the box.
HET01-C
2

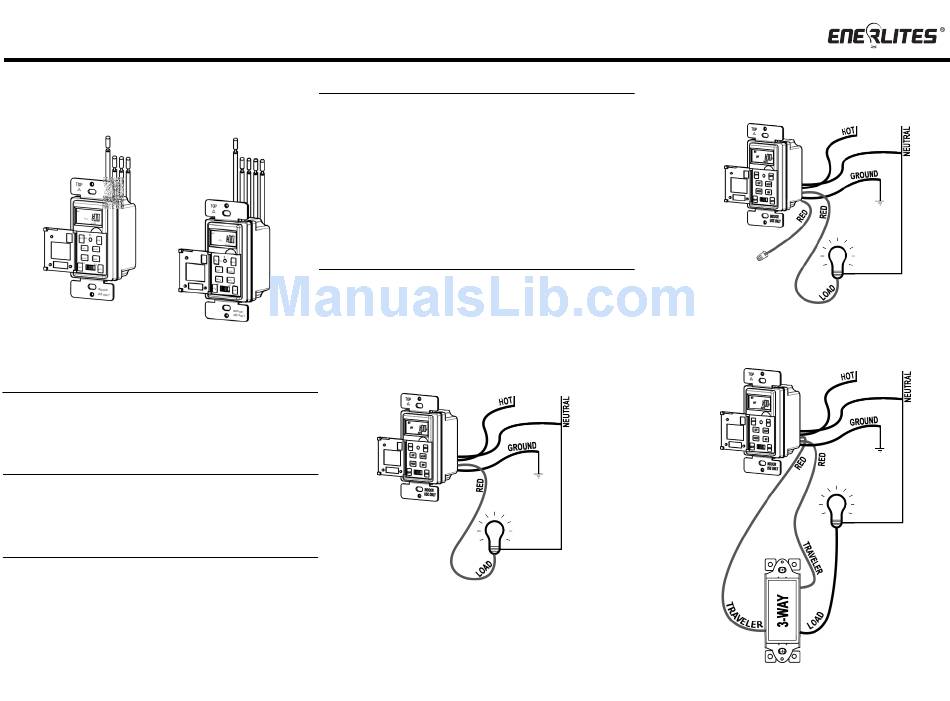

Standard Wiring
HET01-3C
3-Way Wiring
HET01-3C
3
