American Standard MONTERREY 6540.277 Manual

6540.278 Shown
(3-1/2")
GENERAL DESCRIPTION:
Durable cast brass construction. Cast brass valve bodies
with flexible underbody for installation on 6" - 12" centers.
1/2" male threaded inlet shanks with brass coupling nuts.
1/4 turn ceramic disc valve cartridges. Field-convertible
rigid/swivel gooseneck spout with 8" reach. Vandal-
Resistant Wrist Blade handles with blue & red color
indexes.
SUGGESTED SPECIFICATION
Two handle widespread lavatory faucet shall feature cast brass valve bodies with flexible underbody compression fittings for
installation on 6" - 12" centers. Shall feature water-conserving pressure compensating flow outlets. Vandal-Resistant wrist
blade handles. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature convertible rigid/swivel
spout with 8" reach. Fitting shall be American Standard Model # 6540.27_.002.
© 2016 AS America Inc.

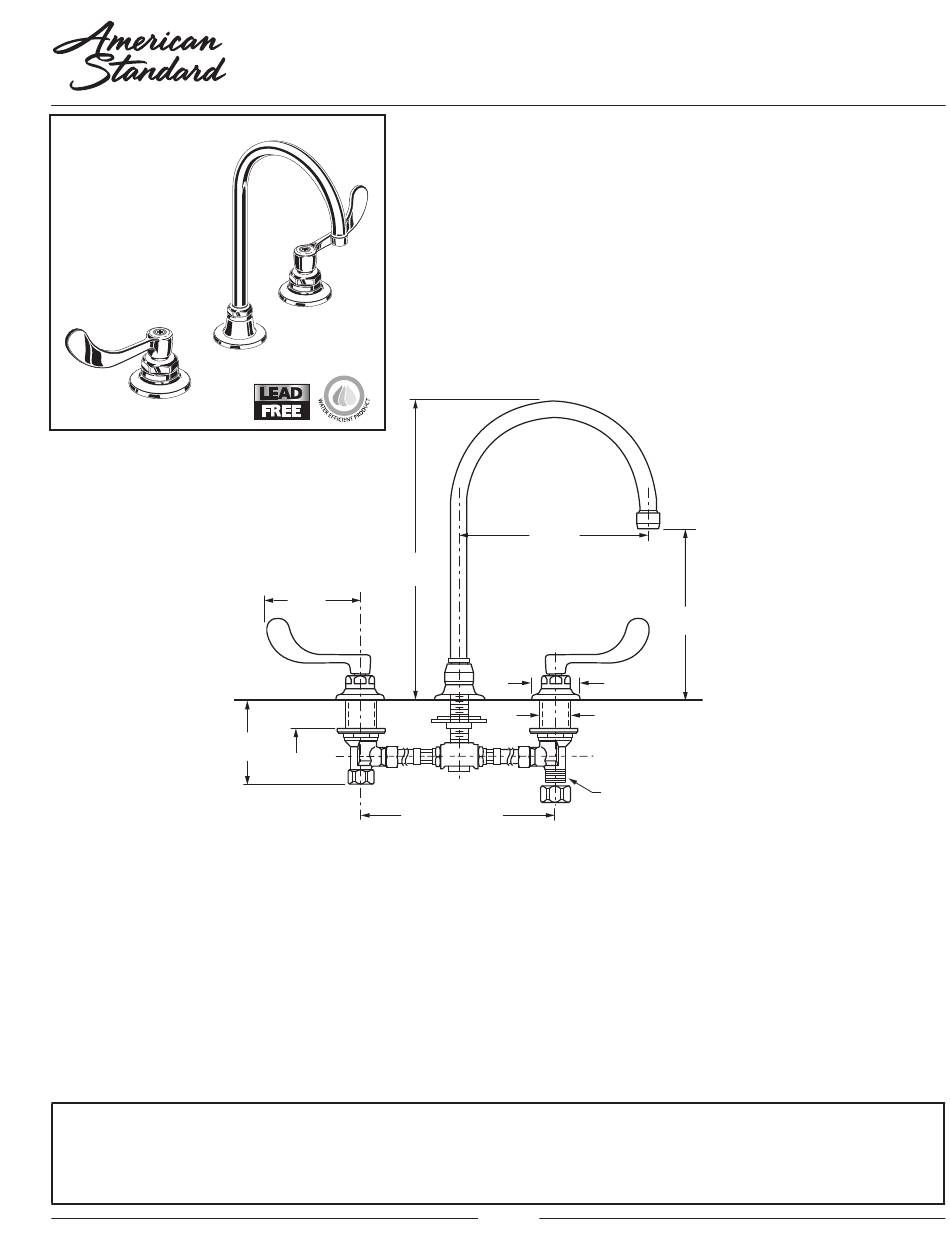

WITH RIGID/SWIVEL GOOSENECK SPOUT WITH 8" REACH AND FLEXIBLE UNDERBODY
267 mm
(10-1/2")
98 mm
(3-7/8")
38 mm
(1-1/2") MAX.
89 mm
152 mm - 305 mm
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
MODEL NUMBER:
❏ 6540.277 Widespread Lavatory
Flexible underbody for installation on 6" - 12" centers.
0.5 gpm Pressure compensating multi-laminar spray.
Field-convertible rigid/swivel gooseneck spout with 8"
reach. Vandal-resistant wrist blade handles. Less drain
and pop-up hole.
❏ 6540.278 Widespread Lavatory
Flexible underbody for installation on 6" - 12" centers.
1.5 gpm Pressure compensating aerator. Field-convertible
rigid/swivel gooseneck spout with 8" reach. Vandal-resistant
wrist blade handles. Less drain and pop-up hole.
203 mm
(8")
35 mm
(1-3/8") DIA.
MOUNTING
HOLES
(6" - 12")
FLEXIBLE
PRODUCT FEATURES:
Pressure Compensating Aerator: Provides a constant
water flow throughout the pressure range.
Solid Brass Construction: Durable. Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridges: Assure a lifetime of
drip-free performance.
Field-Convertible Rigid/Swivel Spout with 8" Reach:
Easily converted in the field.
Lead Free: Faucet contains ≤ 0.25% total lead content
by weighted average.
L57
MONTERREY
152 mm
(6")
51 mm
(2") DIA.
1/2" NPSM
®
