Summary of Contents for Homtone ICE-2581

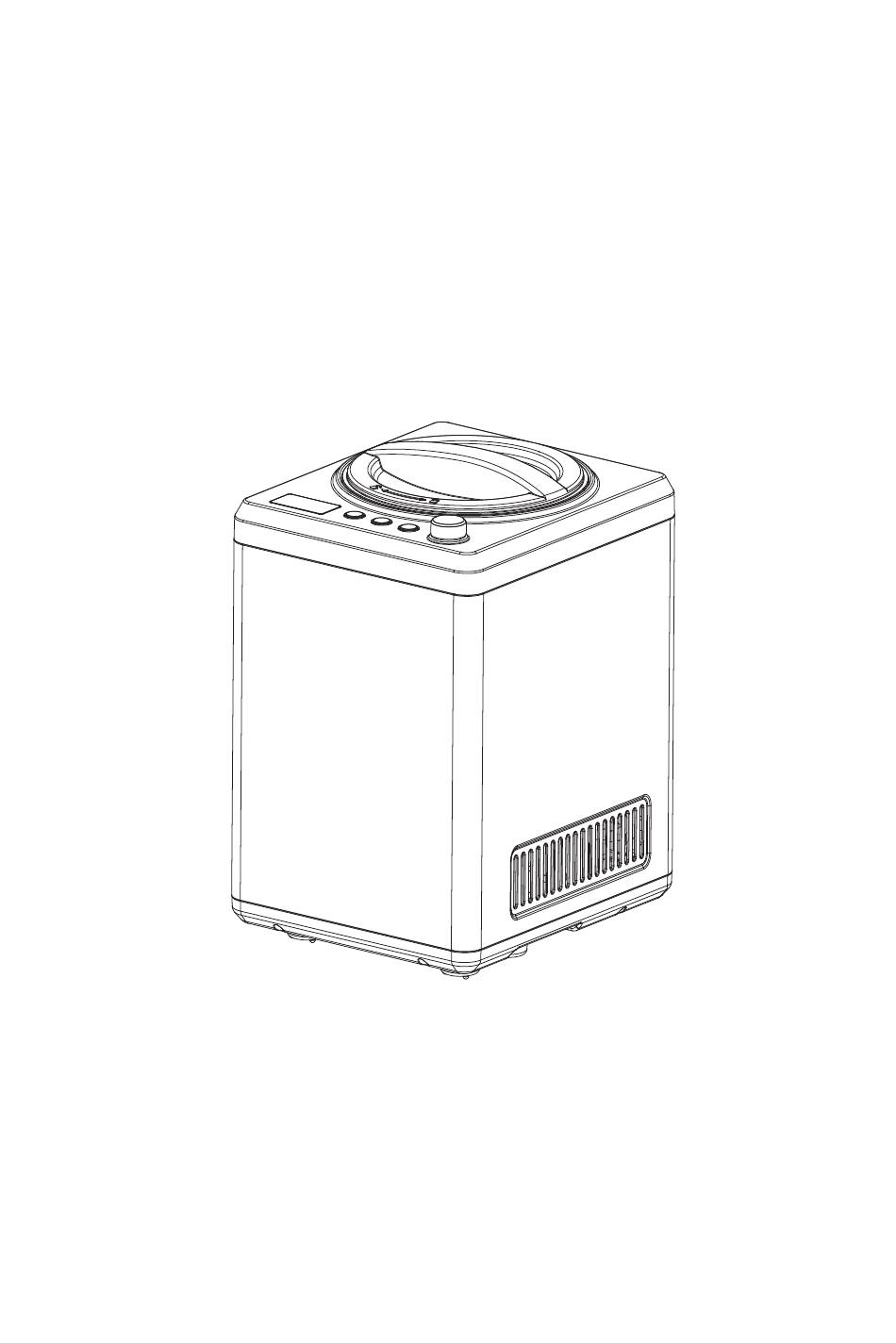

- Page 1 Homtone INSTRUCTION MANUAL Ice Cream Maker Model: ICE-2581 (DS-1133) IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE...
-
Page 2: Important Notices
IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Read all instructions before using. 2. Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the earthing of the socket is in good condition. - Page 3 –Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer –WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. –WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
-
Page 4: Specifications
19. Do not use outdoors. 20. Never clean with scouring powders or hard implements. 21. Please keep the instruction manual. SPECIFICATIONS Model Number ICE2581 Capacity 2.5L Voltage AC 110-120V/60Hz Power Consumption 250W Unit Dimensions 216（L）*273（W）*397（H）mm Packing Dimensions 390（L）*333（W）*472（H）mm PRODUCT FEATURE 1. - Page 5 .PRODUCT INSTRUCTION…… ……… ……… ….... 1) Structure 1. Handle 6. Base board 2. Removable bowl 7. Transparent lid 3. Display cover 8. Mixing blade 4. Buttons 9. Metal panel 5. Housing 10. Vent-hole - 5 -...
- Page 6 2) Control button and silk printing Time increase/Time ON-OFF Button decrease button Start/Pause button Menu button HOW TO MAKE ICE CREAM NOTE: Please thoroughly clean all parts that will contact with ice cream before use, including: cooling bowl, mixing blade, transparent cover, ice cream shovel, etc.
- Page 7 Step 1. Pour the well prepared recipe ingredients in proportion into the removable bowl, then have a uniform mixing (see below picture). Step 2. Then put the loading bowl into the ice cream machine and press it tightly (See below picture). - 7 -...
- Page 8 Step 3. Place the mixing blade into the removable bowl and keep the mixing blade bottom hole fitted well with the motor axis. The put the transparent lid onto the machine and lock it anticlockwise (see below picture). Lock Step 4, Step 5, Step 6 and Step 7. 4.
- Page 9 Step 8. You can add the favorite ingredients by opening the refill cover (See below picture). favorite ingredients by opening the refill cover Step 9. After the operation is over, first press the ON/OFF button to turn off the machine, and then pull out the removable bowl. Pull out the removable bowl Press the ON/OFF button to turn off the machine - 9 -...
-
Page 10: Operation
OPERATION 1. Connect the power supply and plug the power cord into a suitable socket. The shape and voltage of the socket shall be the same as those indicated. Connect the AC127V power supply. 2. Select control buttons. 2.1 Push-button function description (the silk screen printing is next to the button). - Page 11 up to 60 minutes. After 60 minutes, press the right rotation to still display 60:00, the time cannot be increased. If the knob is rotated to the left once, it can be reduced by 1 minute. If the knob is rotated continuously, it can be reduced quickly, and the minimum can be changed to 5 minutes.
-
Page 12: Electrical Diagram
5. CONTROLLING THE VOLUME OF THE INGREDIENTS To avoid overflow and waste, please make sure that the ingredients do not exceed 60% of capacity of the removable bowl (Ice cream expands when being formed). ELECTRICAL DIAGRAM - 12 -... -
Page 13: Maintenance
MAINTENANCE Caution: The plug must be removed before cleaning to avoid electric shock. 1. Take out the mixing blade, wipe it with a dampened cloth 2. Take out the removable bowl, clean it with a dampened soft cloth 3. Wipe the transparent lid and refill lid with a dampened cloth 4. -
Page 14: After Sales Service
The charging bucket Deformation caused by cannot be placed in improper use of loading loading bowl the cold bucket barrel When making Deformation caused by cream improper use of loading loading bowl beginning, the mixing bowl severely scratched or stuck AFTER SALES SERVICE One year warranty service is available from the date of purchase. - Page 15 problems or accidents caused by self-disassembly. ★ If the product is not under warranty, the maintenance fee will be waived and only the parts fee will be charged. Manufacturer reserves the right of final interpretation of the above commitments. PARTS Mixing blade User's guide User manual...
- Page 16 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
