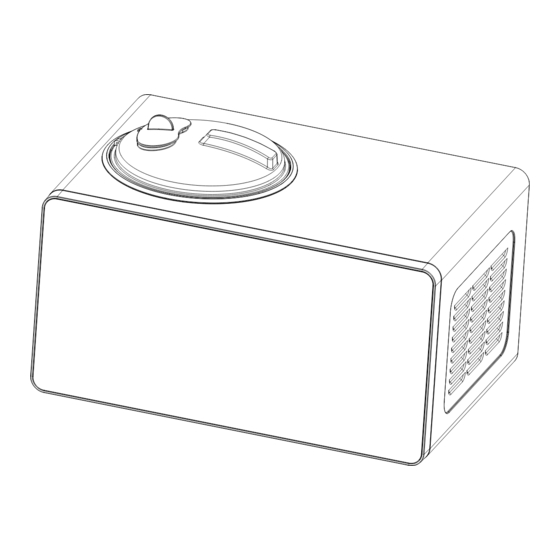

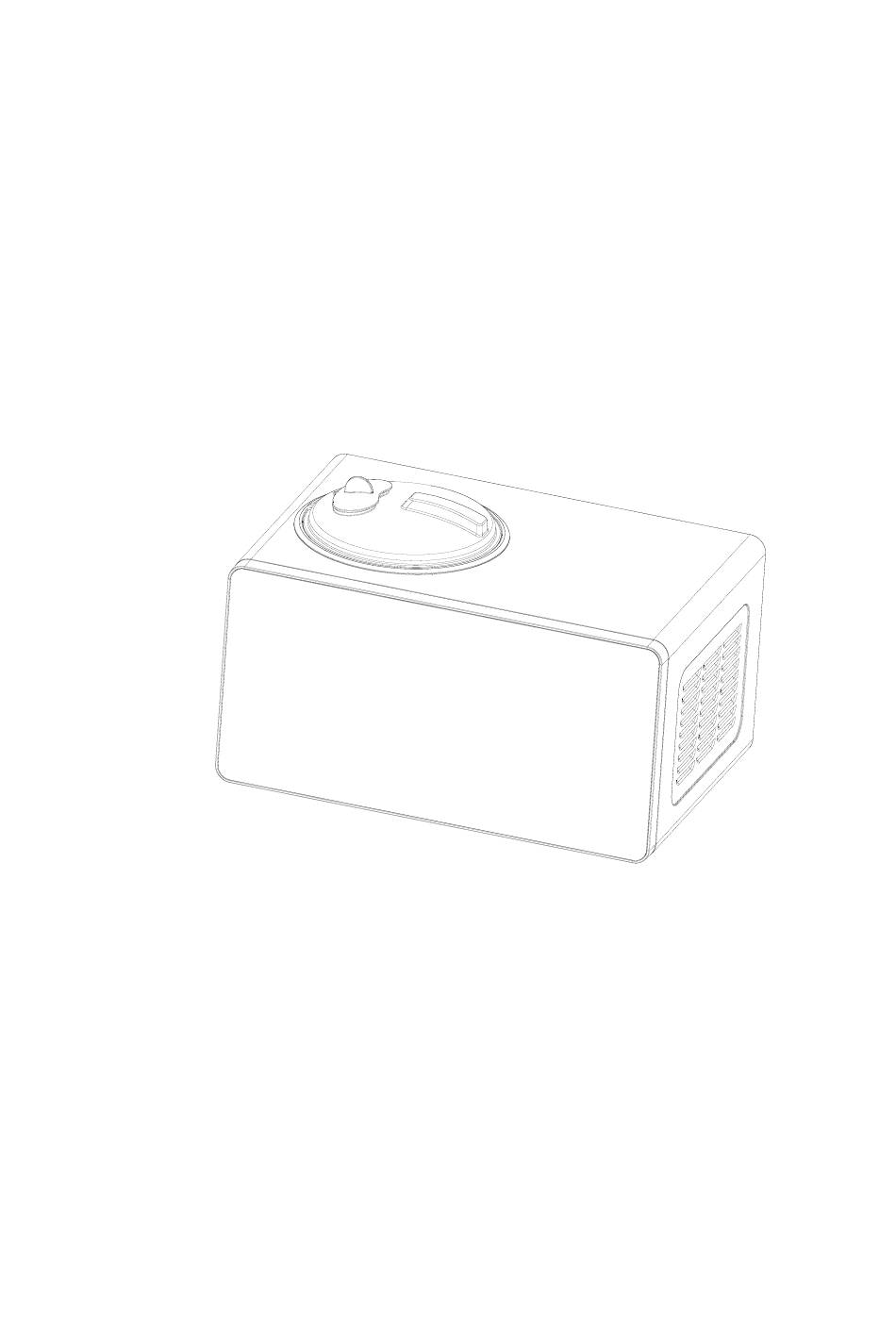

- Page 1 Homtone INSTRUCTION MANUAL Ice Cream Maker Model: ICE-1560Y (DS-1138) IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE...
-
Page 2: Important Notices
IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Read all instructions before using. 2. Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the earthing of the socket is in good condition. - Page 3 –Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer –WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. –WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
-
Page 4: Specifications
19. Do not use outdoors. 20. Never clean with scouring powders or hard implements. 21. Please keep the instruction manual. SPECIFICATIONS Model Number ICE1560Y Capacity 1.5L Voltage AC 110-120V/60Hz Power Consumption 150W Unit Dimensions 400（L）*270（W）*260（H）mm Packing Dimensions 465（L）*333（W）*335（H）mm... -
Page 5: Product Feature
PRODUCT FEATURE 1. A microcomputer automatic control, simple and reliable operation and won’t cost you much trouble. 2. The large touch screen displays the working state, which is more convenient to monitor the working state. 3. Stainless steel metal housing, which is elegant and fashionable. 4. -
Page 6: Control Panel
2) CONTROL PANEL Time display area Medium speed ON/OFF Low speed High speed Decrease Start/P ause Increase Speedy switch Yoghourt mode Stirring mode Softness-Hardness Refrigeration Mode Ice cream mode... - Page 7 HOW TO MAKE ICE CREAM NOTE: Please thoroughly clean all parts that will contact with ice cream before use, including: cooling bowl, loading bowl, mixing fan blade, transparent lid, etc. Before cleaning, you must ensure that the power cord plug is disconnected from the outlet.
- Page 8 Step 3. If choose the ice cream mode, please install the blender blade, if choose the yoghourt, then remove the blender blade. Step 4. Then put the transparent lid onto the machine and lock it clockwise (see below picture). Lock Step 5.
- Page 9 Open the refilling lid, and add the ingredients Step 7. After the operation is over, turn off the machine first, then pull the removable bowl out. Caution: Another common ice cream mode is that the fourth step operation is changed to plug in the power plug, press the POWER button, start the whole machine, and press the START/PAUSE button to start making ice cream.
-
Page 10: Operation
OPERATION 1. Connect the power supply and plug the power cord into a suitable socket. The shape and voltage of the socket must be the same as those indicated on the label. Connect the AC220-240V power supply. 2. Select the control button. For the button description, please refer to the detailed description of the control button and silk screen diagram above. - Page 11 In the ice cream mode, touch the “ ” icon to select the hardness mode, press the increase icon " " once to increase the hardness by one gear at a time, and touch the decrease icon " " once to decrease the hardness by one gear at a time, with a total of three kinds hardness.
- Page 12 3.5. The default time of single cooling mode is 10 minutes. The display of "10:00" needs to increase the time. Please press " " or " " icon. Touch once to increase or decrease 1 minute. Long press for 2 seconds to increase or decrease quickly. The maximum time can be changed to 70 minutes and the minimum time can be reduced to 0 minutes.
- Page 13 to the current setting mode. If the " " icon is pressed and no other operation is carried out within 3 minutes when the stirring motor stops stirring, the compressor will stop working and return to the power on state 10 minutes later, with 3 short beeps. Touch the " "...
-
Page 14: Electrical Diagram
5. Motor protection function With the longer production time, ice cream becomes harder and harder. When the current of the motor increases to a certain value, the motor will stop working to prevent motor damage and ensure the life of the blending motor. 6. -
Page 15: Maintenance
MAINTENANCE Caution: The plug must be removed before cleaning to avoid electric shock. 1) Take out the mixing blade, wipe it with a dampened cloth. 2) Take out the removable bowl, clean it with a dampened soft cloth. 3) Wipe the transparent lid and refill lid with a dampened cloth. 4) Remove the dirty on the body or other places with a dampened cloth, and do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid. -
Page 16: After Sales Service
The transparent lid is The mixing fan blades Put the mixing lifted to the mixing fan not in place, and pay fan in place and blade, and it cannot be attention to the rotate the stuck in place alignment of the transparent hexagon cover in place... - Page 17 or special maintenance service point for repair. Do not disassemble it yourself. The company will not bear any responsibility for quality problems or accidents caused by self-disassembly. ★ If the product is not under warranty, the maintenance fee will be waived and only the parts fee will be charged.
- Page 18 Correct Disposal of this product This marking indicates that this product should not disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
