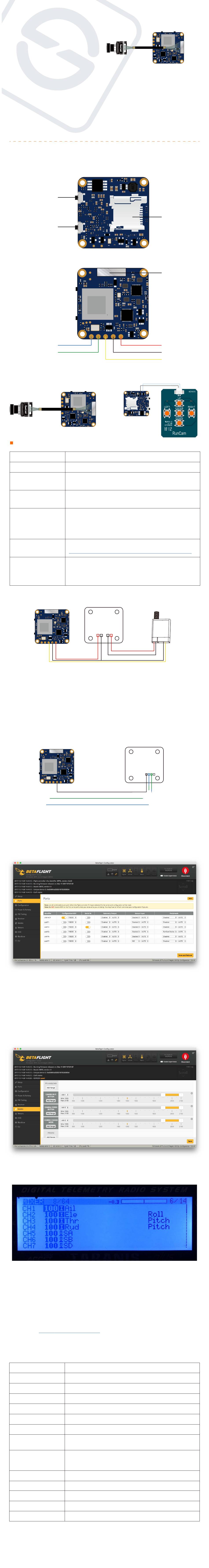

RunCam Split 4-25 User Manual

·Instruction Diagram
OSD Menu Button
Power/Shutter Button
·Lens Module Connection Diagram
·Basic Camera Operation
Powering On/Off
Standby Mode
Video Mode
Mode Switching
OSD Setup Mode
Firmware
Upgrading
Reset
·Transmitter Connection Diagram
Warning:
Current Input ≥1A (Don't powered by VTx)
·Flight Controller Set
Preparation
·
Firmware: BetaFlight Firmware (≥3.2.0),CleanFlight Firmware(≥2.1.0) ,
KISS Firmware (≥1.3-RC30) or INAV Firmware (≥1.7.3).
·
Any available UART interface on the Flight Controller
1. Connect the Split 4 with the UART interface of the Flight Controller
2. Make the Flight Controller recognize the Split 4
For example, we connect the Split 4 to the UART 3 interface on the Flight
Controller: connect the Flight Controller to the computer, then open the configurator
software of the Flight Controller. (Open up the configurator that matches the firmware
you are running, Betaflight Configurator for Betaflight, Cleanflight Configurator for
Cleanflight). In the Peripherals column of the line UART3 (on the Ports tab), select
RunCam Device and click Save And Reboot.
3. Instructions of the functions of the camera and assigning transmitter channels
to them
In the Flight Controller Configurator, navigate to the Modes tab. There are new
CAMERA WI-FI, CAMERA POWER and CAMERA CHANGE modes
·
CAMERA POWER: start/stop the video. When in the OSD of the camera, this is used to
move to the next menu item.
·
CAMERA CHANGE MODE: switch among the two modes: video and OSD
setting mode. When in the OSD of the camera, this will exit the menu
Assign any available channel to the function you need, for example:
·
Assign the AUX2 to the CAMERA POWER, range 1900-2100
·
Assign the AUX3 to the CAMERA CHANGE MODE, range 1900-2100
4. Assign the channel to the switch of the controller
Please choose your Model on the controller, then access to the MIXER interface and
assign the channel to the switch of the controller. Take opentx 2.2.0 for example, assign
the channels CH5, CH6 and CH7 to SA, SB and SD respectively
5. Test
Power the Flight Controller and the Split 4
·
Set the SA to the bottom, the camera starts/stops the video
·
Set the SD to the bottom, the camera switches among the two modes:
video and OSD setting mode
·Technical Support
Please visit: https://support.runcam.com
·Parameter
Model
Sensor
Field of View(FOV)
Video Resolution
Video File Format
TV Mode
Interface
Max Micro SD Card
Supported
Power Input
Lens Module Size
Mounting Hole Distance
PCB Size
Working Current
Weight
RunCam Split 4-25
RX
TX
Long press the Power/Shutter button
Camera Status Light:
Camera Status Light:
Press the Power/Shutter button to start/stop recording.
In Standby Mode, long press the Mode Switch button to
cycle through the two modes: Video/OSD settings.
Camera Status Light:
• Press the Power/Shutter button to move to a setting.
• Short press the Mode Switch button to change setting.
• Long press the Mode Switch button to exit the menu.
Camera Status Light:
https://www.runcam.com/download/runcamsplit3series
In standby mode, press the Mode Switch button three times
in rapid succession (within 2 seconds). When resetting is
complete, the status light (orange) blinks twice, and the
camera automatically shuts down.
5-20V
GND
TX
RX
Split 4
SONY 13MP
140°
4K@30fps/2.7K@60fps/2.7K@50fps/1080P@60fps
MP4
NTSC (720*480)/PAL (720*576) Switchable
UART
128G(Recommend U3)
DC 5-20V (Non-direct power supply from battery,
Powered direcly with battery will generate surges and burn
the camera.)
14*14mm
25.5*25.5mm
29*29mm
MAX 450mA @5V
10.2g
www.runcam.com
User Manual
Side A
Side B
Blue is On
Blue blinks
Orange is On
Orange blinks
PDB
Power in
GND
GND
Video
MicroSD Slot
Sensor Connector
VCC + （5-20V)
GND
Video
Video Transmitter
FC
UART Interface
GND
RX
TX
