GO Industries 33601 Installation Instructions

420 N. Grove, Richardson, TX 75081
Tele: (800) 527 - 4345 Fax: (800) 442 - 5263
Web site: www.goindustries.com
E-mail: sales@goindustries.com
______________________________________________________________________________________________

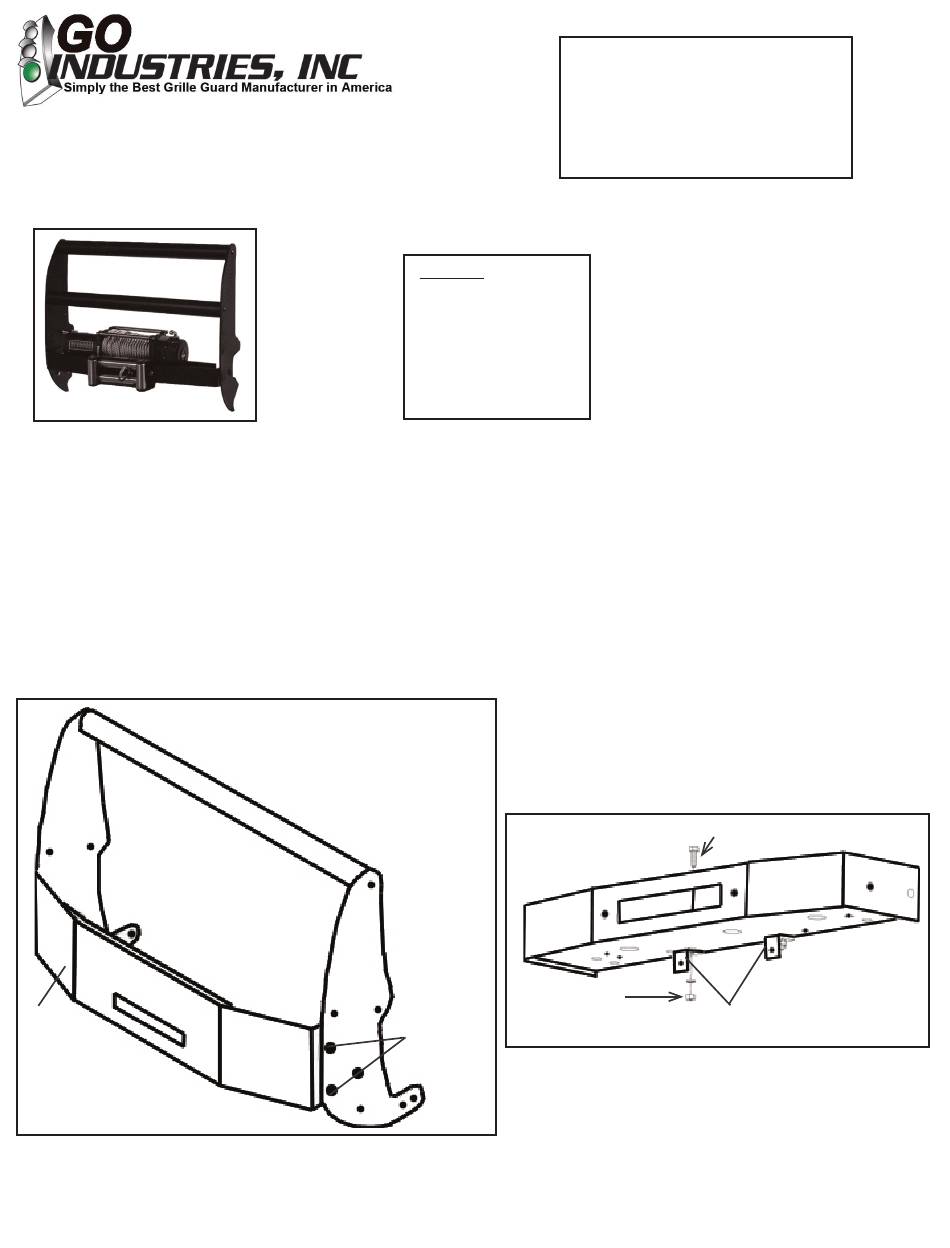

Diagram 1
1. Remove the contents from the box and check for missing pieces or damage. If parts are missing or damaged, contact the original place of pur-
chase. Read the instructions completely before beginning. Two people are strongly reccommened for this install.
2. Installation of Winch Carrier: Using Diagram 2 install the winch carrier between the uprights on grille guard. Use (6) 1/2" x 1" carriage bolts to in-
stall the winch carrier. Place (1) 1/2" lock washer and (1) 1/2" nut onto carriage bolt. Hand tighten at this time. After Grille Guard has been tightend
then tighten all carriage bolts.
3. If a front license plate is required in your state, attach the license plate brackets to the bottom of the winch carrier with the (2) 1/4 x 3/4" HH bolts,
(2) 1/4" hex locking nuts as shown in Diagram 3.
Winch
Carrier
_____________________________________________________________________________________________________________________________
Page 1 of 1 pages 02/09
Parts List:
1 - Winch Carrier
2 - License Plate Brackets
4 - 1/4" Hex Locking Nuts
4 - 1/4" x 3/4" HH Bolts
8 - 1/2" Lock Washers
8 - 1/2" Hex Nuts
16 - 1/2" x 1" Carriage Bolts
1/4" Hex
Locking Nut
1/2" Carriage
Bolts
Diagram 2
Thank you for choosing Go Industries' products. For additional installation
assistance, please call Technical Support (800) 527-4345 or (972) 783-7444
Winch Carrier
Installation Instructions
33601
1/4" x 3/4" HH Bolt
License Plate
Holders
Diagram 3
