Summary of Contents for EarthQuake Image-5

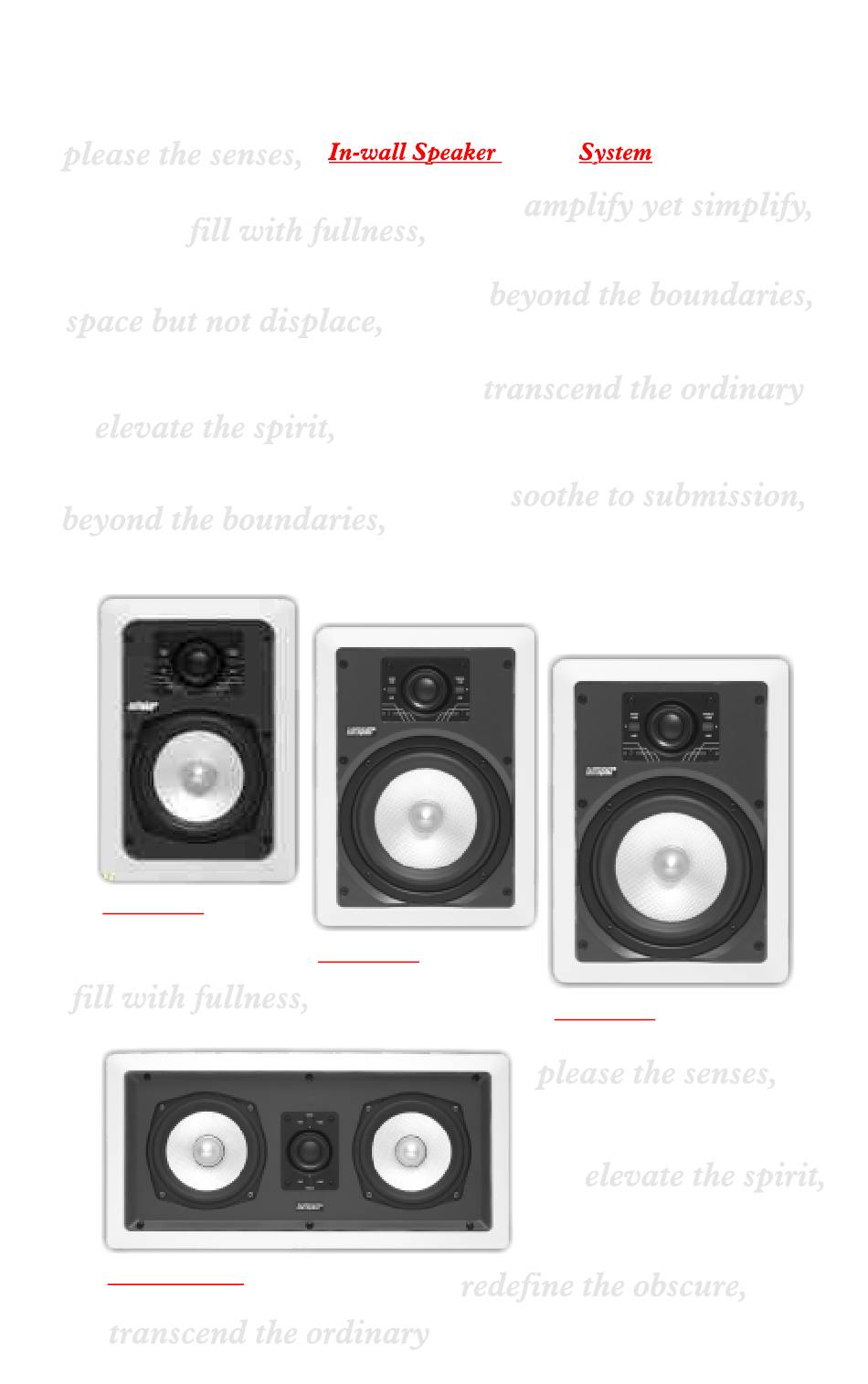

- Page 1 Imãge Imãge In-wall Speaker Systems Technical Guide Imãge-5 Imãge-6 Imãge-8 Imãge-C25 www.earthquakesound.com...
- Page 2 They are also great for rear channel surround sound application, or for a remote location. The Earthquake Imãge drivers are equipped with TURN’N’LOCK™ mechanism for easy installation.
- Page 3 Features: Fiber impregnated Kevlar type weave woofer, with 1.5” high temperature voice coil. One inch (1”) Titanium dome swivel tweeter with Neodymium magnet. Elaborate filters networks: High pass 18dB/Oct. @ 1kHz Low pass 18dB/Oct. @ 1kHz Switched +/-3dB tweeter level adjustment.
-
Page 4: Installation
Installation: Locate & mark the 2x4’s. Outline the hole using the supplied speaker template - stay clear from the 2x4’s. Using a drywall saw, cut out the opening. Attach speaker wire and insert the Imãge speaker into the wall opening. Align the speaker in position and tighten the screws evenly to secure the unit. -
Page 5: Specifications
Specifications 1” silk dome, high definition, swivel Neodymium tweeter 3dB bass boost/cut 3dB treble/cut Corrective phase plug 5.25” long excursion woofer Easy-install “Turn-N-Lock” mechanism Elaborate filters networks High pass @ 3kHz, 18dB/Oct Low pass @ 3kHz, 18dB/Oct Bandwidth 65Hz to 21kHz Imãge-5 1”... -
Page 6: Five (5) Year Limited Warranty
Earthquake dealer/installer; otherwise, the warranty will be only for 90 days. Earthquake agrees to repair or replace - at our option - all such defective parts at no charge for labor or materials, subject to the following provisions: Inspection must... - Page 7 WARRANTY REGISTRATION & INFORMATION CARD PLEASE RETURN THE WARRANTY CARD WITHIN 10 DAYS FROM THE DATE OF PURCHASE Required Information First name: ___________________________________________________ Last name: ___________________________________________________ Street address: ___________________________________________________ City: _____________________ State: _________ Zipcode: ____________ Phone number: ___________________________________________________ Model number: ___________________________________________________ Date of purchase:__________________________________________________ Purchase price: ___________________________________________________ Serial number: ___________________________________________________...
