Summary of Contents for EarthQuake Cinenova Clarte IW-C5

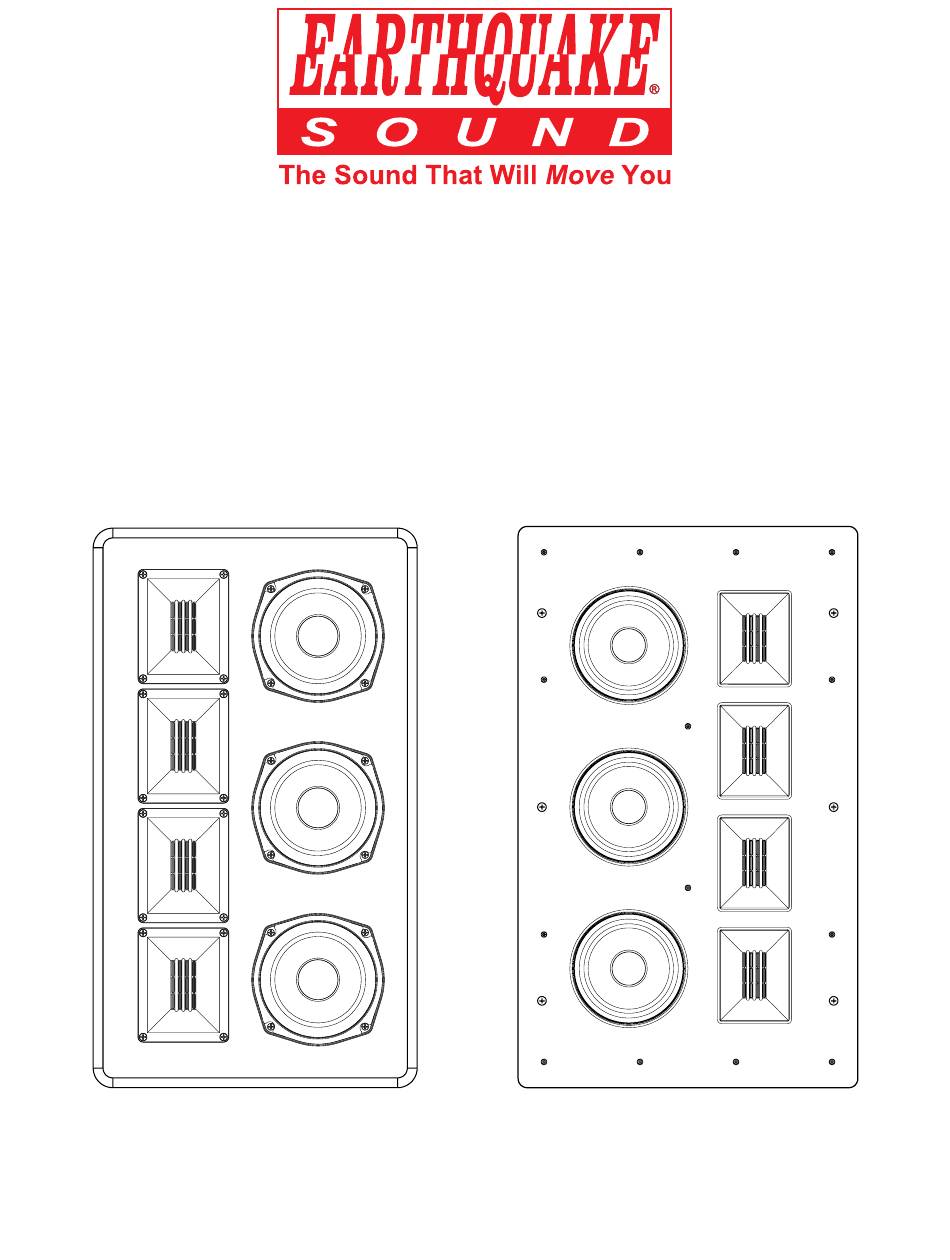

  • Page 1 Cinénova Clarté In-Wall & On-Wall LCR Speaker Earthquake Sound Corp. (510) 732-1000 | U.S. Toll Free: (800) 576-7944 www. earthquakesound.com...
  • Page 2 Fax: 510-732-1095 © 2024 Earthquake Sound Corporation. All rights reserved. This document should not be construed as a commitment on the part of Earthquake Sound Corporation. The information is subject to change without notice. Earthquake Sound Corporation assumes no responsibility for errors that may appear within this document.
  • Page 3 5.25" carbon fiber cone woofers for distortion-free bass and four 2" ultra-fast ribbon tweeters for remarkable sound quality with pinpoint accuracy. With Earthquake’s Cinénova Clarté LCR, you will hear more details in music and movies with elegant sound reproduction and tonal balance.
  • Page 4 3. Gold plated spring loaded terminals 1 Removable Grille 4. Cross style mounting bracket 1 Installation Manual 5. Center wiring groove 6. Wall/cabinet bushing 7. Turn-N-Lock™ mechanism (x6) 8. Turn-N-Lock screw (x6) 4 Cinénova Clarté Manual Earthquake Sound Corp. www.earthquakesound.com...

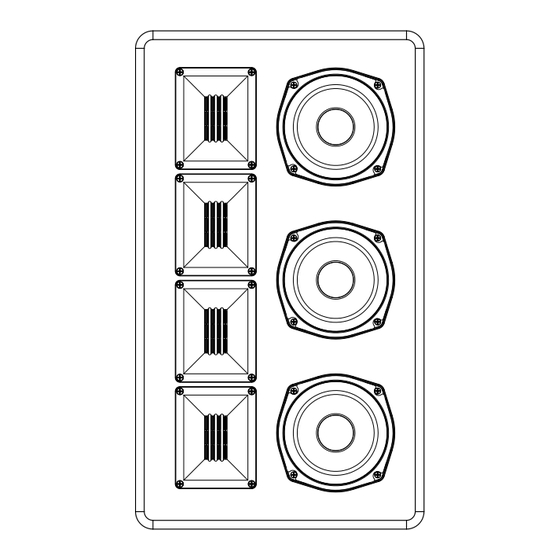

  • Page 5 On-Wall Overview 1. 5.25" Long strand fiber woofer cone 2. 2" Ribbon tweeters 3. Gold plated spring loaded terminals 4. Cross style mounting bracket 5. Center wiring groove 6. Wall/cabinet bushing Specifications are subject to change without notice Cinénova Clarté Manual 5...
  • Page 6 Coverage Angles 122°°Horizontal 122°°Horizontal Impedance 8-Ohm Impedance 8-Ohm 96dB ± 3dB 96dB ± 3dB Weight 23.58 lbs (10.70 kgs) Weight 23.58 lbs (10.70 kgs) Mounting Depth 3.91╬ (99.40mm) Mounting Depth 3.91╬ (99.40mm) 6 Cinénova Clarté Manual Earthquake Sound Corp. www.earthquakesound.com...
  • Page 7 On-Wall Specifications 4.33" 110.20mm 22.44" 570mm 3.93" 100mm 12.99" 330mm Power Handling 120 WRMS Frequency Response 90Hz–30kHz Sensitivity 92dB 1w/1m Impedance 8-Ohm 92dB ± 3dB Weight 20.95 lbs (9.50 kgs) Specifications are subject to change without notice Cinénova Clarté Manual 7...
  • Page 8 The illustration above demonstrates how the on-wall and in-wall Clarté can be positioned for a typical left, right, and center channel home theater setup. Note that the units should be positioned so that the tweeters are on the outside. 8 Cinénova Clarté Manual Earthquake Sound Corp. www.earthquakesound.com...
  • Page 9 Speaker Placement The Cinénova Clarté speakers were designed to be mounted either on or flush with the walls depending on the model. To optimize their acoustics you should follow these simple guidelines. For the best stereo reproduction, the speakers should be placed an equal distance from your listening position and separated so that the angle between them is be- tween 40°...
  • Page 10 Speaker Placement Cont. 100° 80° 65° Specifications are subject to change without notice Cinénova Clarté Manual 9...
  • Page 11 This will ensure that the speaker is firmly secure inside of the wall. PLACE THE GRILLE Align the speaker grille into position. The grille will magnetically attach itself to the plate. 10 Cinénova Clarté Manual Earthquake Sound Corp. www.earthquakesound.com...
  • Page 12 Speaker Installation (On-Wall) Use the built-in cross mounting brackets to mount the on-wall Clarté. Because the the speaker weighs over 20 lbs; it should be mounted to either a wall stud using M4 sized screws (not included) or spring Vertical Installation loaded toggle bolts if not mounted to a stud.
  • Page 13 • Product/part damaged due to poor packaging or abusive shipping conditions. • Subsequent damage to other products. A warranty claim will not be valid if the warranty registration card is not properly filled & returned to Earthquake with a copy of the sales invoice.
  • Page 14 Notes...
