Edwards Signaling 7007B-N5 Series Installation Sheet

7007B-N5 Audible/Visible Signal-Strobe
Installation Sheet
Description
The 7007B-N5 series audible/visible signal-strobes are UL
Listed for general purpose signaling applications.
Table 1: Models
Number
7007BA-N5
7005BB-N5
7007BG-N5
7007BR-N5
7007B-N5
© 2013 UTC Fire & Security Americas Corporation, Inc.
Description
Amber lens
Blue lens
Green lens
Red lens
Clear lens
Installation
WARNINGS
• Electrocution hazard. A qualified electrician familiar with
National Electrical Code and local code requirements must
install this product. Failure to follow the safety precautions
in this installation sheet could result in product or property
damage, or severe personal injury or death.
• Electrocution hazard. To reduce the risk of shock, do not
remove the lens or tamper with the unit when the circuit is
energized. Disconnect power and allow five (5) minutes for
stored energy to dissipate before starting work or
disassembly. High energy could be stored in the strobe
circuit once it is energized.

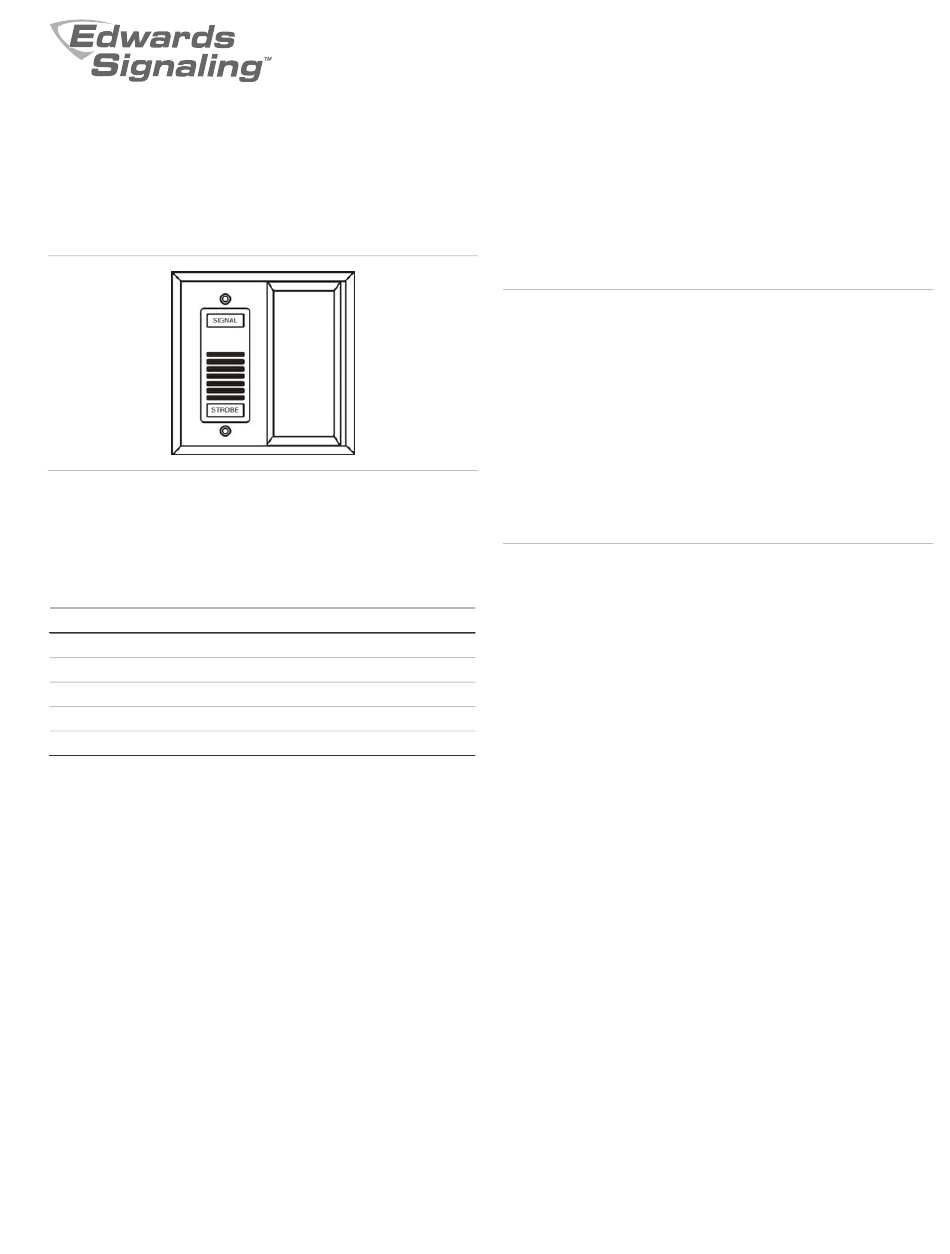

The signal-strobe (Figure 1) can be mounted on a Listed
single-gang 2 × 4 in. (51 × 102 mm) electrical box,
double-gang 4 × 4 in. (102 × 102 mm) electrical box, or
standard 4 × 4 in. (102 × 102 mm) junction box with a plaster
ring.
To install the signal-strobe:
1. Install an appropriate electrical box using suitable
hardware.
2. Connect the wire leads as shown in Figure 2.
3. Mount the device to the electrical box. Secure it using two
screws (supplied).
4. Perform an operational test.
1 / 2 P/N P-047550-1871-EN • REV 04 • ISS 30APR13
