GEONFINO 06974346350164 Manual

keypad handle setting
Please keep press the Button of the Spindle. Then,
insert the spindle into the Knob. (The spindle bump
should be aligned with the hole of the knob) Make
sure that the Button is locked into the hole of Knob.
The connected spindle pushes the knob into the
groove so that the knob is flush with the groove.
Correct
Wrong Wrong
Please note that, If the Knob do not be fully inserted into the lock,
the front handle with spindle would not be able to rotate normally.

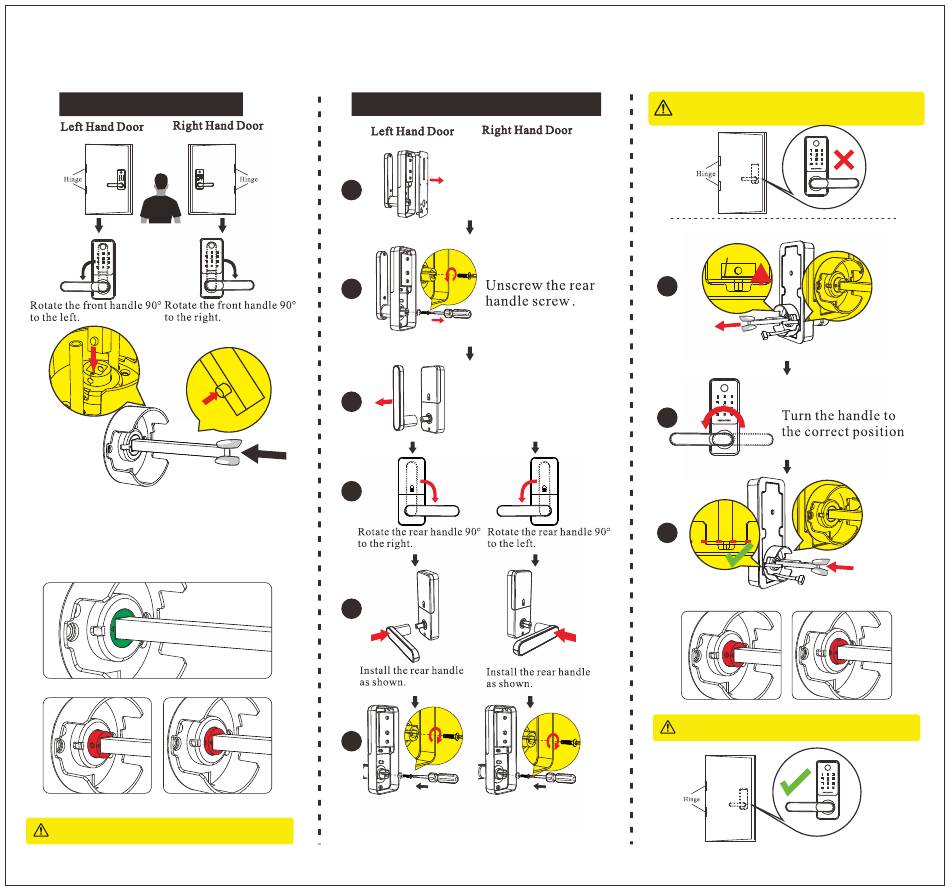

Front/Rear Handle Direction Setting
Interior assembly handle setting
1
2
3
4
5
6
Fix the rear handle
with screws.
Remove the mounting
plate
Remove the rear handle.
Fix the rear handle
with screws.
If you set the front handle at the wrong direction, please
follow the instruction below, before installation.
Groove
1
Pull out the Spindle and Knob.
2
3
Insert the Spindle and Knob into front handle.
Wrong Wrong
Please note that, If the Knob do not be fully inserted into the lock,
the front handle with spindle would not be able to rotate normally.
