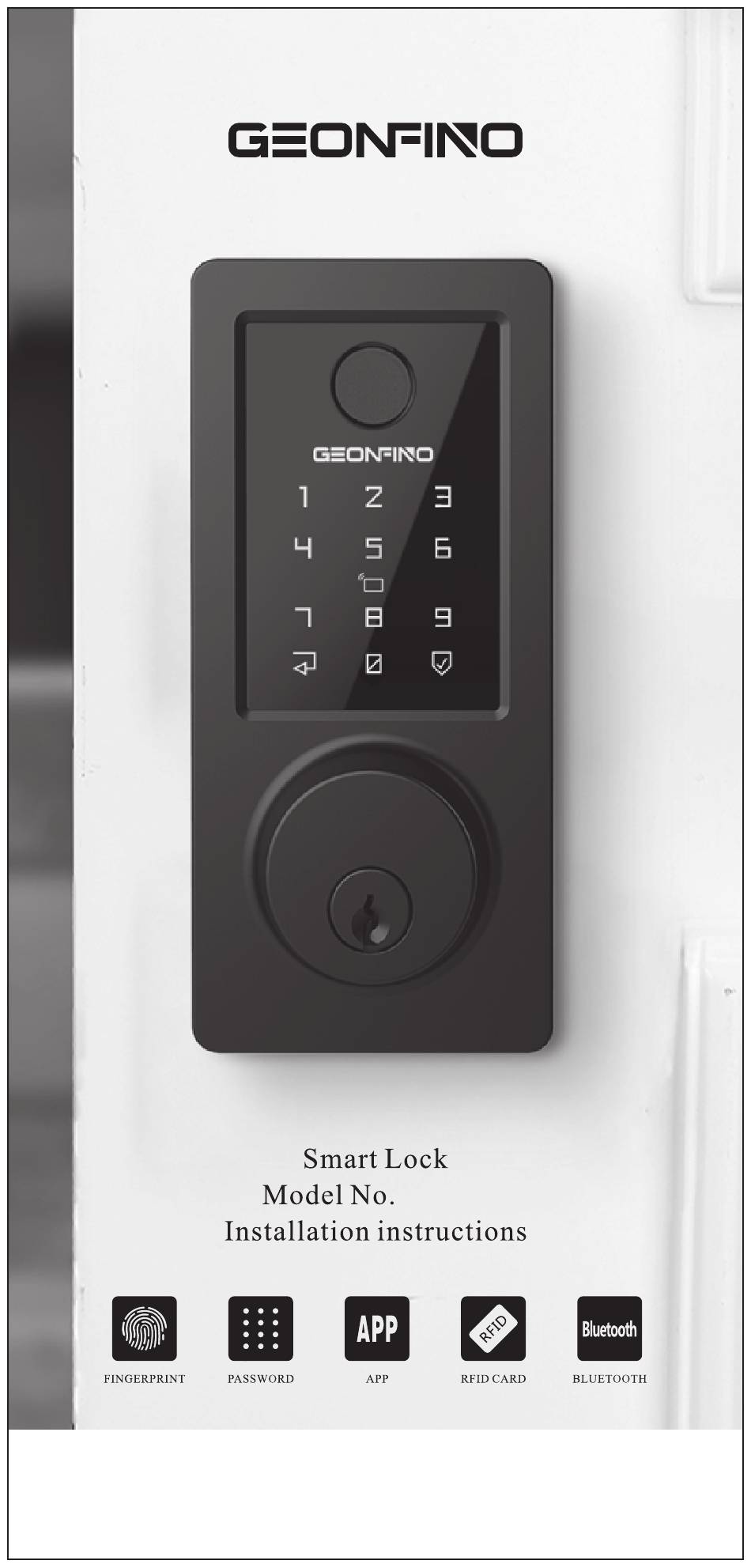

- Page 1 G5 Pro Please keep and read these instructions before installation, we also prepared an instructions video to help you on our Amazon Page. If you need further assistance, please contact Customer Service by email:geonfino@afterservice.vip...
-
Page 2: Customer Service
Installation Video Gateway management LowPower/Emergenct Power AboutGEONFINO and Customer Service... -
Page 3: Installation Video
Installation Video SCAN ME Please scan the QR code to watch installation video for the smart lock before you install it. 1. How to Confirm the direction of the door SCAN ME 2. How to add a RFID card SCAN ME 3. - Page 4 F. Strike/Strike Box G. Waterproof Rubber...
- Page 5 Measure to confirm that the hole in the door edge is 1"(25mm). 1-2/5" And measure to confirm that the door is 1-3/5" to 2"(35mm to 1" (25mm) 50mm) thick. Measure the size of the square slot is 2-3/8"x 1- 1/50"(60x26mm). 1-1/50"(26mm)
- Page 6 180° 180°...
- Page 8 The wired IC needs to × be under the deadbolt. 1 1/2" ~ 2 1/8" The wired IC needs to × be under the deadbolt.
- Page 9 Put the mounting plate on the waterproof rubber pad The wired IC and tail bar go through the hole of mounting plate Make sure the wired IC is not too long.
- Page 10 Look at the door from the OUTSIDE Adjust the Toggle Switch (in the bottom right corner of the back panel) and Turn Piece. Flip to L for Left-handle Flip to R for Right-handle Horizontal for Left-handle Vertical for Right-handle...
- Page 11 Connect the cable and ensure it's a tight connection, and that the tail bar is inserted in the turnpiece hole.
- Page 13 RFID Card needs to be added first Long press " " to LOCK the door from outside or inside. Click " " to UNLOCK the door from outside or inside. Note: Please keep your phone near the door lock within 32.8ft (10m).
- Page 14 Protect your User Codes and Master Code. Protect your key. It is suggested to put it outside the door, such as your car. Restrict access to your lock’s interior assembly and routinely check your settings to ensure they have not been altered without your knowledge.
- Page 15 Android Mobile Phone--Please earch "TTLock" from Google Play. Apple Mobile Phone--Please search "TTLock" from App Store.
- Page 16 Note: Please keep your phone near the door lock within meters. After adding the lock, the initial password: 123456 will become invalid. eKeys Passcodes Fingerprints Cards Settings Authorized Records Admin SendeKeys Timed Permanent One-time Recipient EnterRecipient’ sAccount Name Pleaseenterhere StartTime 2021..11.3015:00 eKeys Passcodes...
- Page 17 eKeys SendeKey ReseteKey eKeys Passcodes Fingerprints Cards Settings Authorized Records Admin The password that has been set can only be unlocked, but cannot be locked. The permanent GeneratePasscode passcode must be Permanent Timed One-time Erase Custo used within 24 hours after it is Name EnteranameforthisPasscode generated,...
- Page 18 GeneratePasscode Permanent Timed One-time Erase Custo Name EnteranameforthisPasscode ThisPasscodeMUSTBEusedwithin6HoursfromtheCurrent TimeoritwillbeSUSPENDEDforSecurityReasons.This PasscodecanONLYbeusedONCE. GeneratePasscode GeneratePasscode Erase passcode Permanent Timed One-time Erase Custo Name EnteranameforthisPasscode Erase Passcode is VALID for 24 Hours ThisPasscodeisVALIDfor24HoursfromtheCurrentTime. Caution-AllPasscodesusedonthisLockwillbeDELETED onusingthisPasscode. from the Current Time. Caution -All Passcodes used on this Lock will be GeneratePasscode DELETED on using this Passcode.
- Page 19 Passcodes PasscodeInfo Passcode 85895418 Name ValidityPeriod Permanent Issuedby XXXXXXXXXXX TimeIssued eKeys Passcodes Fingerprints Cards Delete Settings Authorized Records Admin AddCard Recuring Permanent Timed Name PleaseenteraName Cards Cards AddCard ClearCard 2021.10.2716： 59 Permanent 2021.10.2716： 59 Permanent ermanent Sendcardremotely Add a RFID card Click "...
- Page 20 There are three options for you. Select "permanent", "timed" or "recycling" as needed. Enter the name of the RFID card, and click "OK". Then the RFID card can be successfully added when it is close to the card sensing area of the lock for 2-3 seconds.
-
Page 21: Fingerprint Management
We can also choose a single RFID card to delete. Cards CardInfo CardNumber 2995684444 Name 2021.10.2716： 59 Permanent ValidityPeriod Permanent Operator XXXXXXXXXXX Time 2021.10.2716： 59 Records Delete Fingerprint management Fingerprint management is similar to IC card management. After adding a fingerprint, you can use the fingerprint to unlock the door. -
Page 22: Delete Fingerprint
Delete Fingerprint Click the fingerprint you want to delete, then click "Delete". Fingerprint FingerprintInfo FingerprintNumber Search 457610919888064 Name 2021.10.2716： 59 Permanent ValidityPeriod Permanent 2021.10.2717： 59 Permanent Operator Time 2021.10.2717： 59 Records Delete It records who comes and goes, and when for 24/7 access logs, get all records about the door unlock/lock anytime and anywhere. - Page 23 In the case of a large number of keys, you can use the group management module. The administrator can transfer the lock to other users or to the apartment (Room Master user). Only the account that manages the lock has the right to transfer the lock. The account of the apartment transfer receiver must be the administrator account.
- Page 24 Auto Re-lock Mode Auto Re-lock Mode can be set up in APP. (5s, 10s, 15s, 30s, 60s, Custom). When the lock be unlocked via APP, passcode or RFID card, it will re-lock automatically in the reset time, eKeys Passcodes Fingerprints Cards Settings Authorized...
-
Page 25: Gateway Management
Gateway management (Gateway needs to be purchased separately) The Smart lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record. - Page 26 External battery pack...
- Page 27 eKeys Passcodes Fingerprints Cards Settings Authorized Records Admin Note: This operation need the wired IC and battery to be installed. This button is behind the Interior assembly. Reset button...
- Page 28 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 29 Thank you very much for your purchase! We are so honored to have you as our customer, and we have great confidence to provide you with premium products and friendly service. Valuable Customers, if you like our products and service, please share your wonderful experience with us and other customers, we will be very grateful.
