LiteRadio 2 SE Radio Transmitter
BETAFPV

Advertisement

loading
Need help?

Need help?

Do you have a question about the LiteRadio 2 SE and is the answer not in the manual?

Questions and answers

Related Manuals for BETAFPV LiteRadio 2 SE

Summary of Contents for BETAFPV LiteRadio 2 SE

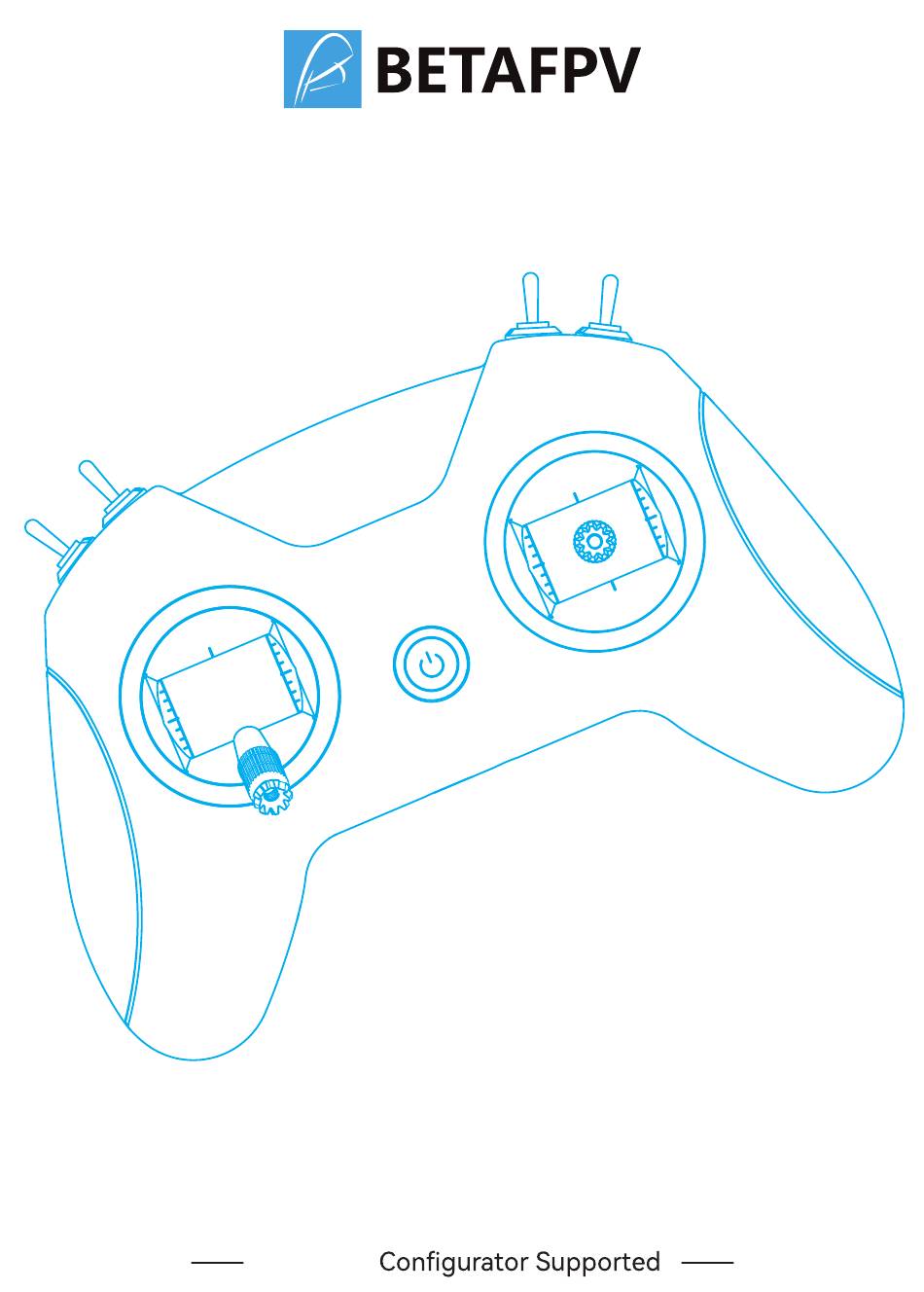

  • Page 1 LiteRadio 2 SE Radio Transmitter BETAFPV...
  • Page 2 LiteRadio 2 SE is a radio controller designed primarily for RC models, including multicopters, airplanes. It gives you more than you ever thought possible from an el 8-channel radio. ● 8 channels in total. ● USB Joystick or most practice simulator.

  • Page 3: Button Functions

    1.Button Functions There are three buttons on remote control radio transmitter. ● Power Button: Turn the radio transmitter o on. ● BIND Button: Enter binding mode after radio transmitter is powered on. ● SETUP Button: Enter joystick calibration mode after radio transmitter is powered 2.Pow POWER ON: Long press the power button on the radio controller for 3 seconds until it beeps three times (do re mi) then release.
  • Page 4 4.Binding the Receiver There are the steps to make the LiteRadio 2 SE enter binding status. 1. Power on the remote control radio transmitter and wait for its system to load completely. LED ring is solid blue. 2. Enter receiver's binding mode, and wait for it to bind with the radio;...
  • Page 5 LED before buzzer alarms will change, according to the tables above.  Note: LiteRadio 2 SE only work with D16 ACCST 1.X Frsky protocol. So if you use a Frsky receiver with D16 ACCST 2.X version or ACCESS version, binding will fail.
  • Page 6 ● Install driver from PC automatically, prompt box pops up after successful installation. Then, remote control radio transmitter works normally. Setting up a device We're setting up 'BETAFPV JoyStick'. Bluetooth & other devices Other devices BETAFPV JoyStick User needs to manually install driver if PC doesn't install automatically or installed incorrectly.

  • Page 7: Joystick Calibration

    8.Joystick Calibration The joystick data may o ter it has used for a period of time (if joysticks is hit by physical). User need to re-calibrate joysticks based on following steps: ● After powering on, press SETUP button on the back of remote control radio transmitter, it hears two "Bee Bee"...
  • Page 8 How to recognise if your radio tr AFPV ator? Remove the cover on the back of the transmitter and there is a label, comes with "BETAFPV DO NOT power on the transmitter and connect it to the PC. The USB is invalid in this situation.
