BETAFPV LiteRadio 3 Pro Manual

Radio transmitter
Hide thumbs

Advertisement

Quick Links

Download this manual
LiteRadio 3 Pro Radio Transmitter

Advertisement

loading
Need help?

Need help?

Do you have a question about the LiteRadio 3 Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BETAFPV LiteRadio 3 Pro

Summary of Contents for BETAFPV LiteRadio 3 Pro

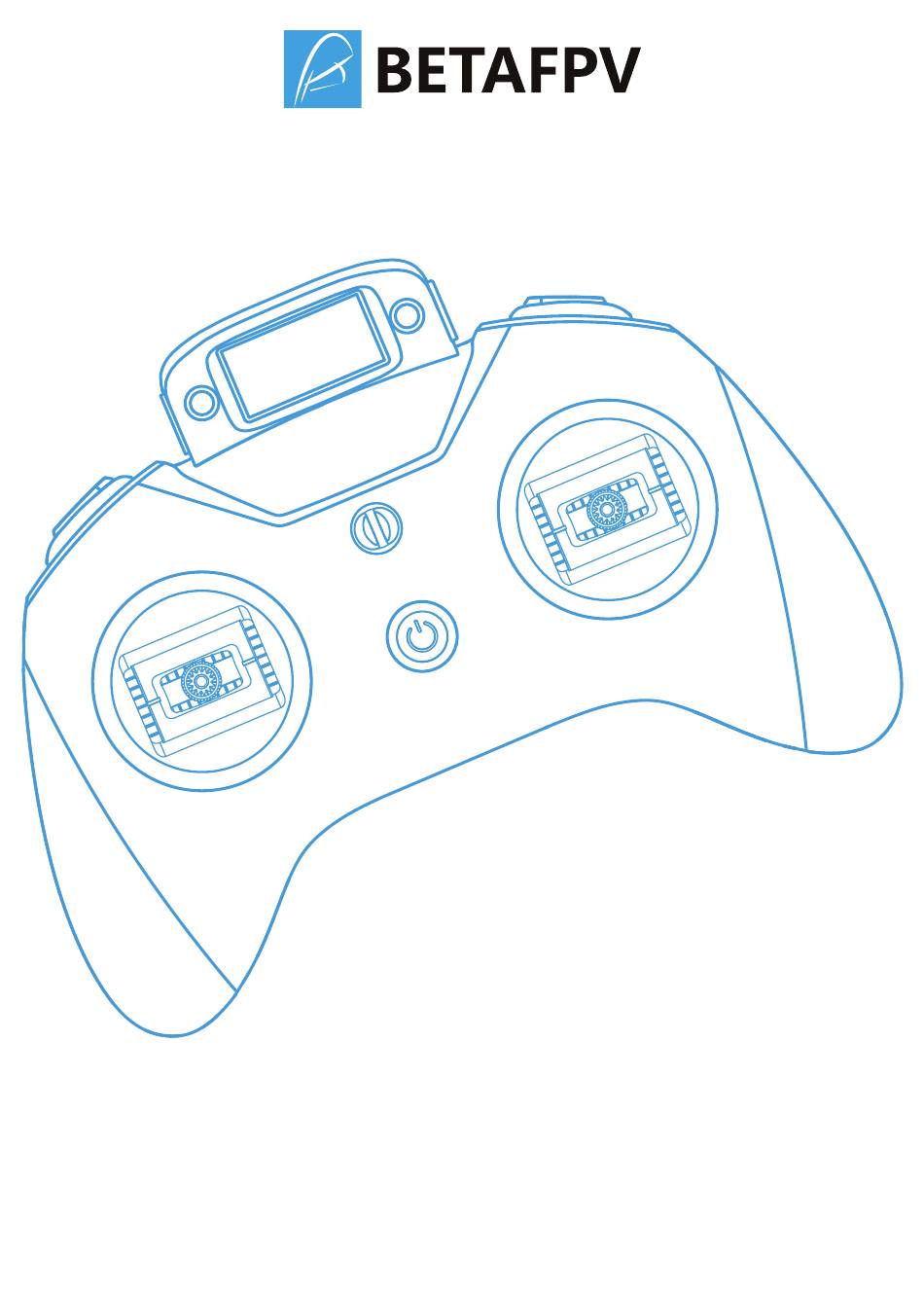

  • Page 1 LiteRadio 3 Pro Radio Transmitter...
  • Page 2 The LiteRadio 3 Pro is a remote control that supports EdgeTX system. Since its release in 2020, the BETAFPV LiteRadio series remote control has been loved by many RC model players. As a handle remote control, the LiteRadio 3 Pro has expanded its functions to meet the needs of more model enthusiasts.
  • Page 3 Back view: NANO Bay Toggle Switch Bootloader Audio Port Type-C Port ● Power Button: Long press to turn on/off. ● Bootloader Button: Turn off the radio transmitter. Press the Bootloader button and Power button, release at the same time, switch on to enter the Bootloader interface. ●...

  • Page 4: Interface And Operation

    ● The remote can be set up to Sound/Vibration/Silent Mode; the default mode is Sound+Vibration. 3. Interface and Operation ● Boot Tips： Power on and enter the operation interface of the system. If the channel switch is not at the lowest position, the remote control will show an abnormal channel warning.
  • Page 5 ● Setting Mode： 1. Enter the mode. TOOLS crossfire DSM FwdPrg FrSky GaSuite FrSky RB30_RB40 FrSky SBEC FrSky SxR Graupner HoTT Push the right 5-D button to the left for 1 second to enter the tool setting mode MODELSEL 1/11 MODEL01 Push the right 5-D button to the right for 1 second to enter the setting mode...
  • Page 6 Ch. Range CH1-16 Receiver Receiver External RF External RF Mode Mode Binding: Enter the ExpressLRS.lua interface, select Bind to do the linking. BETAFPV 2400TX 0/250 > TX Power > VTX Administrator > WiFi Connectivity [BLE Joystick] [Bind] 2.2.0 ISM2G4 442a9d 2. These settings are required when installing and using the external TX module, shown as below.
  • Page 7 ● Radio Transmitter Setting and Binding (CC2500 version) Confirm the built-in protocol: It's CC2500 version when the sticker in nano module bay shows "CC2500". 1. These settings are required when using the internal CC2500 TX module, shown as below. Turn External RF option OFF. Turn on the Internal RF and select the corresponding protocol under MULTI mode.

  • Page 8: Gimbal Calibration

    4. Gimbal Calibration First step: Enter calibration mode. HARDWARE Sticks [Calibration] Switches 3POS Move the right button to the left, enter setting mode and select "Calibration" for Gimbal Calibration CALIBRATION [ENTER] TO START The two cursors on the screen indicate the gimbal position Second Step: Complete the calibration with prompts.
  • Page 9 CALIBRATION MOVE STICKS/POTS [ENTER] TO START Move your gimbal stick to the Top/Bottom/Left/Right maximum position and stay for 1-2 seconds, then confirm to end calibration Note: Do not use too much force during the calibration process, so as not to affect the calibration accuracy, please move the joystick slightly during the calibration process.
  • Page 10 5. Low Battery Alert and Charging LiteRadio 3 Pro radio transmitter has a built-in 2000mAh battery, therefore, there is no need for an external battery. The normal voltage of battery is 4.2V-3.4V. The screen will display the battery voltage in real-time.
  • Page 11 6. HID Joystick When LiteRadio 3 Pro connected to PC, it can be used as a USB gamepad and practice model simulators. Specific steps: FPV Simulator Type-C Data Cable ● Turn on the radio transmitter; ● Connect the transmitter to the computer via USB data cable. The LED indicator will turn green when the radio transmitter is fully charged, and turns red when it is out of power;...
  • Page 12 7. More Information Please contact us on BETAFPV website (Technical Support-> Radio Transmitter) for more information: Common problems, Newest instruction, etc.   https://support.betafpv.com/hc/en-us   Refresh the ELRS firmware: https://github.com/ExpressLRS/ExpressLRS-Configurator Refresh the CC2500 firmware: https://github.com/pascallanger/DIY-Multiprotocol-TX-Module   ● How to upgrade the firmware.
  • Page 13 LiteRadio 3 Pro遥控器是一款支持EdgeTX系统的遥控器。BETAFPV LiteRadio系列遥控 器从2020年发布以来，深受广大模型爱好者喜爱。LiteRadio 3 Pro遥控器作为一款手柄 遥控器，在功能上做了更大的扩展，能够满足更多的模型爱好者的使用需求。 LiteRadio 3 Pro作为该系列中新的成员，它具备了以下特点。 ● 霍尔摇杆 ● 支持8通道 ● 默认EdgeTX系统 ● 1.3寸OLED显示屏幕 ● 支持外接Nano高频头扩展 ● 内置2000mAh电池，支持USB充电 ● USB Joystick模式支持绝大部分模型模拟器 ● 内置高频头提供ExpressLRS 2.4G/CC2500版本 1.外观形态 LiteRadio 3 Pro遥控器外观形态如下图所示。 顶部图示： 三段开关 三段开关 二段开关 二段开关 正面图示： 1.3寸OLED屏...
  • Page 14 背面图示： Nano高频头接口 拨动开关 Bootloader 音频接口 Type-C接口 ● 开机键：长按开机/关机。 ● Bootloader键：遥控器关机，同时按住Bootloader键和电源键，同时松开后，进入 Bootloader界面。 ● 拨动开关：拨动开关激活遥控器摇杆的微调功能。 ● 左侧五维按键：向上/下/左/右拨动按键对摇杆进行微调；按下按键退出/返回页面。 ● 右侧五维按键：向上/下/左/右拨动按键进行选择移动；按下按键为“确认/进入”。 2.LED状态和声音模式 ● 遥控器开关按键下LED提示灯，用于提示遥控器的常见状态。 指示灯状态 状态说明 解决办法 绿色常亮 正在开机 长按开机键直到完成开机 油门遥杆或者按键不在 按任意键跳过或者遥杆和按键 红色常亮 最低位 都打到最低位 蓝色常亮 正常工作状态 关机状态红灯亮 充电中 关机状态红灯灭 充电完成 ● 遥控器可以设置声音、震动或者静音模式；默认为声音+震动模式。...
  • Page 15 3.界面及操作 ● 开机提示 开机进入系统操作界面，如通道开关不在最低位，遥控器会警示通道状态，按照提示 “Press any key to skip”按任意五维按键跳过，或将通道状态调至最低位，即可进入下一 页。 THROTTLE WARNING Press any key to skip 如遥控器电量非满电状态时，屏幕界面会警示“RTC Battery low”，按照指示“Press any Key”按下任意五维按键，进入下一页。 THROTTLE WARNING RTC Battery low Press any Key ● 默认界面 跳过警示界面后，遥控器进入默认界面，通过向上/向下拨动屏幕右侧五维按键，切换默 认界面。 MODEL01 3. 7V...
  • Page 16 ● 设置模式： 1. 进入模式。 TOOLS crossfire DSM FwdPrg FrSky GaSuite FrSky RB30_RB40 FrSky SBEC FrSky SxR Graupner HoTT 向左拨动右侧五维按键1秒，进入遥控器设置模式 MODELSEL 1/11 MODEL01 向右拨动右侧五维按键1秒，进入模型设置模式 2.切换页面。 SD CARD [FIRMWARE] [IMAGES] [LOGS] [MODELS] [RADIO] [SCRIPTS] [SOUNDS] 向左/向右拨动右侧五维按键对设置页面进行切换 3.退出设置模式。 RADIO SETUP Date 2000-01-01 Time 00:13:50 Batt.
  • Page 17 Ch. Range CH1-16 Ch. Range CH1-16 Receiver Receiver External RF External RF Mode Mode 对频操作：进入ExpressLRS.lua 界面，选择Bind进入对频 。 BETAFPV 2400TX 0/250 > TX Power > VTX Administrator > WiFi Connectivity [BLE Joystick] [Bind] 2.2.0 ISM2G4 442a9d 2、当安装并使用外置高频头时，需要将遥控器模型如下设置： 将External RF 打开并根据外部高频头选择正确协议，将Internal RF 设置为OFF...
  • Page 18 SETUP 2/11 SETUP 2/11 No Telem Mode MULTI No Ch. map Type FrSky Low power Subtype External RF Status No telemetry Mode Ch. Range CH1-16 Trainer Receiver 00 [Bnd] [Rng] Mode Master/Jack Freq tune RSSI(0) 对频操作：在模型设置界面，选择Bind进入对频。 SETUP 2/11 Mode MULTI Type FrSky Subtype...
  • Page 19 4.摇杆校准 第一步：进入校准模式。 HARDWARE Sticks [Calibration] Switches 3POS 向左拨动右侧五维按键进去遥控器设置模式， 选中并确定进入“Calibration” CALIBRATION [ENTER] TO START 2个光标代表摇杆的位置 第二步：根据提示完成校准。 CALIBRATION SET STICKS MIDPOINT [ENTER] TO START 将摇杆移动到中间位置， 然后确认进入下一步...
  • Page 20 CALIBRATION MOVE STICKS/POTS [ENTER] TO START 将摇杆分别向上/下/左/右移动至极限位置 停留置1-2秒，然后确定完成校准 注意：校准过程中请勿用力过猛，以免影响校准精度，请在校准过程中轻微移动摇杆。 第三步：完成校准，退出校准模式。 CALIBRATION [ENTER] TO START 校准完成后，屏幕再次进入“Calibration”页面， 按下左侧五维按键退出校准页面即可...
  • Page 21 5.低电量警报及充电 ， 遥控器已经内置了2000mAh的电池，无需再外接电池，电池正常使用电压为4.2V-3.4V 屏幕实时显示电池电压。 当电池电压小于3.4V时会触发遥控器低电压报警，表现为：屏幕电池图标闪烁并伴随蜂 鸣器震动和扬声器发出“滴滴滴，滴滴滴”提示音。请及时关机充电。 MODEL01 3. 4V 充电方式如下： ● 关闭遥控器； ● 使用USB线连接遥控器和适配器（5V输出的适配器即可，例如手机充电器）； ● LED红灯常亮，表示正在充电中；LED灯光熄灭，表示充电结束。 输出5伏 Type-C数据线 电池充满，可以连续使用15小时左右（100mW发射功率）； 电池充满，关机放置，可以保证30天电池电量仍保持在80%左右。...
  • Page 22 6.HID Joystick模式使用 在连接个人电脑后，LiteRadio 3 Pro遥控器可作为USB游戏手柄使用，可以用来练习模 型模拟器。具体步骤如下： Type-C数据线 ● 遥控器开机； ● 使用一根USB数据线连接遥控器和PC电脑，遥控器满电状态下LED变为绿色，不满电 状态下LED变为红色； ● 遥控器弹出提示，选择“USB Joystick (HID)”； ● PC会自动安装驱动，驱动安装成功后弹出提示框，说明电脑已经成功识别到此遥控器 并可以正常使用。 其他设备 BETAFPV LiteRadio3 Pro Joystick 若无法正常识别出遥控器，则可能是电脑没有自动安装驱动，或者识别了错误的驱动程 序，需要重新安装驱动。 注意：遥控器关机状态下连接到电脑，USB口无信号输出，无法使用Joystick功能。...
  • Page 23 7.更多信息 了解咨询更多信息，如常见问题，最新说明书等，请到BETAFPV官方支持网站（技术支 持->遥控器指南）获取。 https://support.betafpv.com/hc/zh-cn 更新刷写内置ELRS固件： https://github.com/ExpressLRS/ExpressLRS-Configurator 更新刷写内置CC2500固件： https://github.com/pascallanger/DIY-Multiprotocol-TX-Module ● 如何升级固件； ● 如何创建遥控器模型。...
