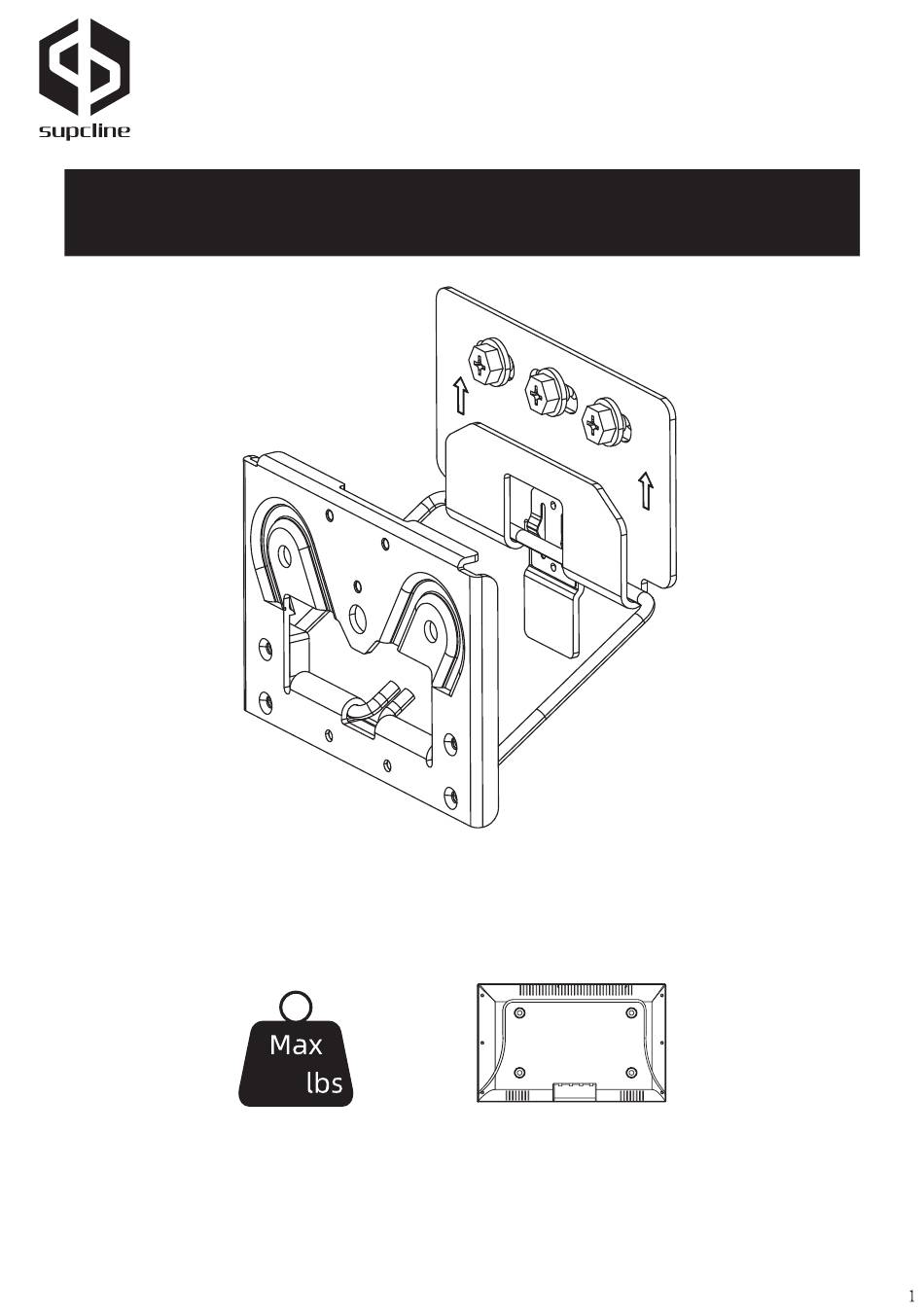

Model: S1401
Installation Manual
Ultra Slim TV Wall Mount
75*600mm
VESA
100
Thank you for choosing Supcline! All our products come with 10 years warranty.
As a manufacturer, we strive to provide you with the highest quality products and
services. If you have any issues during installation and use, please contact us at
supcline@126.com.
We're 24 hours available!
Advertisement
Related Manuals for supcline S1401
Summary of Contents for supcline S1401
- Page 1 75*600mm VESA Thank you for choosing Supcline! All our products come with 10 years warranty. As a manufacturer, we strive to provide you with the highest quality products and services. If you have any issues during installation and use, please contact us at supcline@126.com.
- Page 2 ● The wall must be capable of supporting five times the weight of the TV and mount combined. ● Do not apply this product to any purpose not indicated by Supcline. ● Incorrect installation may result in product damage or body injury.
-
Page 3: Application Scenarios
Accessories： Anchor Tapping Screw Screws ( 10*50) x6 (M7*55) x6 (M4*15)X4 (M5*15)X4 Screws Spacer Ring Washers (M6*15)X2 （ 16*5.5*1.0）x4 （ 18*8.5*2.5）x4 (M8*15)X2 EVA Pad EVA Pad (30*3*10) x2 (30*30*13) x2 Application Scenarios NOTES: The face Panel can be installed on various TVs/moninots/tablets with VESA size ranging from 75mm to 600mm (not for 100mm), and a net weight of up to 45kg. - Page 4 Application Scenario 2: Two Wall Panels Option: For VESA size ranging from 200mm to 600mm TV/monitor. It can be installed on concrete/brick wall, drywall, or on wood stud(when the TV VESA size match the wood stud spacing). Weight capacity:45KG(100 Lbs) 16”/18”/24”...
- Page 5 1-2: Place the ruler at desired height and location. Paste the ruler on the wall and LEVER it with ③, then mark the drilling holes on the wall according to the VESA holes marked on the ruler. For single wall panel measurement: For two wall panels measurement: VESA=75mm 1-3: Drill holes on the wall as per following instructions, and install the expansion...
- Page 6 For two wall panels install: Step 2：Install the Face Panel 2-1: Panel Installation, recommend to install at the two holes on the top of the TV's back. LEVER the face panel with ③ before install. For single face panel install: For two face panels install: 2-2: Paste TWO EVA pads on each side at the bottom of the TV's back.
- Page 7 Step 3：Hang the TV 3-1: Test the stability of wall panel 3-2: Open the hanging hook of face panel, lift the TV and hang the hook into the U-shaped groove on wall panel. For single panel hanging: For two panels hanging: 3-3: Slowly lower the TV until the hook is securely seated at the bottom of the U-shaped groove.
- Page 8 3-4: The TV will attach to the strong magnets securely. Installation completed. For single panel hanging: For two panels hanging: Step 4：Remove the TV Pull out the TV, then hold the TV and lift up to take it out. Rev.A...
