Model: SF401
Installation Manual
Studless TV Wall Mount
400*400mm
VESA
154
Thank you for choosing Supcline! All our products come with 10 years warranty.
As a manufacturer, we strive to provide you with the highest quality products and
services. If you have any issues during installation and use, please contact us at
supcline@126.com.
We're 24 hours available!
Advertisement
Related Manuals for supcline SF401
Summary of Contents for supcline SF401

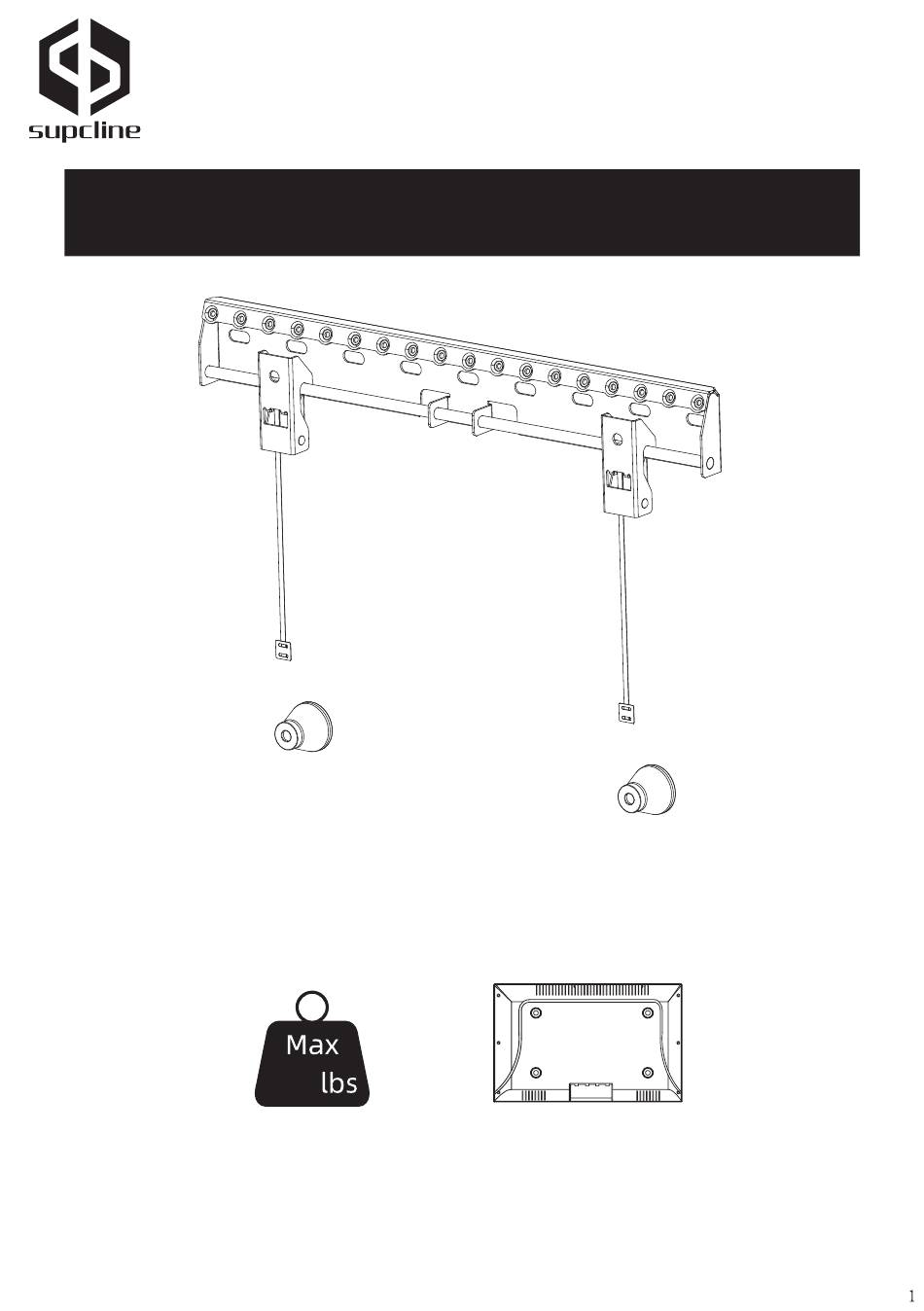

- Page 1 400*400mm VESA Thank you for choosing Supcline! All our products come with 10 years warranty. As a manufacturer, we strive to provide you with the highest quality products and services. If you have any issues during installation and use, please contact us at supcline@126.com.
- Page 2 ● Incorrect installation may result in product damage or body injury. Supcline shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse. Tools Needed (Not Included)
-
Page 3: Step 1: Before Installation
Step 1: Before Installation 1-1. Check the wall type 8"/12"/16" Wood studs Drywall Solid concrete or brick walls 1-2 Check your TV VESA pattern (Vesa=Horizontal x Vertical) Measure the four holes at the back of your TV. Max:400mm(15.75”) Please check the ports on the back of Min:75mm(2.95”) the TV to avoid potential clogging. - Page 4 2-3 Attach the brackets Step 3: Install the Wall Plate on the Wall Option A: Install on wood studs Note: Only suit for 8"/12"/16" spacing wood studs 8” (203mm) 12” (305mm) 16” (406mm) MIN Stud Size: 89x38mm (3.5x1.5 inch) 8” (203mm) 12”...
- Page 5 Option B: Install on drywall Notes: Read carefully before installation ● All 18 steel nails must be securely tightened to prevent unwanted movement of the wall plate. ● Do not use wall anchors or tapping screws for this mounting option. ●...
- Page 6 Option C: Install on solid concrete/brick wall Notes: Read carefully before installation 2.50" （63.50mm） ● Position the wall plate at desired height. ● Drill 3 pilot holes. Make sure the depth is Lever the wall plate and mark the holes. not less than 3"(75mm).
- Page 7 Step 4: Hang the TV 4-1. Test the stability 4-2. Hang the TV on the wall plate ● Hang the TV on the wall plate, then press forward. Make sure the safety latches are in the locked position so the TV is securely fastened to the wall plate.
- Page 8 Step 5: Remove the TV 5-1. Pull the strap down to unclock the latches, then pull the bottom of TV away from the wall plate. Unlocked Unlocked Lift the TV up and take it off. 5-2. Rev.A...
