Model: S4601
Installation Manual
Full Motion TV Wall Mount
600*400mm
VESA
Thank you for choosing Supcline! All our products come with 10 years warranty.
As a manufacturer, we strive to provide you with the highest quality products and
services. If you have any issues during installation and use, please contact us at
supcline@126.com.
We're 24 hours available!
Advertisement
Related Manuals for supcline S4601
Summary of Contents for supcline S4601

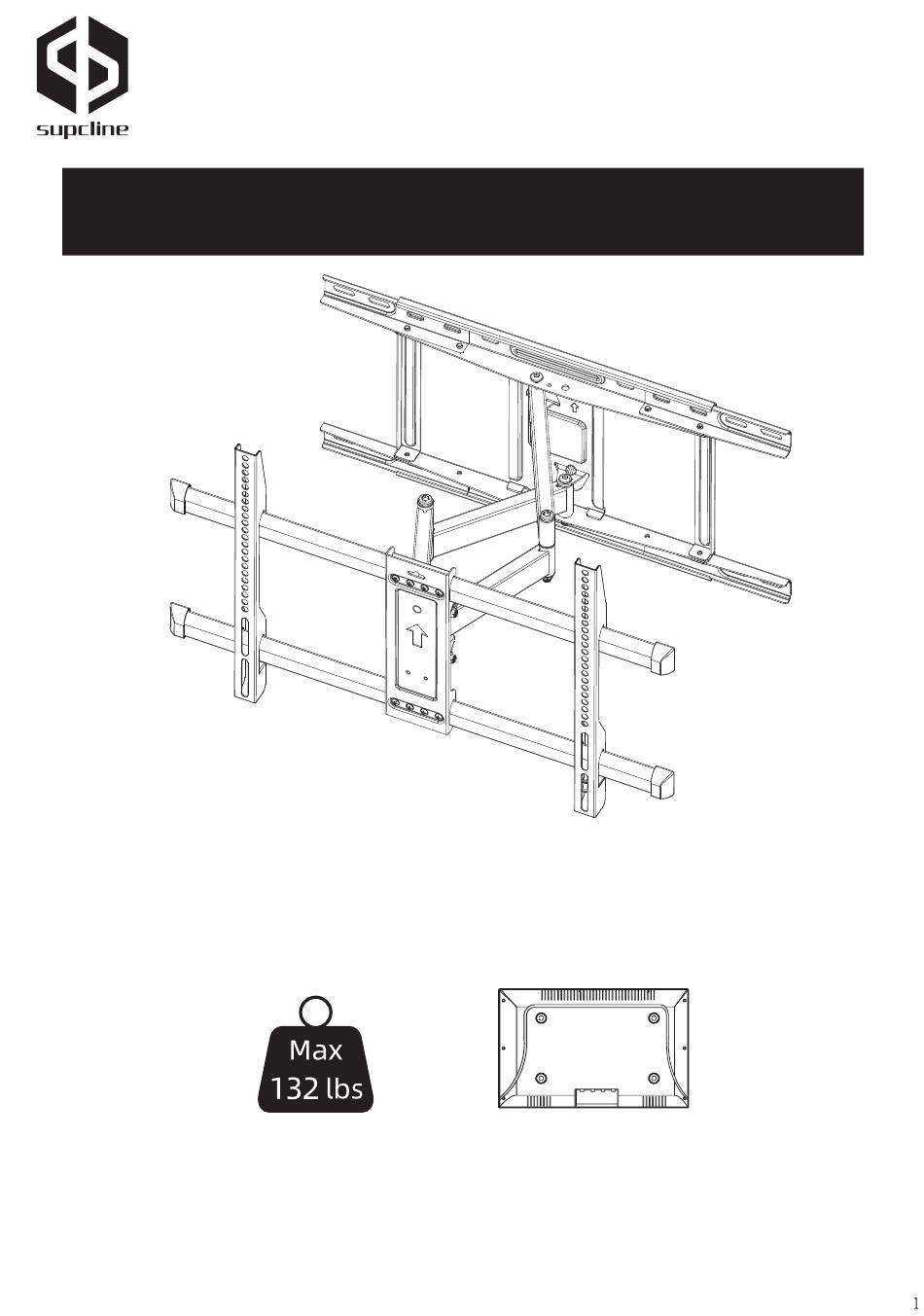

- Page 1 600*400mm VESA Thank you for choosing Supcline! All our products come with 10 years warranty. As a manufacturer, we strive to provide you with the highest quality products and services. If you have any issues during installation and use, please contact us at supcline@126.com.
- Page 2 ● The wall must be capable of supporting five times the weight of the TV and mount combined. ● Do not apply this product to any purpose not indicated by Supcline. ● Incorrect installation may result in product damage or body injury.
-
Page 3: Step 1: Before Installation
For TV Bracket Installing 5mm Spacer Ring 8.5 1.5 10mm Spacer Ring For Wall Drilling M8 Washer Anchor Tapping Screw M6*12 Wrench Step 1: Before Installation 1-1 Check the wall 8"/12"/16" /18"/24" pure alone 1-2 Check your TV VESA pattern (Vesa=Horizontal x Vertical) Measure the four holes at the back of your TV. - Page 4 Step 2: Assemble the Brackets 2-1 Select the right screws/washers/spacer rings according to the size and depth of the TV screw holes. 2-2 Figure out the suitable screw combination according to your TV Combination of screws, washers and spacer rings Combination of screws and washers 2-3 Attach the brackets Step 3A: For Wood Stud Installation...
- Page 5 3A-2 Attach to wood studs plan A: plan B: Without extension arms With extension arms 8"/12"/16" 16"/18"/24" ● Use a stud finder (not included) to locate wood studs. Mark the edge and center locations of the stud. BOLT HEAD UP ！！ 2.50"...
- Page 6 Step 3B: For Concrete/Brick Wall Installation 2.50" （63.50mm） ● Position the mounting template at ● Drill pilot holes. Make sure the depth desired height, level it and mark is not less than 2.5". Do not drill in the the pliot holes. gap where two bricks join.
- Page 7 4-2 Face panel arms assembly Tighten the screws Remove the four screws on face panel ⑦, and install the two face panel arms ⑧, ● then tighten the four screws on both sides. 4-3 Connect face panel with wall panel 4-4 Hang up and adjust the TV Tighten the safety screws...
- Page 8 Step 5: Adjustments 5-1 Tilt (＋12°/-5°) Adjust the TV at your preferred angle and tighten the tilt bolts. 5-2 Horizontal adjustment ±3° Loosen the 2 bolts on the back of your TV and tighten them after finished adjustment. Rev.A...
