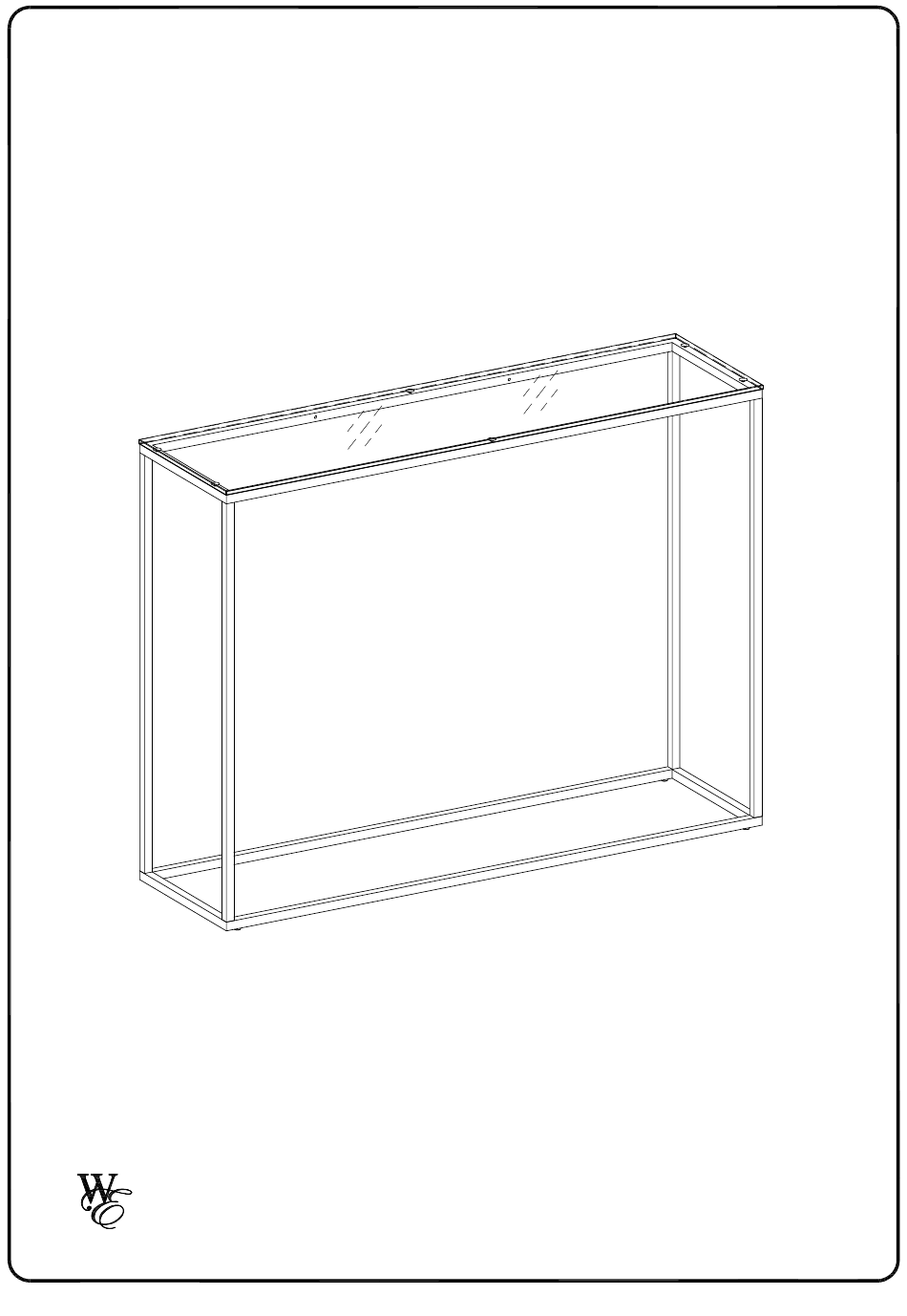

- Page 1 Item # : AF42LWETG Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 25/12/2019 (I) Walker Edison ® Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
-
Page 2: General Assembly Guidelines
The main type of hardware used to assemble this product are: bolts and screws. Power tools should not be used to assemble this product. Drill may be needed for securing product to wall. Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 3: Parts List
Parts List Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 4: Hardware List
M6x27mm Bolt ø13mm Rubber suction cups Hex Key M4x38mm Screw The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©... - Page 5 Step 1 Using Bolts (A) attach part (2) to part (3) with hex key (C) as per diagram. Note: Do not fully tighten all the bolts . Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 6 Step 2 Using Bolts (A) attach part (4) to part (3) with hex key (C) as per diagram. Note: Fully tighten all the bolts . Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 7 Step 3 Secure Rubber suction cups (B) into part (2) as per diagram. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 8 Step 4 Put part (1) carefully as per diagram. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 9 Wall Wall Using Screw (D) attach part (2) into Nut (E) to Wall with Philips head screwdriver as per diagram. Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. ©...
-
Page 10: Final Assembly
Step 6 Final Assembly Copyright 2019 b Walker Edison Furniture Co., LLC. All rights reserved. P.10 ©...
