Crest Audio PRO SERIES 3301 Specifications

POWER AMPLIFIER
Product Description

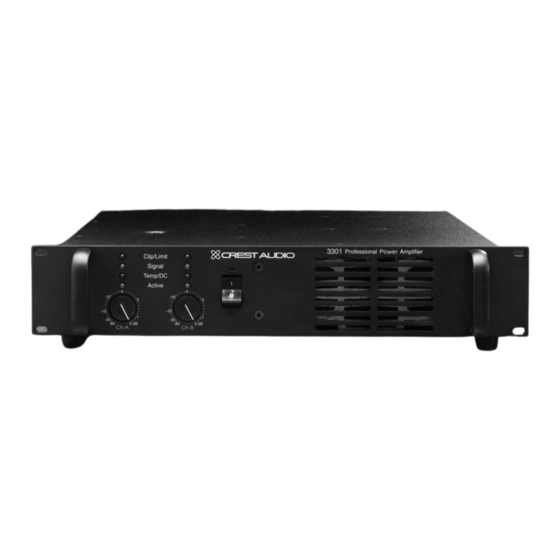

The Crest Audio Model 3301 power amplifier is a compact,
medium-power amplifier designed to meet the demands of con-
cert touring, studio monitoring, high-quality sound reinforce-
ment, and professional installations.
Crest Audio developed this model in conjunction with the
biggest names in touring sound. These amplifiers meet the spe-
cific demand for medium-power amplifiers with full-range capa-
bilities, but optimized for mid- and high-frequency applications.
The output section operates purely in Class AB, with no dynamic
switching of supply rail voltages. The result is the cleanest, most
transparent mid-and high-frequency audio power imaginable
from amplifiers that never compromise quality.
A forced-air configuration is used to cool channel heat sinks
mounted in a back-to-back tunnel arrangement. An actively bal-
anced female XLR input connection, Octal Socket, and 5-way
output binding posts are provided for each channel.
The 3301 is fully compatible in design with other Crest Audio
Professional Series amplifiers, Octal Socket Accessories, and the
NexSys ® computer-controlled audio system.
Design and Construction
The 3301 is built exclusively in Crest Audio's own USA manu-
facturing facility, with internal components selected for premium
quality and proven durability. Each modular subassembly is pre-
tested, and the assembled 3301 receives a rigorous "hot room"
burn-in before thorough final checkout on precision test equip-
ment.
Only high-grade components are used for the modular sub-
assemblies in this ultra-strong, steel single piece chassis.
P o w e r S p e c i f i c a t i o n s
1kHz, 0.025% THD+N
20Hz-20kHz, 0.1% THD+N
8 O h m s S t e r e o 4 O h m s S t e r e o
2 4 0 W 3 8 0 W
2 2 0 W 3 3 0 W
3301
3301 Features
• Crest Audio's legendary "overbuilt" power supply
• Toroidal power transformer
• Latest generation of high-speed, wide-bandwidth output
devices
• Twin tunnel cooling with back-to-front air flow
• Dual, variable speed DC fans
• High thermal mass heat sinks
• Balanced XLR inputs
• 5-way output binding post connectors
• Stereo/Parallel/Bridged Mono mode selector switch
• Rear panel ground lift jumper
• 3301 protection circuitry:
- Clip Limiting prevents speaker damage with gentle gain
reduction at clip threshold.
- IGM (Instantaneous Gain Modulation) monitors connected
loads to detect conditions that may overstress output
devices.
- AutoRamp gradually increases gain to attenuator setting
level when amplifier is turned on.
- Other protection circuitry: comprehensive thermal manage-
ment, and short circuit, DC voltage, turn-on/off transient,
current inrush and sub/ultrasonic input protection.
• Recessed, stepped attenuators
• Front panel circuit breaker/power switch
• Modular construction
• Five-year warranty
(USA, Canada, U.K. & many other countries).
Crest Professional Series Amplifiers are
®
fully compatible with the NexSys
Computer-Controlled Audio system.
2 O h m s S t e r e o 8 O h m s B r i d g e d
4 2 5 W 7 2 5 W
4 0 0 W 6 6 0 W
4 O h m s B r i d g e d
8 3 0 W
8 0 0 W
Figures are Watts per channel, both channels driven.
