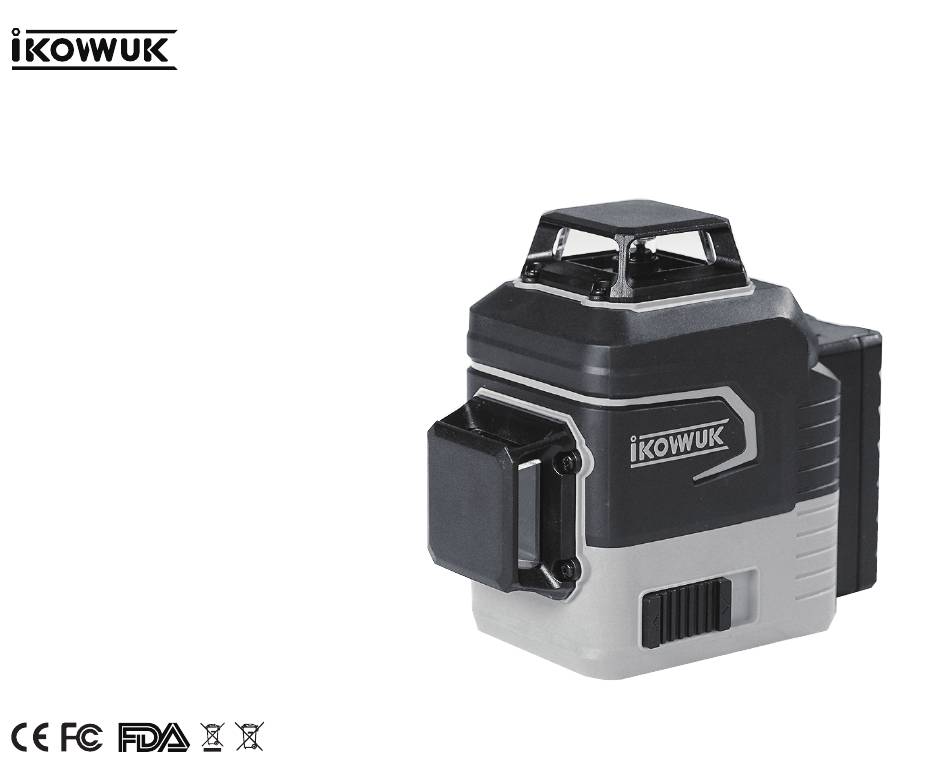

- Page 1 User Manual Laser Level Model: D1-12 Contact us: support@ikovwuk.com www.ikovwuk.com...
- Page 3 Content · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Safety Notes Before Use ·...
- Page 4 Safety Notes Before Use Please read this manual carefully before using the laser level and keep this manual for reference. Caution - Using unmentioned operating or adjusting equipment can lead to dangerous radiation exposure. While the laser level is in operation, be careful not to expose your eyes to the emitting laser beam.
- Page 5 Do not dismantle, open, or shred the battery pack. Remove the battery pack from the device when not using the laser level for an extended period of time. Recharge only with the charger specified by Ikovwuk. Avoid heavy impact to or falling down of the laser level.
- Page 6 Product Overview Laser Level Horizontal Laser Window Front Vertical Laser Window Side Vertical Laser Window ON/OFF Switch...
- Page 7 1/4" Thread Mount Attention: The indicator light on the 「 」 button reflects the battery level. When the battery is full, the indicator light is green, and when the battery is low, the light is red and turns off quickly.
-
Page 8: Remote Control
Remote Control Button Indicator Horizontal Laser Line Vertical Laser Line 23A 12V Battery Attention: The indicator light will flash blue when the button is pressed. The remote control comes with a 23A 12V battery. If the battery power is exhausted, the indicator light will not light up when the button is pressed. - Page 9 L-shaped Magnetic Bracket 5/8" Thread Mount 360° Rotating Base 1/4" Thread 1/4" Thread Mount 360° Rotating Base The L-shaped bracket is magnetic, it can be attached to any solid metal surface. The bracket's bottom has both 1/4" and 5/8" threads, making it suitable for installing any tool with a 1/4"...
- Page 10 There is a metal plate included, when the place you are fixing is not a metal surface, you can fix the metal plate to the wall, and then use the magnetic bracket to fix the laser level.
-
Page 11: Battery And Charger
Battery & Charger Battery Compartment Cover Battery Charging Port Indicator Light The battery can be charged via a type-C charging cable (included) , common mobile phone chargers can also be used to charge the battery. When the battery is charging, the indicator light is red, and when the charging is completed, the light turns green. -
Page 12: Package List
Package List 12 Lines Laser Level 3000 mAh Battery Charger Cable Remote Control (included a 23A 12V battery) L-shaped Magnetic Bracket Laser Target Board Metal Plate Portable Storage Bag User Manual... -
Page 13: Operating Modes
Operating Modes Self-leveling Mode Slide the switch to the ON position 「 」 , the Self-leveling Mode is turned on. When the laser level is ON, the laser level emits 1 horizontal beam that self-levels within ±3%, or the laser level will sound the alarm with laser beams flashing. Press 「... -
Page 14: Manual Mode
Manual Mode Keep the switch OFF 「 」 , press and hold 「 」 for 3 seconds, the machine beeps and switches to Manual Mode, and the indicator light on 「 」 turns red. In Manual Mode, the laser level won't be self-leveling, and the laser beams won’ t flash. -
Page 15: Pulse Mode
Pulse Mode - Working with Detectors (not included) Slide the switch to the ON position 「 」 , press and hold 「 」 for 3 seconds, the machine beeps and switches to Pulse Mode, and the indicator light 「 」 turns blue. -
Page 16: Flash Mode
Flash Mode When the laser level is in operation, press and hold the 「 」 button for 3 seconds, the blue indicator light on the 「 」 button and the laser beams will flash, so that the laser beams are easier to identify, especially in places with strong light such as outdoors. -
Page 17: Maintenance
Do not immerse the laser level in water or other fluids. Store and transport the laser level only in the supplied portable storage bag. If the laser level is unusable, do not open the gauge by yourself, please contact the Ikovwuk support team. - Page 18 This statement is in addition to your effective rights and does not injure your statutory rights. If there is a machine failure, Ikovwuk will provide you with a replacement service within 12 months from the date of purchase. Please: Provide the order ID.
- Page 19 Dear customers Thank you for choosing Ikovwuk. We have attached the QR codes of the product manual and product introduction video in order to make sure that you can get the most out of this purchase. The manual provides detailed information on how to set up and use the product, and the video provides instructions on how to install and use the product.
- Page 20 Ikovwuk D1-12 D1-12 REGISTER NOW How To Use 12 Months PDF User Manual Ikovwuk Laser Level Extended Warranty Contact us: support@ikovwuk.com www.ikovwuk.com...
