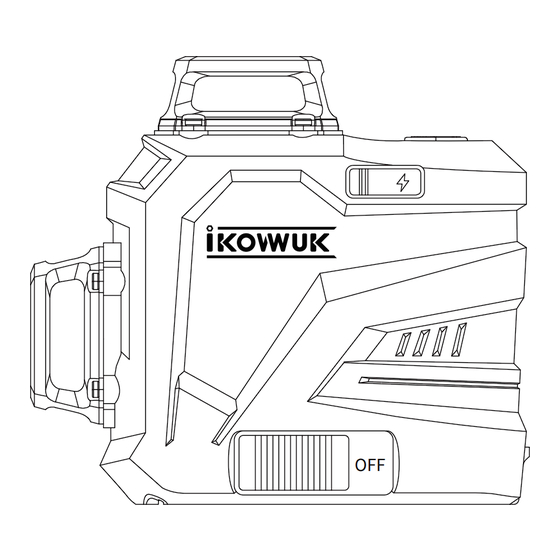

- Page 1 INSTRUCTIONS LASER LEVEL B1-12 W W W . I K O V W U K . C O M...
- Page 2 1 3 2 1- Horizontal Line 6- ON/OFF Switch 7- Charging Port 2- Vertical Line 8- Battery Pack 3- Manual Mode Button 4- Pulse Mode Indicator 9- Battery Compartment Cover 10- Holder Mounting Hole 5- Emission Port for Laser Beam...
- Page 3 Fig.A1 Fig.A2 Fig.B1 Fig.C2 Fig.C1 Fig.C3 Fig.D...
- Page 4 Fig.E1 Fig.E2 Fig.E4 Fig.E3 Fig.E5 Fig.F1 Fig.F2 Fig.F3...
-
Page 5: Operation Instrutions
OPERATION INSTRUTIONS heat slightly when charging. CAUTION! Please charge and discharge the NOTE: Before using the tool, read the battery periodically to extend the service life instruction book carefully. of battery when it has not been used for long time. CAUTION! The battery equipped has been INTENDED USE tested by our strict internal quality control... - Page 6 To switch off, slide the auto-leveling mode switch to its the tool to send out inclined line. The laser beam does left side (the front emission port is pointing away from not need to run vertical to each other. you) to turn off the laser level. WARNING: In manual mode, the laser beam could not be used as horizontal or vertical 2) Manual mode (See Fig.
-
Page 7: Product Safety
PRODUCT SAFETY be sent out from the emission port (Top) and make up a horizontal square. Totally 12 lines are launching from WARNING: This product can expose you to the 3 emission ports and make up 3 crossed squares (1 chemicals including lead and Di(2-ethylhexyl) horizontal and 2 vertical squares). - Page 8 Recharge only with the charger specified by iKOVWUK. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery...
-
Page 9: Package List
Battery Pack Battery Charger Protective Bag User Manual Iron Sheet Laser Target Board Goggle L - Shaped Holder TECHNICAL DATA Type B1-12 Nominal voltage 3.7V Leveling accuracy ±1/8 inch at 33 feet Wave length (nm) 520nm Automatic leveling range ±3°... -
Page 10: Maintenance
