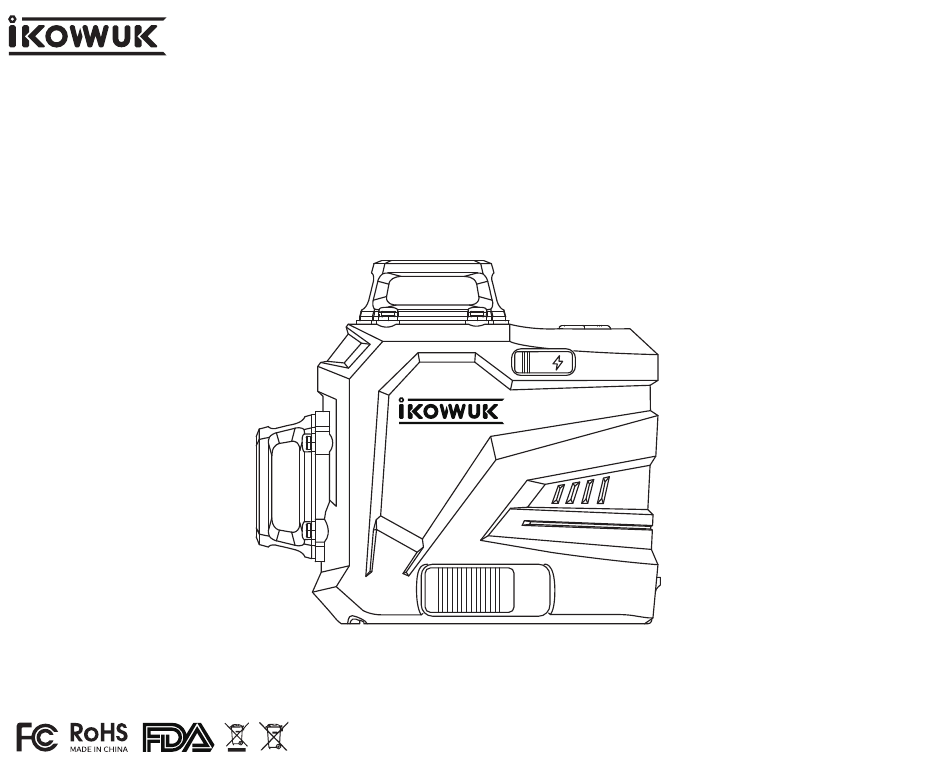

- Page 1 User Manual Laser Level Model: B1-12 Contact us: support@ikovwuk.com www.ikovwuk.com...
- Page 2 Content Safety Notes Before Use · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Product Overview ·...
- Page 3 Safety Notes Before Use Please read this manual carefully before using the laser level and keep this manual for reference. Caution - Using unmentioned operating or adjusting equipment can lead to danger- ous radiation exposure. While the laser level is in operation, be careful not to expose your eyes to the emitting laser beam.
- Page 4 Do not dismantle, open or shred battery pack. Remove the battery pack from the device when not using the laser level for an extended period of time. Recharge only with the charger specified by iKOVWUK. Do not use any charger other than that specifically provided for use with the equipment.
-
Page 5: Product Overview
Product Overview Laser Level Horizontal Laser Window Charging Port Front Vertical Laser Window ON/OFF Switch Side Vertical Laser Window... - Page 6 Battery Compartment Cover - - - - - - - - - - - 1/4" Screw Hole - - - - - - - - - - - - - - 5200 mAh Battery - - - - - - - - - - - - - - - - - - Key Board Horizontal Laser Line - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
-
Page 7: Remote Control
Remote Control Button Indicator - - - - - - - - - - - - - - Horizontal Laser Line - - - - - - - - - - - - Vertical Laser Line - - - - - - - - - - - - 23A 12V Battery (Included) Attention: The indicator light will flash blue when the button is pressed. - Page 8 L-shape Bracket The L-shaped bracket is magnetic, it can be attached to any solid metal surface. There is a metal plate included, which can be fixed to non-magnetic surface with screws or nails.
- Page 9 Charger Charging Indicator Status Red on Charging Fully Charged Green on Recharge is not recommended for more than 24 hours after each use. Please charge and discharge the battery periodically to extend the service life of battery when it has not been used for long time.
-
Page 10: Package List
Package List 12 Lines Laser Level 5200 mAh Battery Battery Charger Remote Control (included a 23A 12V battery) Magnetic L-Shaped Bracket Laser Target Board Metal Plate Portable Storage Bag User Manual Warranty Card... -
Page 11: Operating Modes
Operating Modes Self-leveling Mode Slide the Switch to ON position " ", the Self-leveling Mode is turned on. After switching ON, the laser level sends out 1 horizontal beam and 2 vertical beams with automatic leveling range of ±3º, otherwise the laser level will send out an alarm with the laser beams and level indicator flashing. -
Page 12: Manual Mode
Manual Mode Keep the Switch OFF " ", press and hold the " " for 3s to turn on the Manual Mode. In Manual Mode, the laser level won’ t be self-leveling, but the level indicator will flash continuously. The level tool could be held by hand or placed on an inclined surface to project a rigid laser beam in any orientation. -
Page 13: Brightness Adjustment
Pusle Mode - Working with Detectors (not included) With the laser level powered on, short press the " " , to work with detectors (not included) for longer working distance. The beam is weaker in Pulse Mode. The laser level is compatible with most detec- tors. -
Page 14: Maintenance
Do not immerse the laser level in water or other fluids. Store and transport the laser level only in the supplied portable storage bag. If the laser level is unusable, do not open the gauge by yourself, please contact iKOVWUK support team. -
Page 15: Specification
Specification Nominal voltage 3.7V Leveling accuracy ±1/8 inch at 33 feet Wave length (nm) 520nm Automatic leveling range ±3° Working time 6.5 hours (12 line fully brights) Laser type LD green/12-Line Working range Radius 32.8 feet (indoor) Laser class CLASS ll, <1mW Operating temperature -10°C-45°C Storage temperature... - Page 16 This statement is in addition to your effective rights and does not injure your statutory rights. If there is a machine failure, iKOVWUK will provide you with a replacement service in 18 months from the date of purchase. Please: Provide the order ID.
