Crest Audio NC-STI - TECHNICAL Technical Data

POWER/OUTPUT MODULE
FOR CKS, CKV & CKX SERIES
POWER PROCESSING AMPLIFIERS
NC-STI
Sequential Turn-On/Off and NexSys
Product Information
The NC-STI Module fits in the Output/Power bay located on the rear
panel of Crest Audio CKS, CKV & CKX Series Power Processing
amplifiers. In addition to NexSys initiation or hard closure activation of
Sequential Turn-On/Off (STO), NC-STI includes the power supplies for
the NexSys NC-NXS Network Module. When initiating STO with
NexSys, the NC-STI turn-on and turn-off delay times are user program-
mable.
Features:
• NexSys compatible
• Sequential turn-on/off initiated by hard closure (standard) or NexSys
• With NexSys-initiated STO, user-programmable turn-on and turn-off delay times
• Amplifier output terminals on barrier strip with 0.44" (11mm) screw spacing and 0.32" (8mm) lug spacing
• 5mm 6-pin Phoenix connector for sequential turn-on/off connection
• Signal chassis ground lift jumper

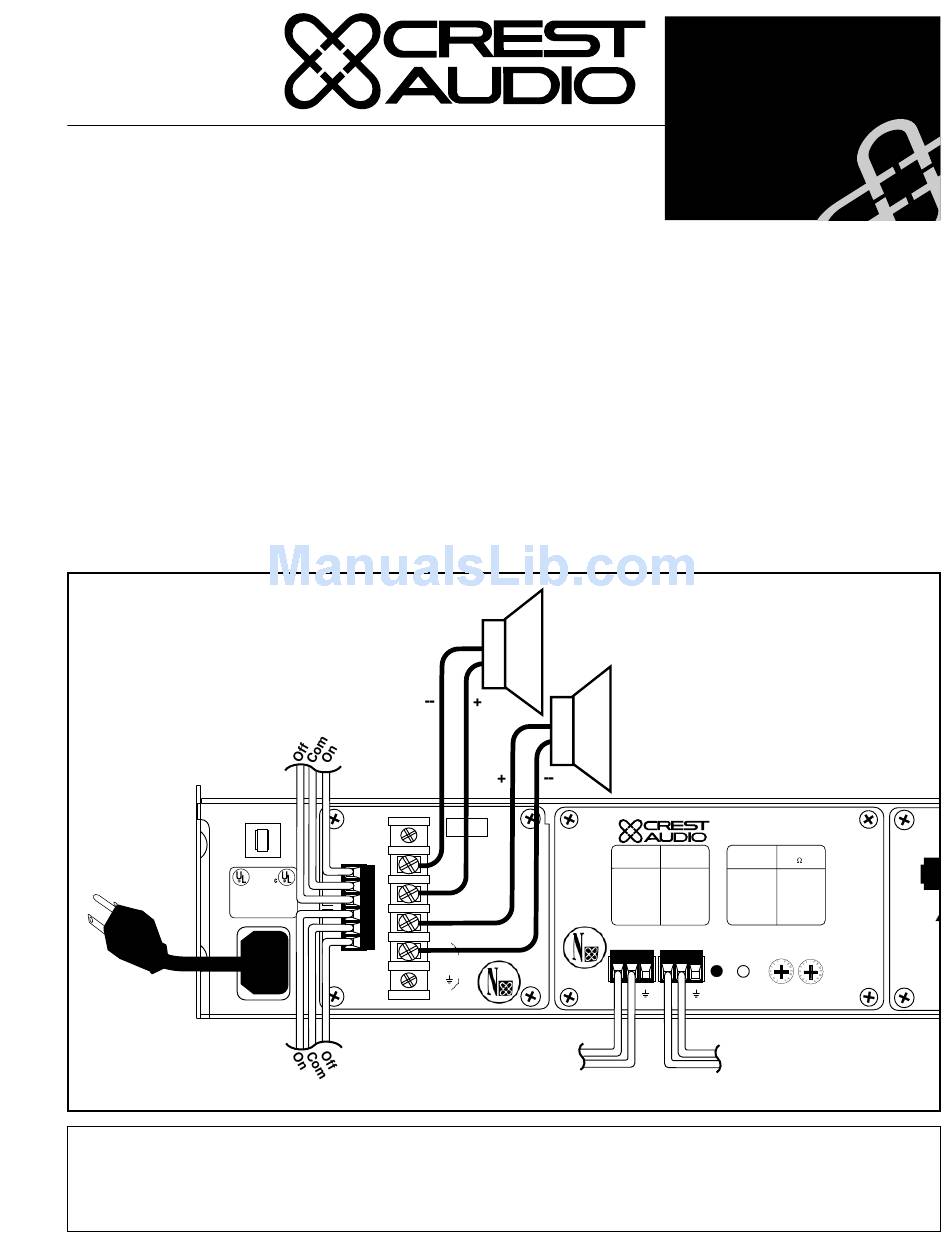

N C - S T I c o n n e c t i o n s
Sequential Turn-On/Off
connection to other
LISTED 8B42
COMMERCIAL
120V~60 Hz 15A
USA-specification amplifier shown
Architects and Engineers Specifications - NC-STI.
The module shall plug into a Crest Audio CKS or CKV Power Processing amplifier in the
Power/Output bay. The module shall contain the power supplies required for powering an
NC-NXS module (if fitted). The module will provide NexSys-initiated and hard closure ini-
tiated sequential turn-on/off capability for groups of CKS and/or CKV amplifiers. The mod-
ule shall provide turn-on to host CKS and/or CKV amplifiers and a sequential turn-on output
to other amplifiers in the chain.
amplifiers
Sequential
Turn-On
In
On
Com
POWER
Off
AMPLIFIER
On
Com
Off
Out
Model
NC-STI
power supply
®
Since the NC-STI is self-powered prior to the AC mains closure and is
optically isolated from other amplifiers in the Turn-On/Off chain, loss of
AC power to any amplifier in the chain will not affect any others during
STO. The front panel power activation switch must be in the "Remote"
position for the NC-STI to initiate or be part of a Turn-On/Off sequence.
Designed & manufactured in the USA by:
CLASS 2
WIRING MAY
BE USED
Output
–
CKV 100
A
CKV 200
+
CKV 400
CKV 800
CKV 1600
+
CKV 2400
B
–
Signal
Ground
Lift
Jumper
+ –
NexSys Bus
Disconnection of AC power to any number of amplifiers in the chain shall not affect the
turn-on/off sequence capability of all other amplifiers in the chain. A 5mm six pin Phoenix
connector shall be provided to receive and pass on the turn-on initiation signal. A closure
across two of the Phoenix connector terminals on the first amplifier in the chain shall initiate
the turn-on sequence. The module shall provide outputs for both amplifier channels on barri-
er strip connectors and a signal ground lift jumper. The module shall be designated the Crest
Audio model NC-STI.
Power
Processing
Modules
Crest Audio Inc.
100 Eisenhower Dr.
Paramus, New Jersey 07652 USA
Output Power Model Output Power
Model
Name @8 /Ch.
Name @70.7V
CKS 100 50W
50W
CKS 200 100W
100W
CKS 400 200W
200W
CKS 800 400W
400W
CKS 800-2 400W
800W
CKS 1200-2 600W
1200W
CKS 1600-2
800W
Network
Address
Data
8
+ –
Hi
N-Cod
Data
Port
Model
NC-NXS
8
Lo
