Crest Audio NC-MEQ - TECHNICAL Technical Data

INPUT PROCESSING MODULE
FOR CKS, CKV & CKX SERIES
POWER PROCESSING AMPLIFIERS
NC-MEQ
4-band Parametric EQ & Mono Crossover
Product Information
The NC-MEQ Module fits in the Input Processing bay located on the
rear panel of Crest Audio CKS, CKV & CKX Series Power Processing
amplifiers. It is an extremely high quality, fourth-order, two-way elec-
tronic mono crossover that includes a four-band fully programmable
parametric equalizer. The HF output is fed to channel A of the amplifier
and the LF output to channel B. The HF and LF crossover frequencies as
well as their individual output levels are individually programmable.
Each band of the equalizer has programmable boost/cut, bandwidth and
frequency parameters.
Features:
• NexSys compatible, programmable two-way, 24dB per octave electronic crossover
• Four-band parametric EQ with programmable boost/cut, bandwidth and frequency parameters
• All parameters (including precision attenuation settings) programmable via NexSys , hand-held N-Coder or N-Coder/PC software
• Independent two-way, 4th-order, Linkwitz-Riley filters
• Balanced input on barrier strip connector
Internal Features:
• Jumper-selectable gain of X20 (26 dB), X40 (32 dB, factory setting), or constant sensitivity for full output at 0dBu (.775V) in.
• Jumper-selectable assignment of high-pass or low-pass output for each amplifier channel

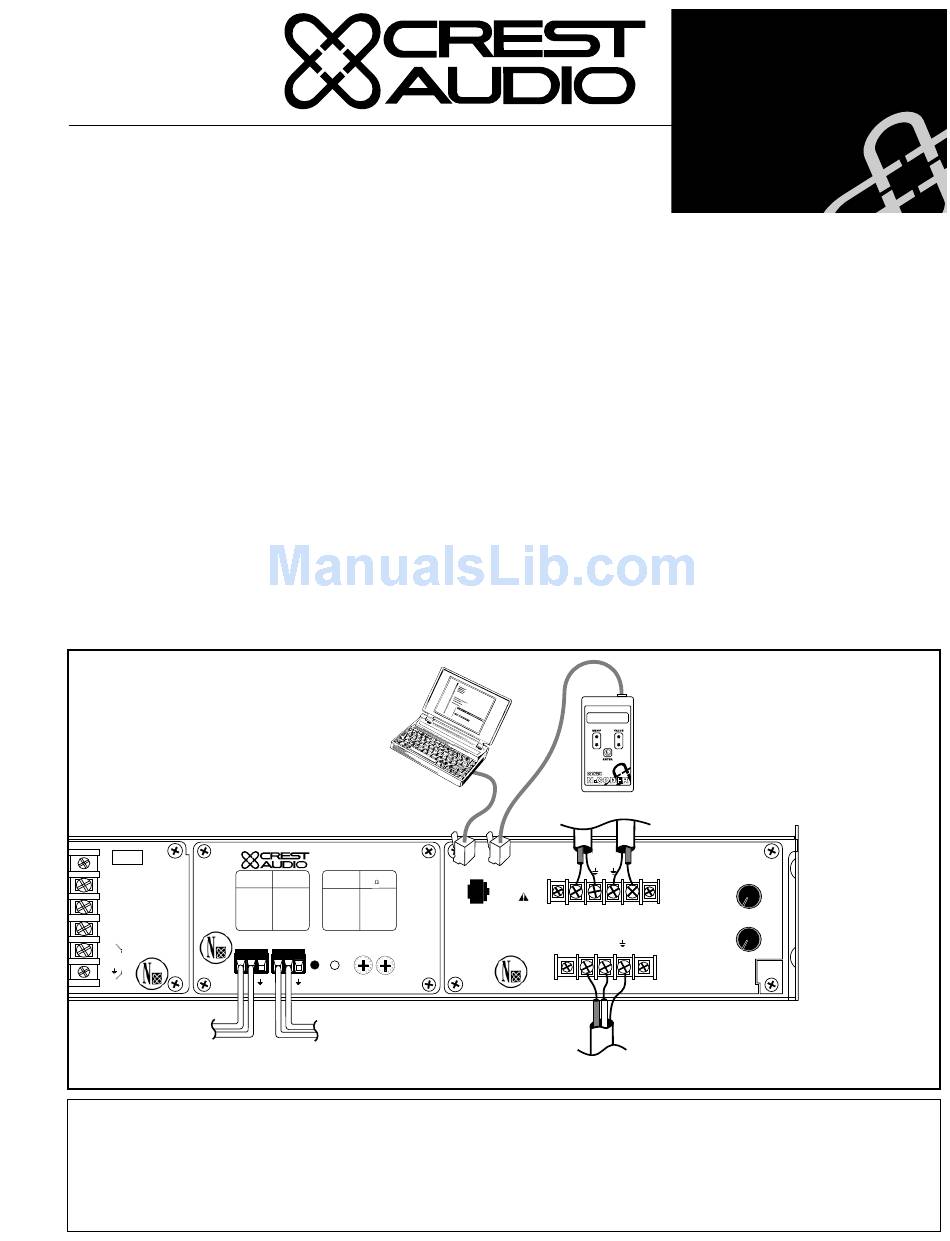

N C - M E Q c o n n e c t i o n s
Designed & manufactured in the USA by:
CLASS 2
WIRING MAY
BE USED
Output
Model
Name
–
A CKV 100
CKV 200
+
CKV 400
CKV 800
CKV 1600
+ CKV 2400
B
–
Signal
Ground
Lift
Jumper
+ –
NexSys Bus
Architects and Engineers Specifications - NC-MEQ.
The module shall plug into Crest Audio CKS or CKV Power Processing amplifiers in the
Input Processing bay. The module shall be NexSys-compatible. The module shall provide a
two-way, 24 dB per octave electronic crossover with programmable HF and LF output lev-
els, HF and LF crossover frequencies, overall output level and HF/LF polarity inversion.
The module shall include a fully programmable four band parametric equalizer with center
frequency, bandwidth and boost/cut parameters. The module shall be controlled/pro-
grammed either by NexSys via an NC-NXS module (if fitted), a hand-held N-Coder or N-
Coder/PC software.
PC Lap-Top running
N-Coder/PC software
Crest Audio Inc.
100 Eisenhower Dr.
Paramus, New Jersey 07652 USA
Output Power Model Output Power
@70.7V Name @8 /Ch.
CKS 100 50W
50W
CKS 200 100W
100W
CKS 400 200W
200W
CKS 800 400W
400W
CKS 800-2 400W
800W
CKS 1200-2 600W
1200W
CKS 1600-2 800W
Network
Address Model
NC-NXS
Data
8 8
+ –
Hi Lo
Unbalanced post-EQ loop-thru barrier strip connectors provide conve-
nient outputs to other amplifiers. An internal jumper selects between
gains of X20 (26 dB), X40 (32 dB), or constant sensitivity for full output
at 0dBu (.775V) in. The standard factory setting is for X40 (32dB).
Individual channel attenuators are provided with removable knobs for
extra security. The NC-MEQ is programmable via NexSys
held N-Coder or N-Coder/PC software. (NexSys-compatible
Power/Output and Network NC modules are required for NexSys imple-
mentation.)
• Post-EQ, loop-thru HF and LF outputs
• Removable gain pot knobs for security
N-Coder
Crest Audio
Revision 1.03E
OR
To other amplifiers
Daisy Chain Output
HP LP
N-Coder
Data
Port
Input
+
–
Input
Signal
All programmed settings shall be stored in non-volatile EEPROM memory. A barrier strip
input connector shall feed one electronically balanced input. Two removable-knob gain pots
shall be provided that control the level of each amplifier channel independent of program-
ming. Post high pass and low pass loop-thru outputs shall be available on barrier strip con-
nectors. An internal input sensitivity/voltage gain jumper shall be provided with selections
of 0dBu, X20 and X40. The module shall be designated the Crest Audio model NC-MEQ.
Power
Processing
Modules
5
Level 4
6
A 3
7
2
8
1
9
0
10
5
Level 4
6
B 3
7
2
8
1
9
0
10
Model
NC-MEQ
® , the hand-
