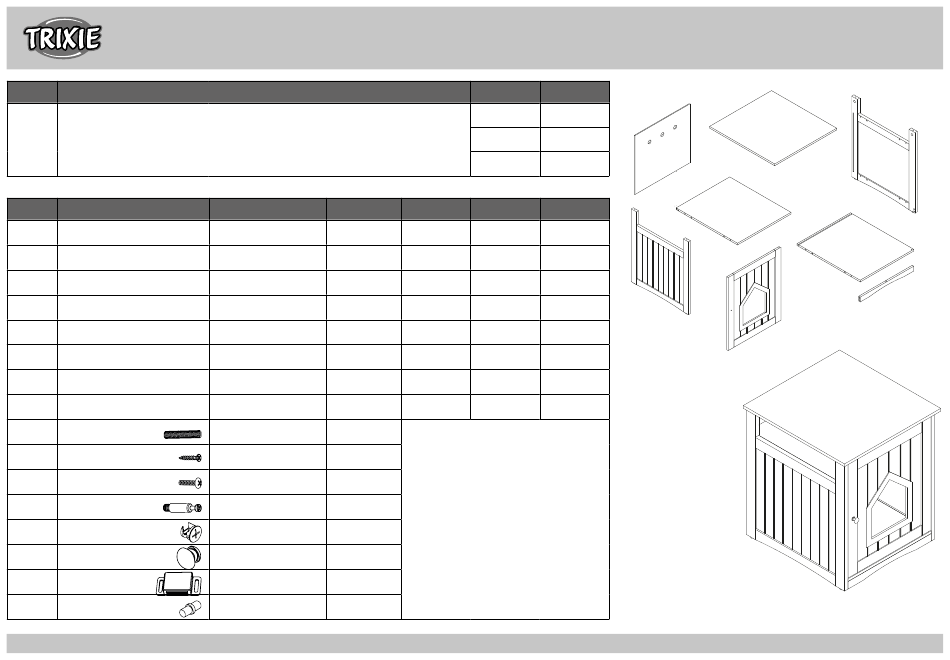

Trixie 40293 Assembling Instruction & Part List

Item No.
4029
Pos. No. Description
Pos. 1 Bottom plate
Pos. 2 Side panel, left
Pos. 3 Side panel, right
Pos. 4 Front plate
Pos. 5 Backwall
Pos. 6 Middle plate
Pos. 7 Closing strip
Pos. 8 Roof
Pos. a Dovel
Pos. b Countersunk screw
Pos. c Screw for Knob
Pos. d Bolt for Cam Lock
Pos. e Cam Lock
Pos. f Knob
Pos. g Closing Latch, magnetic
Pos. h Peg Insert for door
030320
Home Kennel
Measurement Quantity
19.25 × 16.25 × 0.25 in.
1
(49.4 × 41.8 × 1.2 cm)
21.6 × 19.25 × 0.5 in.
1
(55 × 49.5 × 1.8 cm)
21.6 × 19.25 × 0.5 in.
1
(55 × 49.5 × 1.8 cm)
19.5 × 16.25 × 0.25 in.
1
(49.6 × 41.5 × 1.2 cm)
16.75 × 16 × 0.11 in.
1
(42.8 × 41 × 0.3 cm)
18.5 × 16.25 × 0.25 in.
1
(47.6 × 41.8 × 1.2 cm)
16.5 × 0.12 5 0.25 in.
1
(41.9 × 0.32 × 1.2 cm)
20 × 19 × 0.75 in.
1
(51 × 48.5 × 2.4 cm)
ø 0.236 × 1 in.
13
(ø 6 × 30 mm)
0.118 × 0.472 in.
2
(M3 × 12 mm)
0.157 × 0.708 in.
1
(M4 × 18 mm)
0.236 × 1.25 in.
12
(M6 × 35 mm)
ø 0.25 × 0.393 in.
12
(ø 12 × 10 mm)
1
1
2
TRIXIE Pet Products, Inc. · P.O. Box 101196 · Ft. Worth, TX 76185 · www.trixiepet.com
Color Code
white 3
gray 4
brown 5
Item No. -3 Item No. -4 Item No. -5
40293-10 40294-10 40295-10
40293-20 40294-20 40295-20
40293-21 40294-21 40295-21
40293-30 40294-30 40295-30
40293-40 40294-40 40295-40
40293-50 40294-50 40295-50
40293-51 40294-51 40295-51
40293-52 40294-52 40295-52
40293-60
Assembling Instruction & Parts List
8
5
6
2
4
E Advice:
Do not sit or stand on this product.
It is intended for pets only.
This product should be assembled by an adult.
#4029
