TRENDnet TC-P24C5E Hardware Installation

Hardware Installation
Instructions

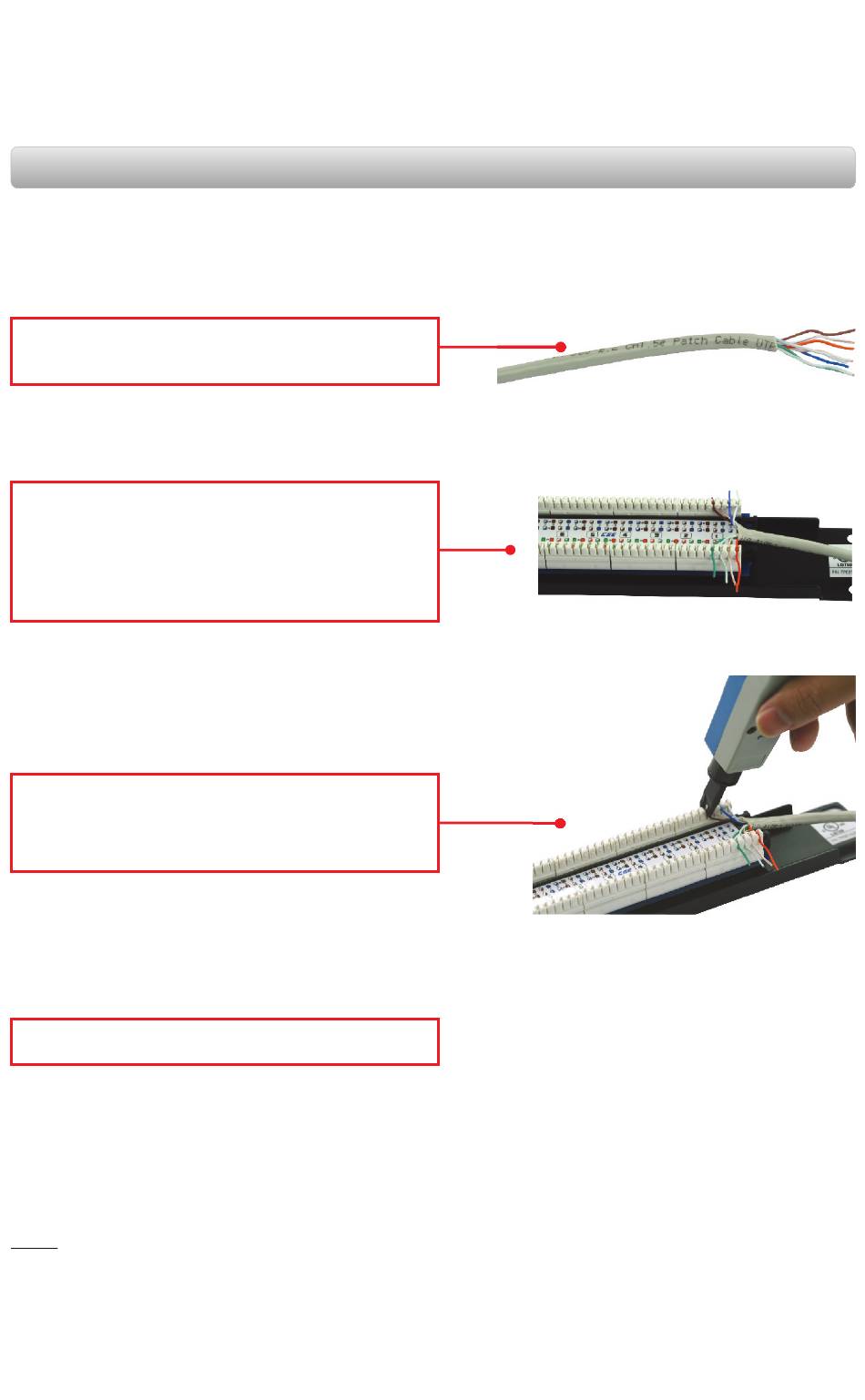

1. Strip approximately 30mm from a patch cable and
separate the wires.
2. Layout the wires onto the patch panel based on the
IDC color code. The IDC color codes can be found
on the patch panel. (Reference the color codes
labeled A for T568A. Reference the color codes
labeled B for T568B.
3. Use a punchdown tool (e.g. TC-PDT) to terminate
the wires. Make sure that the cutting blade is
positioned on the outside of the patch panel.
4. Repeat steps 1-3 for each port.
Note: The patch panels carry a 2-year warranty. Go to www.trendnet.com/support and click on the
