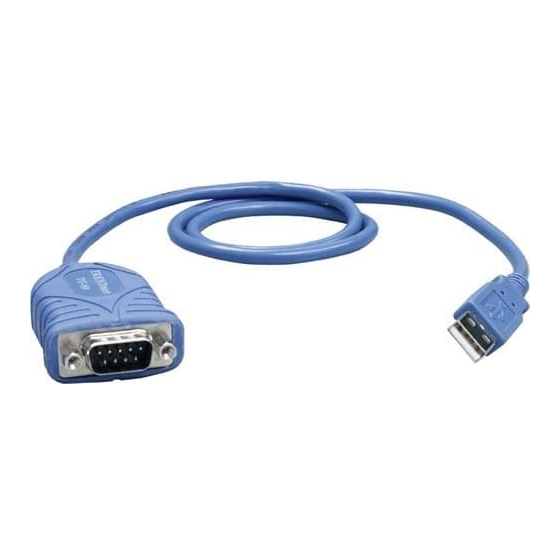

TRENDnet TU-S9 User Manual

Hide thumbs Also See for TU-S9:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TU-S9

Summary of Contents for TRENDnet TU-S9

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ......................1     Features ..........................1 Package Contents ......................1   System Requirements ......................1   2. Installation ......................2   On Windows Vista ......................2   On Windows 98SE/ME/2000/XP/2003 Server ..............4   Verify the Driver Installation on Windows ...............

  • Page 3: Introduction

    Draws its power from USB connection – no extra power adapter required Supports Windows 98SE, ME, 2000, XP, 2003 Server, Vista 32/64-bit and Mac10.1~ 10.5 Package Contents Before installation, please check the items of the package. TU-S9 Driver CD-ROM Quick Installation Guide System Requirements IBM compatible computer or Mac Windows ®...

  • Page 4: Installation

    2. Installation On Windows Vista Note: DO NOT connect the USB Serial Converter to your computer before completing the driver installation. 1. Insert the provided CD into your CD-ROM drive. 2. Click Autorun.exe. 3. Click Install Driver. 4. Click Next.
  • Page 5 5. Click Install. 6. Click Finish. 7. Connect the TU-S9 to an available USB port of your computer 8. Drivers will install automatically.

  • Page 6: On Windows 98Se/Me/2000/Xp/2003 Server

    On Windows 98SE/ME/2000/XP/2003 Server Note: DO NOT connect the USB Serial Converter to your computer before completing the driver installation. 1. Insert the provided CD into your CD-ROM drive. 2. Click Install Driver. 3. Click Next. 4. Click Install.
  • Page 7 5. When the following screen appears, click Finish. 6. Connect the TU-S9 to an available USB port of your computer 7. Drivers will install automatically.

  • Page 8: Verify The Driver Installation On Windows

    Verify the Driver Installation on Windows To verify your converter installation, please launch Device Manager by the steps below: On Windows 98SE/ME/2000/XP/2003 Server: Right-click on My Computer > Properties > System > (Hardware) > Device Manager. On Windows Vista: Right-Click on My Computer >Proper Properties > Device Manager.

  • Page 9: On Mac Os 10.1 ~ 10.5

    On Mac OS 10.1 ~ 10.5 1. Insert the provided driver CD into your CD-ROM drive. Double-click the CD icon on the desktop and navigate to the directory of \Driver\Mac. Copy and then paste the PL2303_1.2.1r2.dmg file to the desktop. 2.
  • Page 10 5. Click Install. 6. When the Authenticate screen appears, enter your password in the provided field and click OK. 8. Click Continue Installation. 9. Click Restart to finish installing the driver and reboot your Mac.

  • Page 11: Connecting Serial Device

    10. Connect the converter to a free USB port on your Mac. 11. To verify the installation: Go to Apple System Profiler > Extensions and you should find ProlificUsbSerial among the list. This means the installation is successfully done. Connecting Serial Device Now you can connect your RS-232 device to the converter.

  • Page 12: Specifications

    3. Specifications Data Transfer Rate 500 kbps Function USB1.1 Serial Converter operates as a bridge between one USB port and standard RS-232 serial port Ports USB 1.1, USB Type A male Power Bus-powered Operating System Support Windows 98SE, ME, 2000, XP, 2003 Server, Vista Mac OS X 10.1 ~ 10.5 Accessories Driver CD, Quick Installation Guide...

  • Page 13: Regulatory Compliance

    4. Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 14 2 Years Limited Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
  • Page 15 SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
