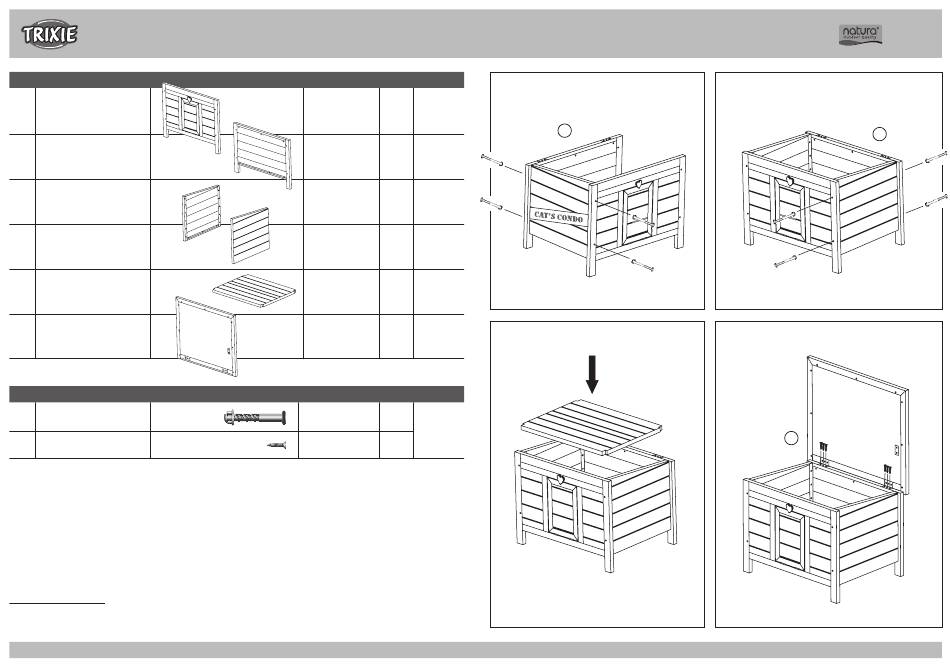

Trixie 01-44094 Assembling Instruction

Pos. Description
1 Front part
2 Back wall
3 Side panel, left
4 Side panel, right
5
Floor part
6
Roof
Pos. Description
A Thread screw with nut
B Countersunk screw
 Made in China.

Hecho en China.
MX
170616
Aufbauanleitung/Assembling Instruction/Instruction de montage
Part List and Assembling Instruction
Measurement Quantity Item
376 × 379 × 20 mm 1 44094-10
.
376 × 355 × 20 mm 1 44094-40
.
428 × 334 × 28 mm 1 44094-20
.
428 × 334 × 28 mm 1 44094-30
.
425 × 353 × 23 mm 1 44094-50
.
510 × 420 × 30 mm 1 44094-60
.
Size Quantity Item
M6 × 50 mm 8+1
. 44094-70
ø 3 × 16 mm 6+1
.
TRIXIE Pet Products, Inc. · P.O. Box 101196 · Ft. Worth, TX 76185 · www.trixiepet.com
Fix the front part (1) and the back wall (2) to the left side panel (3).
A
4 ×
1.
Insert the floor part (4).
3.
Cats Home
01-44094
Item
Next, fix the right side panel (4).
A
4 ×
2.
Finally, screw the angles of the roof (6) on the back wall.
B
6 ×
4.
81860
