Intermatic TIME-ALL HB113 Manual

154--01256

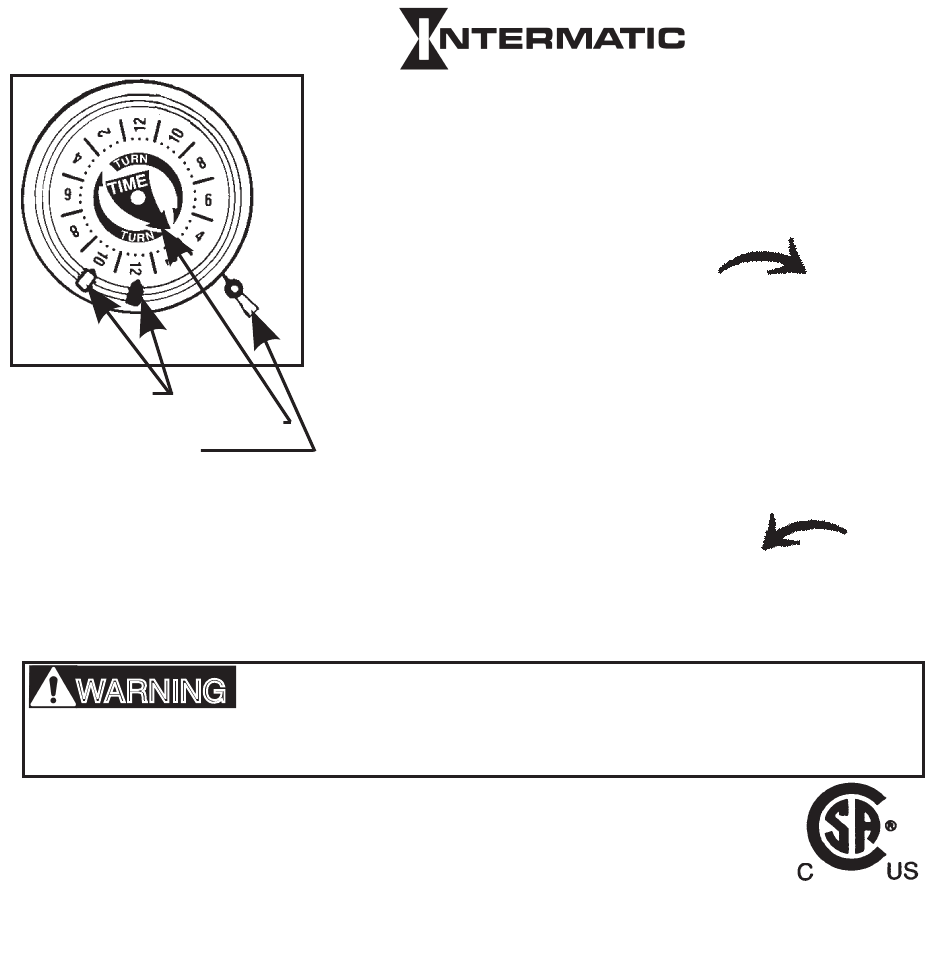

(C) TRIPPERS
(B) TIME-OF-DAY MARKER
(A) MANUAL KNOB
FOR EARLY ON OR OFF OPERATION,
Turn manual knob (A) counter clockwise
desired ON or OFF position. Timer will follow next
scheduled automatic operation.
IN CASE OF POWER FAILURE , RESET TIMER, (SEE STEP 2)
WARNING
WATTAGE OF LAMPS OR APPLIANCES BEING CONTROLLED SHOULD
NOT EXCEED CAPACITY OF TIMER.
MODEL: HB113
CONTACT: 1 HP (12 FLA, 72 LRA), (12A. AIR CONDITIONER)
20 A RESISTIVE, 8 A INDUCTIVE 1250 W TUNGSTEN TV-5,
576 VA PILOT DUTY, 125 V AC, 60 Hz.
CLOCK MOTOR: 125 VOLT 60 Hz.
MADE IN MEXICO
PROGRAM REPEATS EVERY 24 HOURS
TO SET TIMER: (SEE ILLUSTRATION)
1. Insert ON (RED) and OFF (BLACK)
trippers(C) into dial at desired ON
and OFF times.
2. Turn dial CLOCKWISE
more complete revolutions until
the correct time-of-day is adjacent
to the time-of-day marker (B).
3. Turn lamp or appliance ON and
plug into timer.
4. Plug timer into electrical outlet.
Risk of Fire
HEAVY DUTY TIMER
INTERMATIC INCORPORATED
SPRING GROVE,ILLINOIS 60081-9698
TIME-ALL
one or
LR3730
®
to
