2650-509X-10 Rev. C
Preliminary Steps
1. Read instructions thoroughly. Please consult a qualified mechanic if you
have not had training in the proper installation of instruments.
2. Determine ideal mounting location. Consult your vehicle's repair manual
to locate:
A) Fuel Pressure Port
B) Oil Pressure Port
C) Any other Pressure port
INSTALLATION
1. Locate pressure port. This gauge is designed for 1/8" NPT. In some
cases an adapter may be necessary.
2. Install T-fitting if needed to share test port with additional gauge(s).
3. Ensure the regulator is mounted with the gauge face vertical,
at the right angles to the ground, with the Vent Valve at the top.
4. Apply Teflon sealing compound to insure a leak-free connection.
5. Install gauge into pressure port, being careful not to over tighten.
6. After installation, start engine and check all connections for leaks.
OPERATION
Your gauge may be equipped with an external vent valve for the purpose of venting the gauge. Changes in temperature and environmental
pressure can affect how a liquid filled gauge reports pressure. Your new Auto Meter liquid filled gauge may be equipped with a unique vent valve
that allows gauge pressure to be equalized to atmosphere, as needed, insuring accurate pressure readings regardless of operating conditions.
To vent the gauge case push the black band back covering the vent valve head and gently lift it up slightly, DO NOT REMOVE THE VALVE.
Once the valve is raised, gauge case pressure is again equalized to atmosphere, and reported pressure will be accurate. Please push the stem
back down and replace the black retaining band immediately after equalizing pressure to reseal the gauge and help retain the valve during vehicle
operation.
NOTE: The gauge must be mounted with the gauge face vertically, (or as close to 90° to the ground as possible) with the vent on
top. This is to prevent the gauge from leaking during venting.

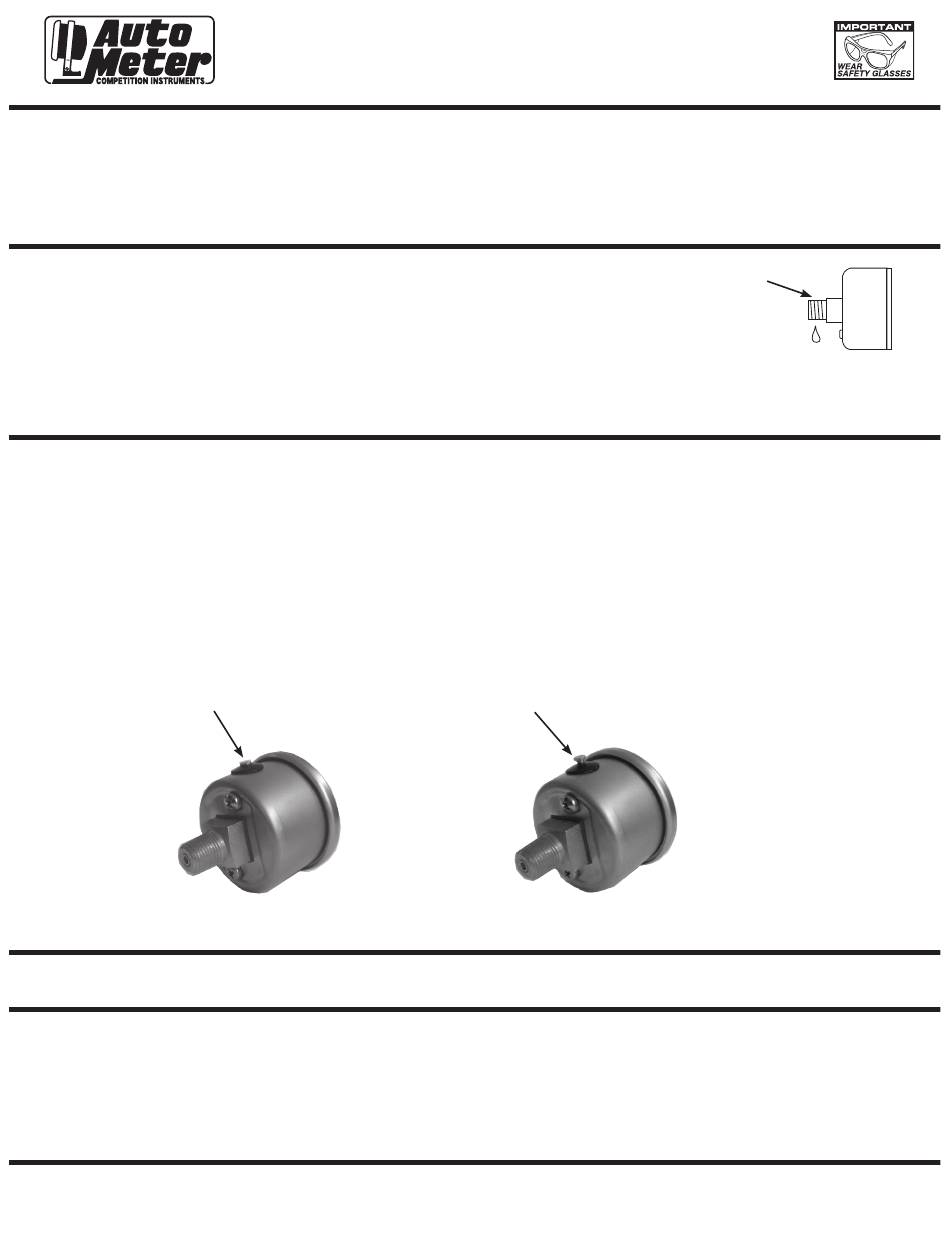

Vented Closed
NOTE: This liquid filled gauge is not intended to be 100% full of liquid. When held vertical, the level can appear to be between 3/4 and 7/8 full.
For service send your product to Auto Meter in a well packed shipping carton. Please include a note explaining what the problem is along with your phone number. If you are sending product
back for Warranty adjustment, you must include a copy (or original) of your sales receipt from the place of purchase.
AUTO METER Products, Inc. warrants to the consumer that all AUTO METER High Performance products purchased from an Authorized AUTO METER Reseller will be free from defects in material and
workmanship for a period of twelve (12) months from date of the original purchase. Products that fail within this 12 month warranty period will be repaired or replaced at AUTO METER's option, when
determined by AUTO METER that the product failed due to defects in material or workmanship. This warranty is limited to the repair or replacement of parts in the AUTO METER High Performance product and
the necessary labor done by AUTO METER to effect the repair or replacement of the AUTO METER High Performance product. In no event shall AUTO METER's cost to repair or replace an AUTO METER
High Performance Product under this warranty exceed the original purchase price of the AUTO METER High Performance Product. Nor shall AUTO METER Products, Inc. be responsible for special, incidental
or consequential damages or costs incurred due to the failure of an AUTO METER High Performance Product. This warranty applies only to the original purchaser of the AUTO METER High Performance
Product and is non-transferable. This warranty also applies only to AUTO METER High Performance Products purchased from an Authorized AUTO METER Reseller. All implied warranties shall be limited
in duration to the said 12 month warranty period. Breaking the instrument seal, improper use or installation, accident, water damage, abuse, unauthorized repairs or alterations voids this warranty. AUTO
METER disclaims any liability for consequential damages due to the breach of any written or implied warranty on all products manufactured by AUTO METER Products, Inc. For a comprehensive listing of
Un-Authorized Auto Meter Resellers please visit www.autometer.com/autometerlocator/index/unauthorized.
FOR SERVICE SEND TO: AUTO METER PRODUCTS, INC.
INSTALLATION INSTRUCTION
1½" PRESSURE GAUGES
12 MONTH LIMITED WARRANTY
Email us at service@autometer.com
CAUTION: Some late model vehicles use electronic sensors in their
pressure and temperature senders for engine control functions. Before
removing the original senders, we recommend that you contact your Auto
Dealer to be sure no critical functions will be disrupted. With pressure
gauges, it is beneficial to add a T-fitting to install your new gauge and to
keep the warning light operational. This allows you to monitor the
pressure and still have a warning light to indicate emergency conditions.
Use Teflon Sealing Compound
On Pipe Threads.
Vent Open
SERVICE
413 W. Elm St., Sycamore, IL 60178 USA (866) 248-6357
© 2016 Auto Meter Products, Inc.
1/8-27 NPT
2650-509X-10 Rev. C
1/5/16
