Delta MegaRack Ultra MR150A Assembly Instructions

MegaRack Ultra
Assembly instructions
Begin by installing the extendible stay mounts on to your MegaRack using four hex-head bolts ( g.1).
1
Hold the MegaRack up to your bicycle's braze-on mounts to determine whether you will want to use
2
inside or outside mounting, pointing up or down ( g.2).
IMPORTANT NOTE
For bicycles without brazed-on threaded eyelets, use Delta stainless steel frame clamps.
These are available to t standard 5/8" tubing (MR1030) or oversized 7/8" tubing
(MR1040). ( g. 3).
Tighten the bolts just enough to hold the rack in place yet allow repositioning by hand.
3
Loosely attach the lower legs of the MegaRack to the threaded holes of your bicycle's rear axle dropouts.
4
It may be necessary to spread the MegaRack to t over the outside of the frame. Do not tighten yet.
Position the MegaRack so it's top plate is level. Extend the stay mounts until they line up with the braze-ons.
5
It may be necessary gently bend the rack stays for some bicycles. Fasten with two hex head bolts. You should
now tighten all the other bolts.
6 For bikes with rear disc brakes, replace the lower adjustable support arm with optional part # MR150D.
WARNING
This rack should never be used as a seat
or to carry passengers. (max load 40 lbs, 18 kgs).
™
MR150A
Delta
frame clamps
(MR1030)
or (MR1040)

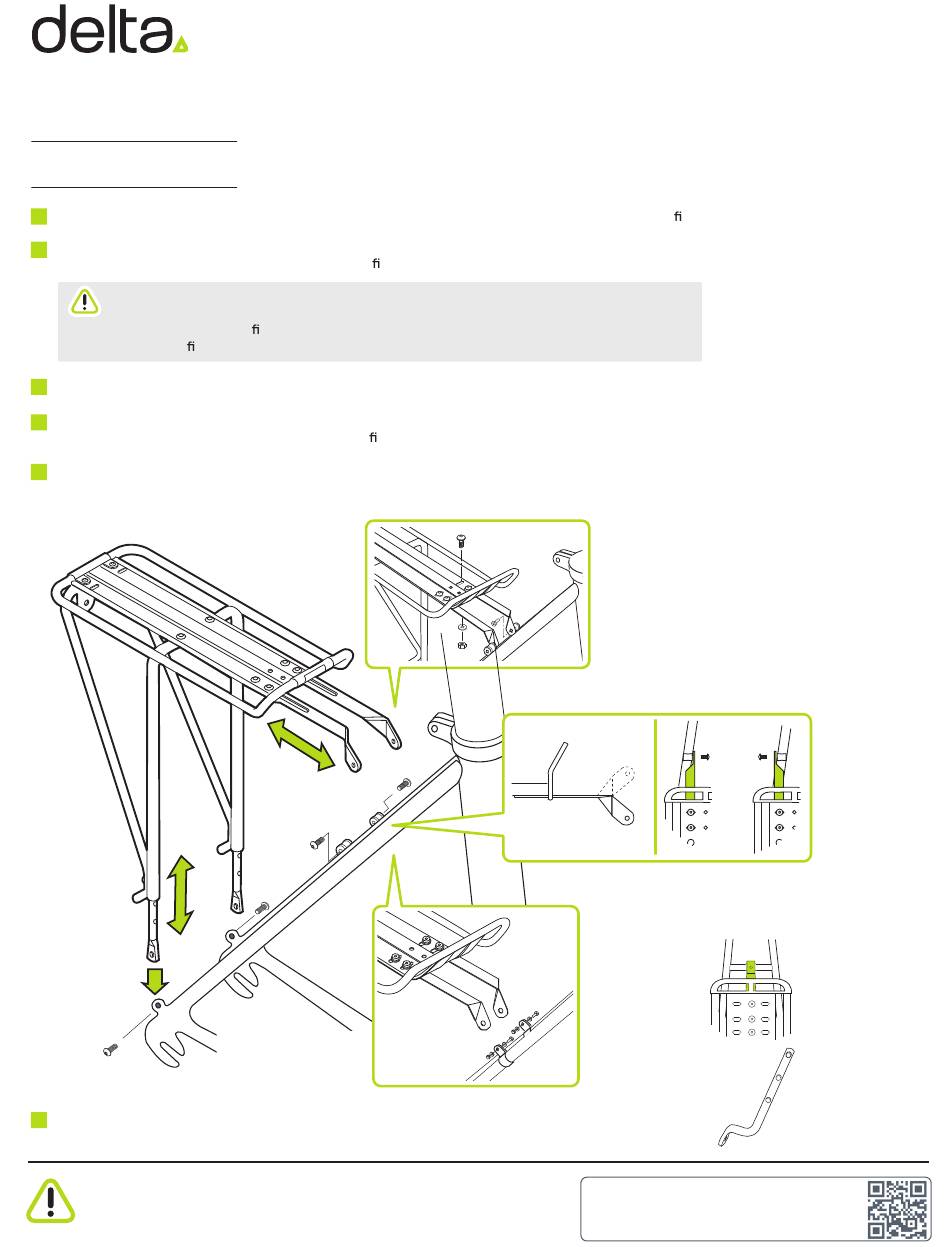

FIGURE 1
FIGURE 2
FIGURE 3
Service:
Please do not return to store;
for immediate response email
service@designbydelta.com
Inside
Mount
Outside
Mount
Brake Bridge
Center Mounting Kit Available
(MR1020)
