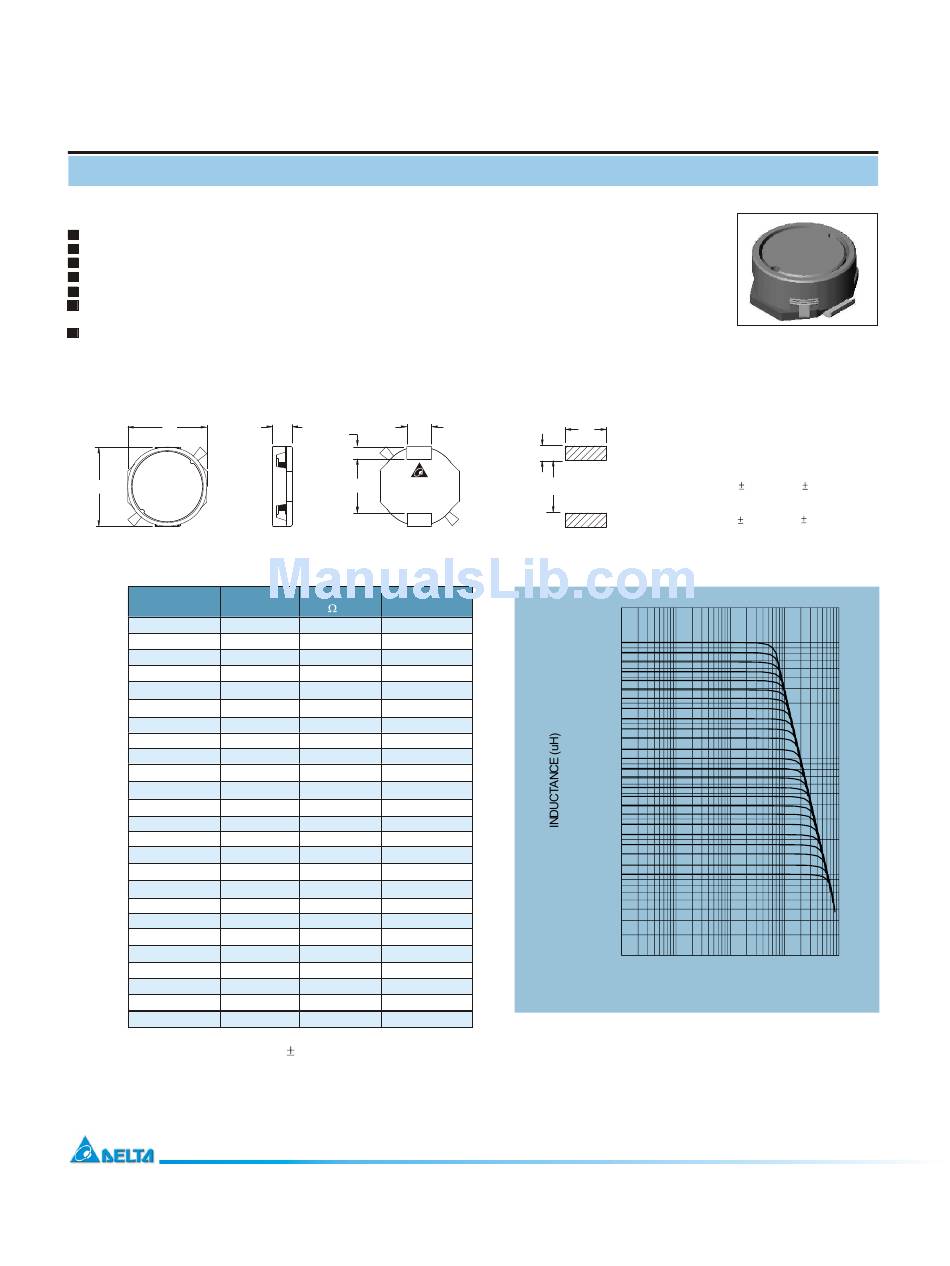

Delta Electronics SMT Power Inductor SIWC1360 Product Specifications

SMT Power Inductor
SIWC1360 Type
Features
RoHS compliant.
Low profile (6.3mm max. height) SMD type.
Magnetically shielded, suitable for high density mounting.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Idel for power source circuits, DC-DC converter,
DC-AC inverters inductor application.
In addition to the standard versions shown here,
customized inductors are available to meet your exact requirements.
Mechanical Dimension:
B
A

Electrical Characteristics:

PART NO.
SIWC1360 - 100
SIWC1360 - 120
SIWC1360 - 150
SIWC1360 - 180
SIWC1360 - 220
SIWC1360 - 270
SIWC1360 - 330
SIWC1360 - 390
SIWC1360 - 470
SIWC1360 - 560
SIWC1360 - 680
SIWC1360 - 820
SIWC1360 - 101
SIWC1360 - 121
SIWC1360 - 151
SIWC1360 - 181
SIWC1360 - 221
SIWC1360 - 271
SIWC1360 - 331
SIWC1360 - 391
SIWC1360 - 471
SIWC1360 - 561
SIWC1360 - 681
SIWC1360 - 821
SI WC1360 - 102 1000
1. Tolerance of inductance :
2. Irated is the DC current which cause the inductance drop less than 20% of its nominal inductance without current
and the surface temperature of the part increase less than 45 C.
3. Operating temperature: -20 C to 105 C (including self-temperature rise).
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
C
D
E
F
o
25 C: 1KHz, 1V
1 Irated
L DCR
(uH)
( )MAX (Adc)
10 0.022 4.40
12 0.027 4.20
15 0.034 4.00
18 0.038 3.50
22 0.044 3.20
27 0.048 2.90
33 0.059 2.50
39 0.078 2.10
47 0.084 2.00
56 0.100 1.90
68 0.113 1.80
82 0.137 1.50
100 0.152 1.50
120 0.197 1.30
150 0.239 1.30
180 0.302 1.10
220 0.341 1.10
270 0.428 0.98
330 0.510 0.86
390 0.587 0.83
470 0.765 0.70
560 0.872 0.70
680 1.162 0.62
820 1.313 0.57
1.586 0.46
2 0%.
o o
252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com
RECOMMENDED PAD PA TTERNS
5.0
3.0
7.6
2
1000.00
100.00
10.00
0.00
o
72
UNIT:mm/inch
A = 13.0 / 0.512 Max.
B = 13.0 / 0.512 Max.
C = 6.0 0.3 / 0.236 0.012
D = 4.0 / 0.157
E = 2.0 / 0.079
F = 8.6 0.1 / 0.339 0.004
102
821
681
561
471
391
331
271
221
181
151
121
101
820
680
560
470
390
330
270
220
180
150
120
100
0.01 0.10 1.00 10.00
CURRENT (A)
