- Page 1 LV65B Indoor/Outdoor CPE User Guide (LV65B)
-
Page 2: Federal Communication Commission Interference Statement
Use of another adapter could result in damage to the unit. The following power adapter is qualified for use with this Tri-band - 5G Business Internet Receiver: This unit must be powered by Delta Electronics, model ADH-65BR H or equivalent UL listed power adapter rated @ output 56Vdc, Maximum 1.161A. -
Page 3: Installation Statement
Caution Ensure to connect the power cord of the power adapter to a socket outlet with an earthing connection. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 4 Chapter 1 Introduction Unboxing Information/Product Package Inside the product package for the LV65B CPE you should find the following items: Outdoor (Device package): Items Quantity Power adapter IDU Kit (Separate from device package) Items Quantity Indoor bracket Screws & anchors (indoor)
- Page 5 Product Overview Indoor:...

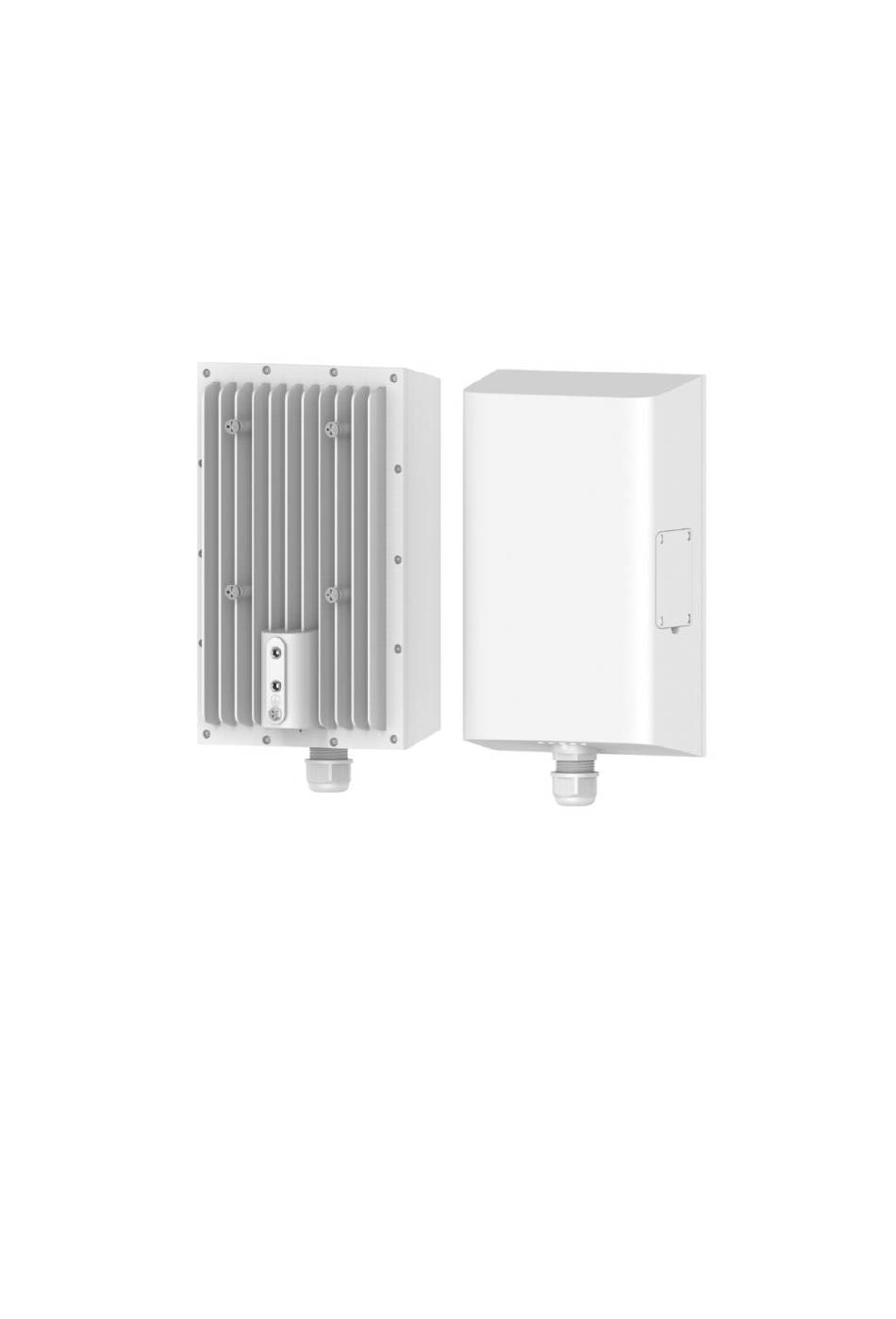

- Page 6 Outdoor: IO cover Cable gland J-pole screw GND screw (2 pcs) Front side Side view Back side Label Bottom side...
- Page 7 Outdoor: SIM slot cover (Material: rubber) I/O cap Remove the I/O cap to access the SIM slot cover SIM slot cover (Material: rubber) Remove the SIM slot cover to insert/remove a SIM card or Micro USB card.
- Page 8 PSE Adapter: Ethernet Ports on the side of the PSE Adapter...
- Page 9 J-Pole Installation Step 1: • Adjust pole angle to best meet base station direction. • Tighten 2 elbow nut to fix the angle: Torque: 140 +/-10 kgf-cm Torque: 10.12 +/-0.72 lbf-ft • Detail of the elbow screw is shown in next page. Step 2:...
- Page 10 5 mm • Hang the ODU device on the J-Pole • Tightening two HEXI screw after ODE hang in place (screw had pre-mounted with j-pole already) Torque: 60 +/-10 kgf-cm Torque: 4.32 +/-0.72 lbf-ft Step 3: Detail of the elbow screw: M6 nut Tighten the nut to fix the angle...
- Page 11 Unit: mm • Tighten 4 screws to fix the base bracket onto the wall. • Screw information: Screw Type: ¼”x2” Wood Screw Screw Head: HEX head Step 5: • (If need) Loosen 2 nuts and re-adjust pole angle to best meet base station direction. •...
- Page 12 Finish the waterproof cable gland setup as below: Note: For ODU installation, please use the RJ45 cable without latch jacket. Step 7:...
- Page 14 Indoor Installation (Glass Window Mounting) Step 1: Signal scanning Hold the Verizon Receiver close to the window to perform signal scanning (hold the device at a height above your head when doing so). Once a location with good signal strength is found, the LED on the device will turn solid white. Affix a location sticker to the spot on the window glass where the device will be mounted (the location stickers can be found on the side of the device’s cover).
-
Page 15: Protective Film
Step 3: Peel off the protective film from the Gecko tape on the indoor bracket, and then affix the indoor bracket on the window in the orientation shown below. Protective film Step 4: Use both thumbs to apply solid pressure in all areas where Gecko tape makes contact with the glass to ensure a secure installation. - Page 16 Note: If, after installation, the bracket is not horizontal, you can use the lazy Susan feature to adjust the orientation of the bracket.
- Page 17 Step 5: Once the indoor bracket is securely affixed to the window, align the bracket slot on the IDU with the bracket arms on the bracket, then push the device into the bracket until a “click” sound is heard. Step 6: Adjust the orientation of the device until its top and sides are perfectly horizontal or vertical.
- Page 18 Indoor Installation (Glass Window Mounting) Step 1: Signal scanning Hold the Tri-band - 5G Business Internet Receiver near different locations on the wall to perform signal scanning (hold the device at a height above your head when doing so). Once a location with good signal strength is found, the LED on the device will turn solid white.
- Page 19 Step 3: Drill installation holes and install the bracket Use a power screwdriver to drill holes in the marked locations, then take two wall anchors and place them into the holes (make sure the tops of the anchors are flush with the wall). Step 4: Install bracket Align the holes on the indoor bracket with the wall anchors, then take two screws from the indoor wall screw pack and screw them into the wall anchors.
- Page 20 LED and Audio Behavior Receiver LED Definition: Status PWR LED Sound Boot up Power On / Normal Operating Mode Not Applicable Solid White Bluetooth Pairing BT (Shows for 60 seconds or until Not Applicable the device is paired) Cyan to OFF to Green to OFF (switch every 200 ms) BT connection successful Not Applicable...
- Page 21 Internet available Not Applicable Solid White, Internet APN is available Internet not available Not Applicable Solid Red, Internet APN is not available Internet disabled through device settings Not Applicable Amber blinking (600 ms ON, 600 ms OFF) until Internet's available Status Connectivity LED Sound...
- Page 22 Reset Button Button press duration Function Hold (>3 seconds) Switch between installation mode and regular usage mode Hold (1-2 seconds) Restores device to factory settings Resets the device’s smart antenna (this needs to be done before any Single click (<1 second) subsequent signal scans after the first one) Chapter 2 Product Specifications...
