curt 11208 Manual

11208
11/19/2009
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY AUXILIARY STABILIZING STRAPS.
** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY**
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
TIE-DOWN LOOP
3
7
HITCH WEIGHT: 12 LBS.
INSTALL TIME
PROFESSIONAL: 45 MINUTES
NOVICE (DIY): 90 MINUTES
INSTALL NOTES:
- DRILLING REQUIRED
- FISHWIRE HARDWARE

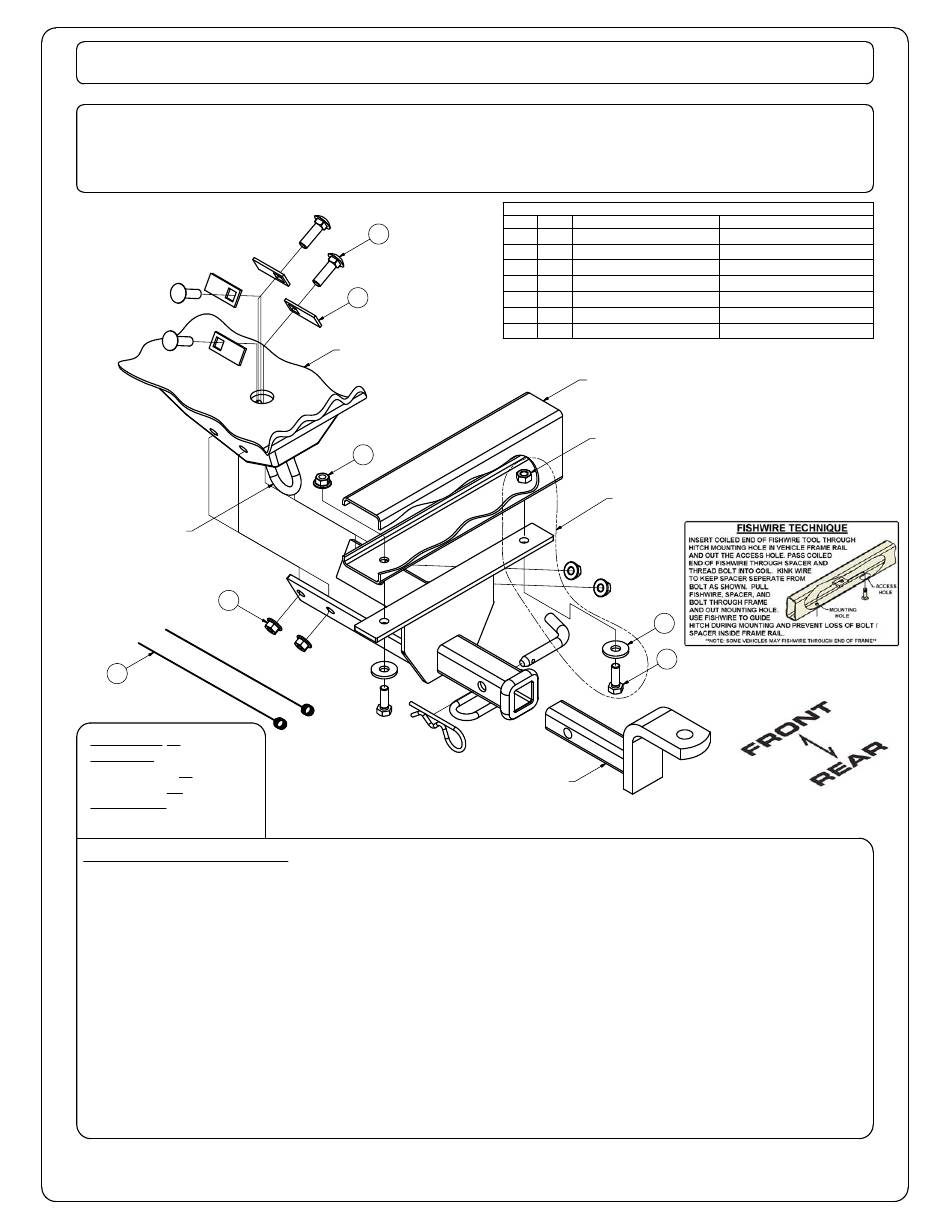

INSTALLATION STEPS
1. This hitch mounts to the bottom of the metal bumper beam and to the sides of the tie-down loop reinforcement
at the bottom center of the floor pan.
2. Place the hitch centered and square on the bumper beam with the tail brackets on both sides of the tie-down
loop. Using the hitch as a template, mark the bumper beam for fasteners as shown.
have existing weld nuts in the bumper beam for fasteners as shown.
3. Remove the hitch, and drill for fasteners. Place the hitch over the holes and install fasteners.
4. With the hitch level on the car, use the hitch as a template and drill four holes through the sides of the tie-down
reinforcement for fasteners. From the inside of the car, locate the floor area over the tie-down reinforcement.
Make an access hole to allow fishwiring of fasteners into place as shown. Install remaining fasteners, as
shown.
5. Torque all 7/16" hardware to 50 ft-lbs. Torque all M10 hardware to 37 ft-lbs.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
24654 / 247302
1992-2002 HONDA PRELUDE COUPE
1
2
TIE-DOWN LOOP
REINFORCEMENT
6
DESIGNED FOR USE WITH
BALLMOUNT #55001 / 45501
2,000 LBS. TRAILER WEIGHT &
1-800-798-0813
Parts List
ITEM QTY PART NUMBER
1 4 7/16-14 x 1 1/2
2 4 CM-SP108
3 4 7/16-14
4 2 M10 - 1.25 x 30
5 2 7/16"
6 2 M10 - 1.25 HEX FLANGE NUT
7 2 7_16 FISHWIRE
METAL BUMPER BEAM
EXISTING WELD NUT
OLDER MODELS
SHOWN
5
4
NOTE: Older models
200 LBS. TONGUE WEIGHT.
DESCRIPTION
CARRIAGE BOLT
2.00 X 0.88 X .125 SPACER
HEX FLANGE NUT
HEX BOLT
CONICAL TOOTHED WASHER
HEX FLANGE NUT
7/16" FISHWIRE
