EVGA BR Series Manual

Introduction: Premium Power

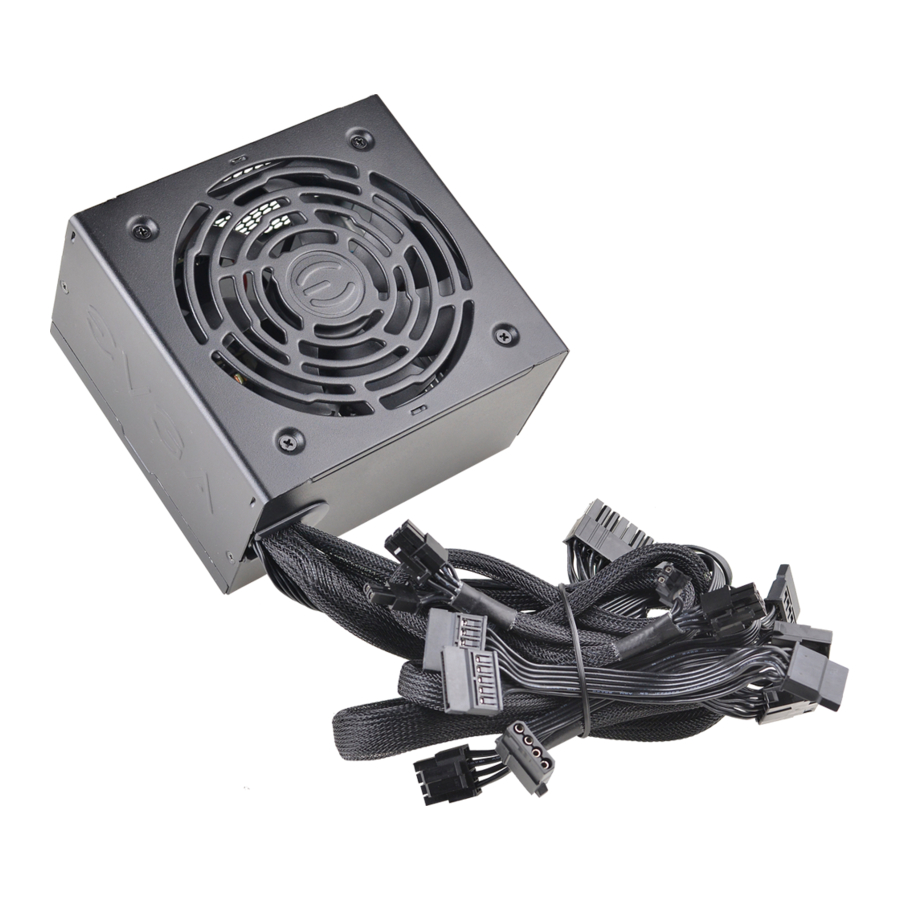

Thank you for purchasing the EVGA 450/500/600/700 BR 80 PLUS^® BRONZE Rated power supply. EVGA 450/500/600/700 BR are premium quality power supplies intended to meet the needs of the most demanding PC enthusiast systems. Designed with enthusiast needs in mind, EVGA 450/500/600/700 BR is the best choice to power next generation systems.

Features

STABLE POWER
The BR series has outstanding electrical performance with ultra stable voltage and extremely clean power output. This can help you achieve the highest possible overclock (optional) and provide the most stable and reliable power to all components. The BR series also provides up to 85% (115V~)/85% (230V~) efficiency and is 80 PLUS^® BRONZE certified.

TOP QUALITY PROTECTIONS
The BR series comes equipped with the most comprehensive protection set possible, including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), and OverCurrent Protection (OCP). This product is also covered by a 3-year warranty and EVGA's legendary customer service and support.

Installation

Remove the power supply from its packaging.
Use the screws provided with your case to install the power supply into your computer. NOTE: It is recommended to install the power supply with the fan facing down. However, if your case places the power supply at the bottom of the case and there are no ventilation holes available, it may be best to install the power supply with the fan facing up for greater efficiency and reliability.
Connect the 20+4-pin ATX cable to the motherboard.
Connect the 4+4-pin EPS12V cable to the motherboard.
Connect the 6/6+2-pin PCI-E cables to your graphic card(s).
NOTE: Do not attempt to plug an 8-pin PCI-E cable into a 6-pin connector without first detaching the two extra pins.
Connect SATA power cables to all data drives or optical drives.
(hard drives, solid state drives, optical drives)
Connect the peripheral "Molex" 4-pin connectors for fans, pumps, legacy components and other devices/adapters.
Connect the AC power cord lo your power supply and to the wall. Check all connections to assure a solid connection and turn the power switch on the power supply to the ON position.

450/500/600 BR Cable Configuration

Connector	Cables	Cable Color
MB	1 x ATX 24(20+4)-Pin	Black
CPU	1 x EPS/ATX12V 8(4+4)-Pin
VGA	1 x PCI-E 8(6+2)-Pin x 2
SATA	2xSATA 5-Pin x 3
PERIF/FDD	1 x Molex 4-Pin x 3 + FDD x 1

700 BR Cable Configuration

Connector	Cables	Cable Color
MB	1 xATX 24(20+4)-Pin	Black
CPU	1 x EPS/A TX12V 8(4+4)-Pin
VGA	2 x PCI-E 8(6+2)-Pin x 2
SATA	3 x SATA 5-Pin x 3
PERIF/FDD	1 x Molex 4-Pin x 3 + FDD x 1

Dimensions: 86mm (H) x 150mm (W) x 140mm (L)
Over Voltage Protection, Under Voltage Protection, Short Circuit Protection, Over Power Protection, Over Current Protection, Over Temperature Protection.

BR series Specifications

Safety Information

This unit has no user-serviceable parts inside. Opening the casing presents a risk of electrocution and will void the products warranty EVGA will not be responsible for any result of improper use, including but not limited to, any use of the product's outside of its intended purpose or use inconsistent with the warranty terms available online (Warranty information is available at www.evga.com/support/warranty)
