EVGA 430W, 500W, 600W - Power Supply Manual

Introduction: Price and Performance

Thank you for purchasing an EVGA power supply.

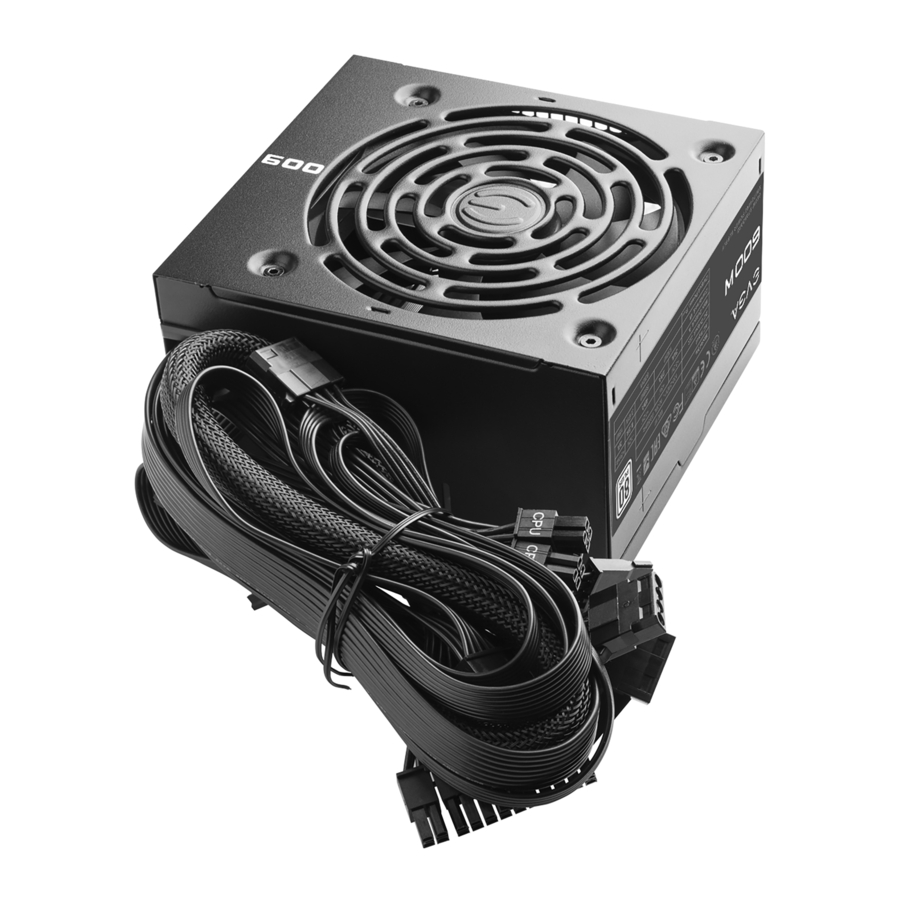

The 430W/500W/600W is a premium quality power supply that meets standard power protections to protect a safe and reliable working environment. Designed for budget gaming or casual media playback these EVGA power supplies are a great choice to power your next project.

Features

CONTINUOUS POWER

The EVGA 430w,'500w/600w power supplies provide steady, continuous power to your components. Continuous Power provides you will receive the full 430W/500W/600W of power to your components. This is the difference you will get out of an EVGA power supply over others that offer only peak-rated performance designs.

SAFETY PROTECTIONS

EVGA power supplies provide a series Of standard safety protections to keep all components protected. In the event of an electrical short that may occur during normal operation, the EVGA 430W/500W/600W power supplies provide safe operation backed by the following safety protections:

• (OVP) Over Voltage Protection
• (UVP) Under Voltage Protection
• (OPP) Over Power Protection
• (SCP) Short Circuit Protection
• (OCP) Over Current Protection
• (OTP) Over Temperature Protection

Installation

1. Remove the power supply from its packaging
2. Use the screws provided with your case to install the power supply into your computer.
   NOTE: It is recommended to install the power supply with the fan facing down. However, if your case places the power supply at the bottom of the case and there are no ventilation holes available, it may be best to install the power supply with the fan facing up for greater efficiency and reliability.

3. Connect the 20+4-pin ATX cable to the motherboard.

4. Connect the 4+4-pin EPS12V cable to the motherboard.

5. Connect the 6/6+2-pin PCI-E cables to your graphic card(s).

6. Connect SATA power cables to all data drives or optical drives. (hard drives, solid state drives, optical drives).

7. Connect the peripheral "Molex" 4-pin connectors for fans, pumps, legacy components and other devices/adapters.

8. Connect the AC power cord to your power supply and to the wall. Check all connections to assure a solid connection and turn the power switch on the power supply to the ON position.
