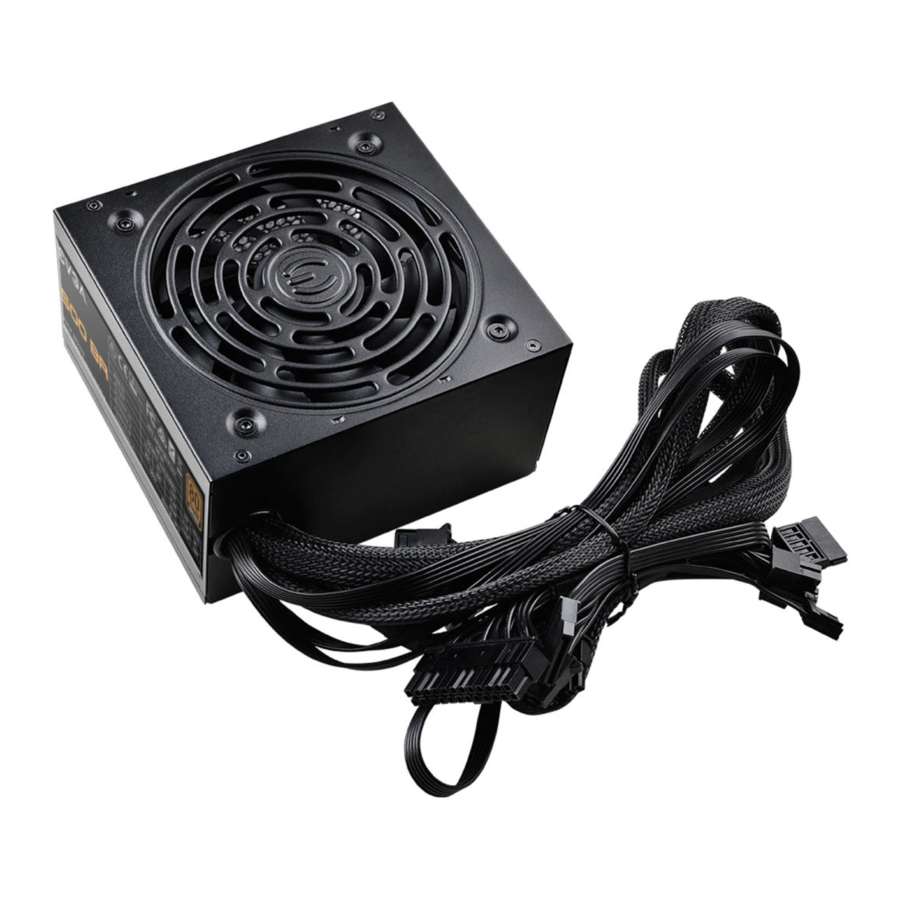

EVGA BRONZE BA Series Manual

Introduction: Premium Power

The EVGA BA power supplies offer an affordable and stylish alternative for those looking to build a safe and efficient system. 80PLUS^® Certified Bronze means the BA power supplies are at least 82% efficient under a standard load, and are built to maintain low electrical ripple and noise during operation. With increased voltage stability on the 3.3V and 5V rails, Active PFC, and a full suite of protections, the EVGA BA power supplies should be at the top of your list to power your next system build.

Features

STABLE POWER
The 450 BA/500 BA/600 BA has outstanding electrical performance with ultra stable voltage and extremely clean power output. This can help you achieve the highest possible overclock (optional) and provide the most stable and reliable power to all components. The 450 BA/500 BA/600 BA also provides up to 85% (115VAC) / 85% (220VAC~240VAC) efficiency and is 80 PLUS^® BRONZE certified.

TOP QUALITY PROTECTIONS
The 450 BA/500 BA/600 BA comes equipped with the most comprehensive protection set possible, including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power
Protection (OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), and Over Current Protection (OCP). This product is also covered by a 3-year warranty and EVGA's legendary customer service and support.

Installation

1. Remove the power supply from its packaging.
2. Use the screws provided with your case to install the power supply into your computer.
   NOTE: It is recommended to install the power supply with the fan facing down. However, if your case places the power supply at the bottom of the case and there are no ventilation holes available, it may be best to install the power supply with the fan facing up for greater efficiency and reliability.


3. Connect the 20+4-pin ATX cable to the motherboard.

4. Connect the 4+4-pin EPS12V cable to the motherboard.


5. Connect the 6/6+2-pin PCI-E cables to your graphic card(s).
   NOTE: Do not attempt to plug an 8-pin PCI-E cable into a 6-pin connector without first detaching the two extra pins.

6. Connect SATA power cables to all data drives or optical drives.
   (hard drives, solid state drives, optical drives)

7. Connect the peripheral "Molex" 4-pin connectors for fans, pumps, legacy components and other devices/adapters.

8. Connect the AC power cord to your power supply and to the wall. Check all connections to assure a solid connection and turn the power switch on the power supply to the ON position.
