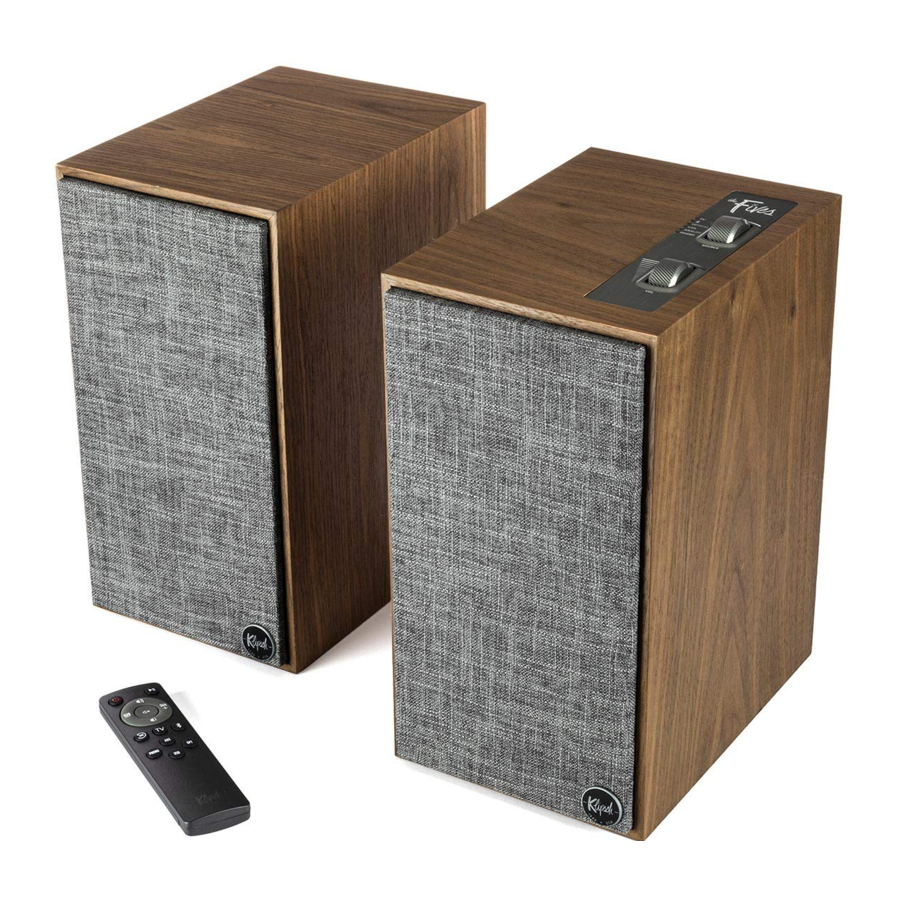

Klipsch THE FIVES Manual

INSIDE

RIGHT SPEAKER (ACTIVE)

1. LED Source Indicator
2. Phono/Line Switch
3. Volume/Source Control
4. Phono Input
5. Auxiliary 3.5mm Input
6. Subwoofer Output
7. Optical Input
8. USB Audio Input
9. Secondary Speaker Out
10. Ground Screw Terminal
11. Service Port
12. HDMI ARC

SETUP

SELECT SOURCE

CARE AND CLEANING

* USE MICROFIBER CLOTHS ONLY

CONNECTIONS - HDMI-ARC

(IF TV HAS NO HDMI-ARC OUT SEE NEXT PAGE)

A Basic TV HDMI input will not transfer the TV audio signal to the Speakers. The Fives will only receive TV audio through HDMI-ARC (with CEC turned ON), Optical or Analog connection.

CONNECTIONS - TV

* Your TV will need to be set to PCM (or Stereo Only)

CONNECTIONS - COMPUTER

CONNECTIONS - TURNTABLE

REMOTE

IR REMOTE CONTROL CODES

BLUETOOTH ® WIRELESS TECHNOLOGY

Example only. Your device may differ.

SUBWOOFER OUTPUT

LED SOURCE INDICATOR

DYNAMIC BASS EQ

Dynamic Bass EQ applies loudness correction to automatically adjust low frequency levels as volume changes.

For best results, increase input source volume to maximum.

DISABLE / ENABLE DYNAMIC BASS EQ

ENABLE

1. Hold 3 Seconds

2. Flashes x2

   ENABLED

DISABLE

1. Hold 3 Seconds

2. Flashes x1

   DISABLED

FACTORY RESET

REMOTE CONTROL CODES

(FOR UNIVERSAL OR CABLE REMOTES)

* MUST HAVE AUDIO/AUX BUTTON OR AUDIO·SB BUTTON

** RED CENTER BUTTON

HEX CODES - SET 1

HEX CODES - SET 3

HEX CODES - SET 4

TROUBLESHOOTING

For more in-depth information and troubleshooting instructions visit Klipsch.com

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.
